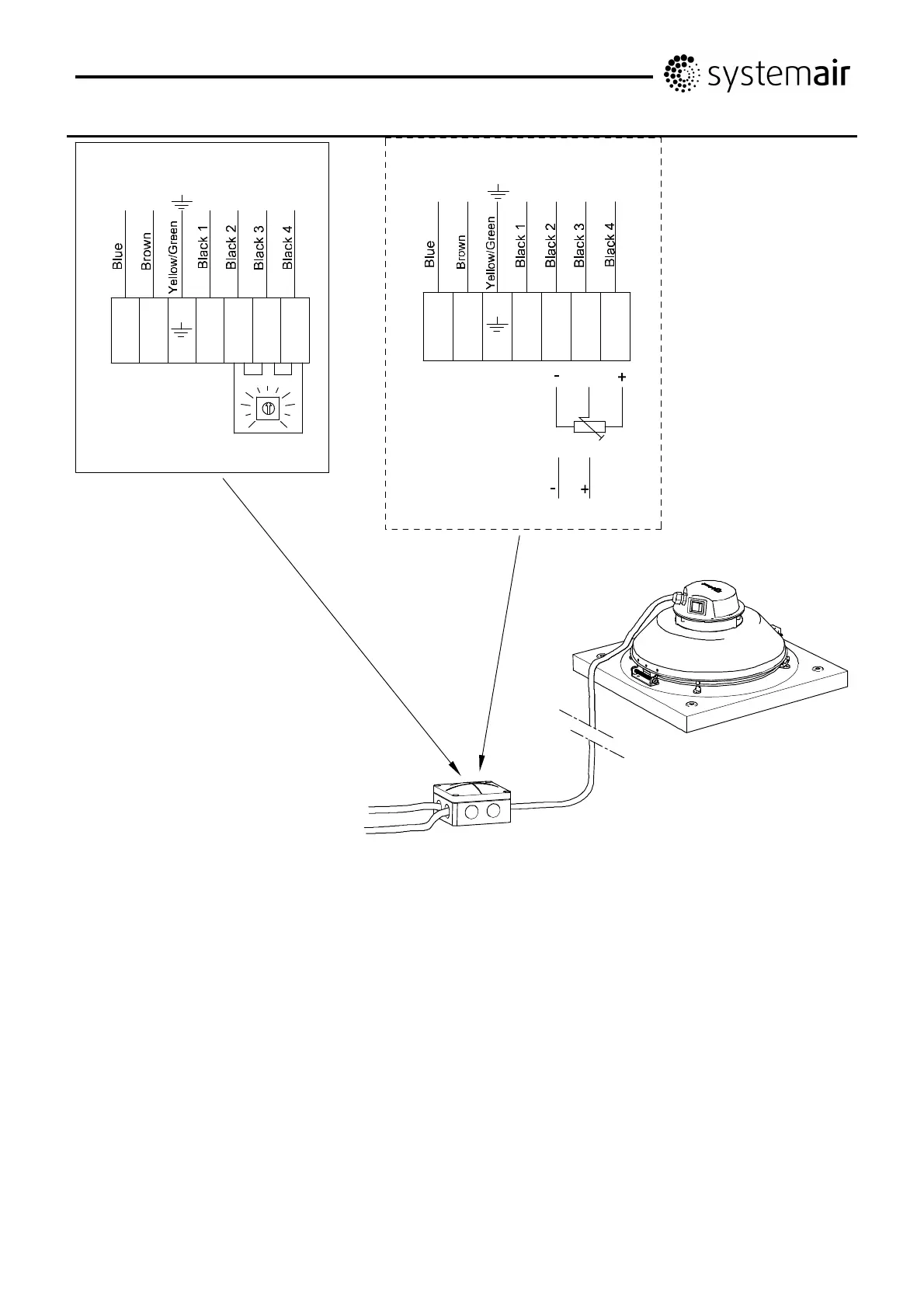

SystemAir K EC Series - TFSRTFSK EC Wiring Diagrams; TFSRTFSK EC Internal Potentiometer Wiring; TFSRTFSK EC External Potentiometer Wiring

3
206268 Systemair AB
TFSR/TFSK EC:
230 V 1~
Ext. Pot/0-10V DC
+
-
0
10
1=Min
5
L
N
230V 1~
NL 1 2 3 4
Internal potentiometer
0-10V DC
010
NL 12 34
External potentiometer
230V 1~
N
L
10K
Optional
