General |
1
1 General
NaviPad is Systemair's user interface with a 7” capacitive touch screen. The user interface provides operation informa-
tion about the connected air handling units (AHUs) and allows you to control all functions. You navigate by pressing the
touchscreen, to activate a function, change setting or by reading values in real time.
After 5 min inactivity the screen activate sleep mode, you return to the screen you left by pressing the touchscreen.
After additional 10 min. inactivity you return to the system overview dashboard (figure 3) and have to log in again.
Editable text and values are shown in blue and differs depending on user level.
Important
The air handling unit and the NaviPad has to be connected on a local network with the same IP subnet

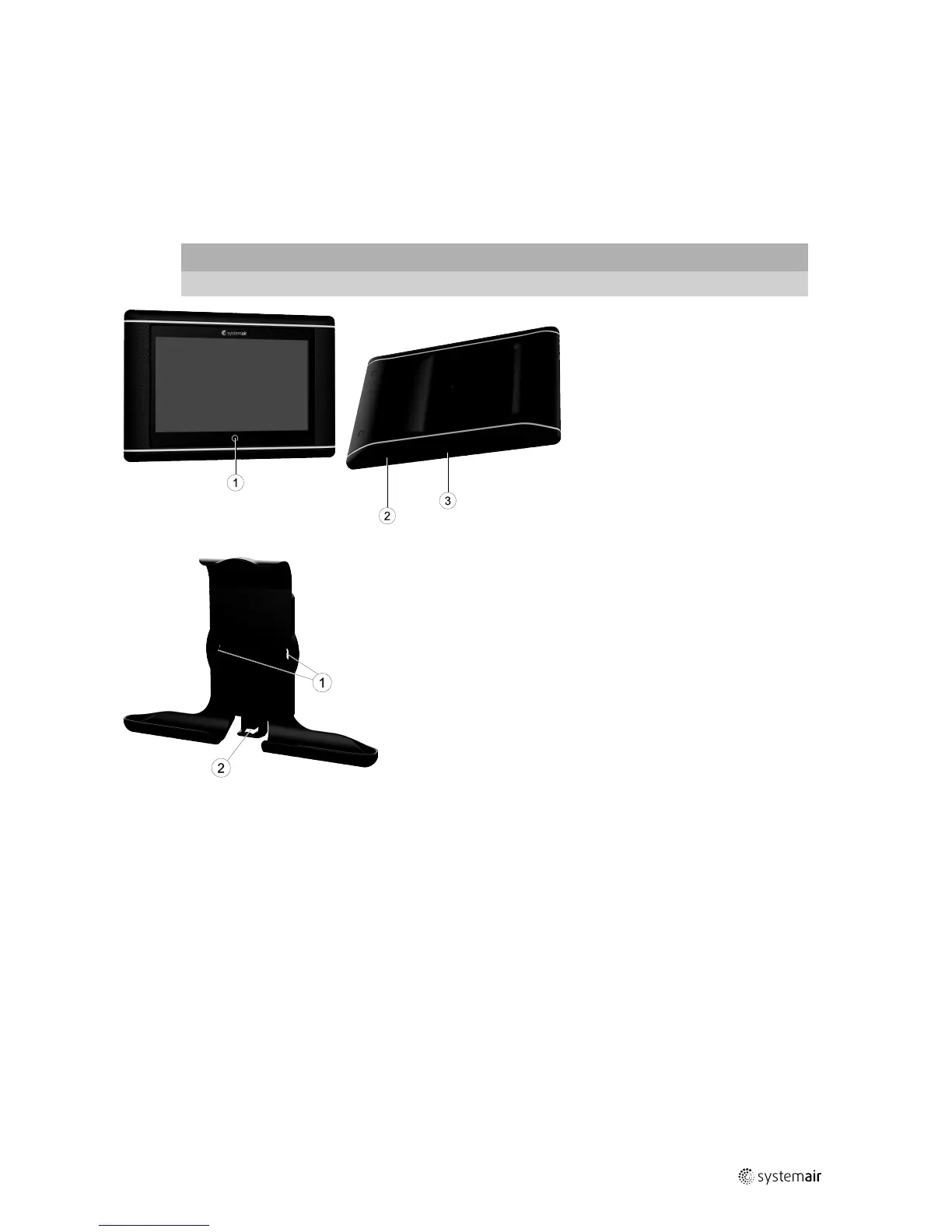

Fig. 1 (1) Home button, (2) USB connection, reboot button, (3) power supply and communication
Fig. 2 Holder for NaviPad, (1) fixing points, (2) cable hook
Attach holder to air handling unit with enclosed screws (wall mounting is also possible, use fastenings suitable to the walls structure).
151671 | A002
