Installation |
7
Note:
The drainage connection is plugged in the bottom of the unit at delivery. To use the drainage: remove the
rubber seal and connect the drainage pipe. Connect the drainage pipe to the sewer. The water can not be
led straight to the sewer without a water trap.
5.4 Outdoor Air Intake Location Recommendation
Recommended installation location for the outdoor air intake is the northern or eastern side of the building and with a
distance to openings for discharge of stale ventilation air, kitchen ventilator, central vacuum system, waste water drain-
age and other pollution sources like exhaust from traffic, etc. Exhaust air should ideally be led via a roof cowl to the out-
side and with a good distance from the outdoor air intake, windows, etc.
5.5 Access to Power supply
The SAVE VTR 500 is supplied with approximately 2 m cable and plug for 230V, single phase earthed connection.
Make sure a power outlet is reachable by the plug.
6 Installation
Important
• The device may only be installed by qualified, instructed and trained personnel. The persons must know
the relevant safety directives in order to recognise and to avoid risks.

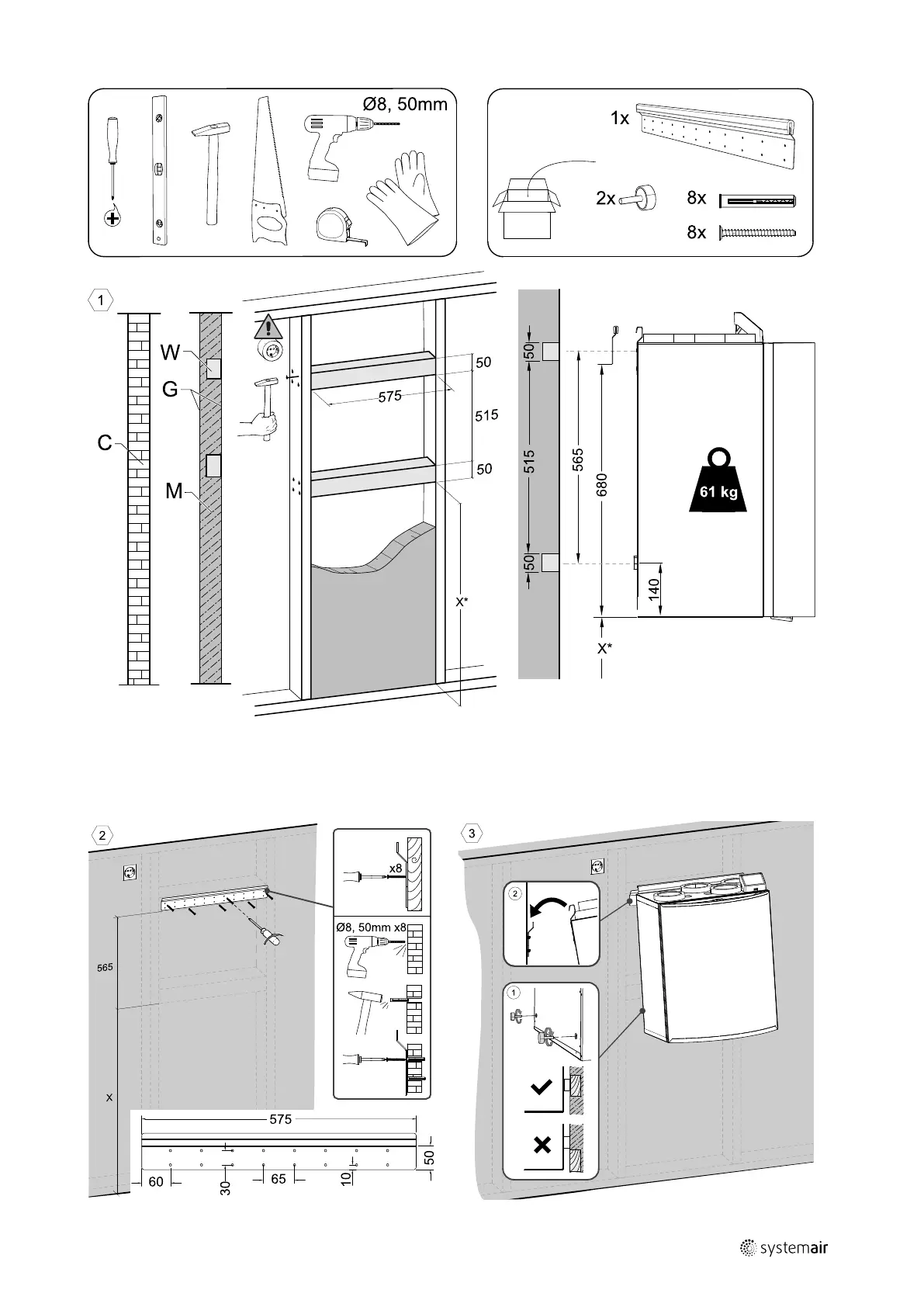

C — concrete/bricks, W — wood block, G — gypsum, M — mineral wool
X* — adaptable height according to needs.
254522 | v01
