| Type label
GB
3 Type label
Before calling your service representative, make a note of the specification and production number from the type label,
which can be found on the side of the units, next to the external connections.

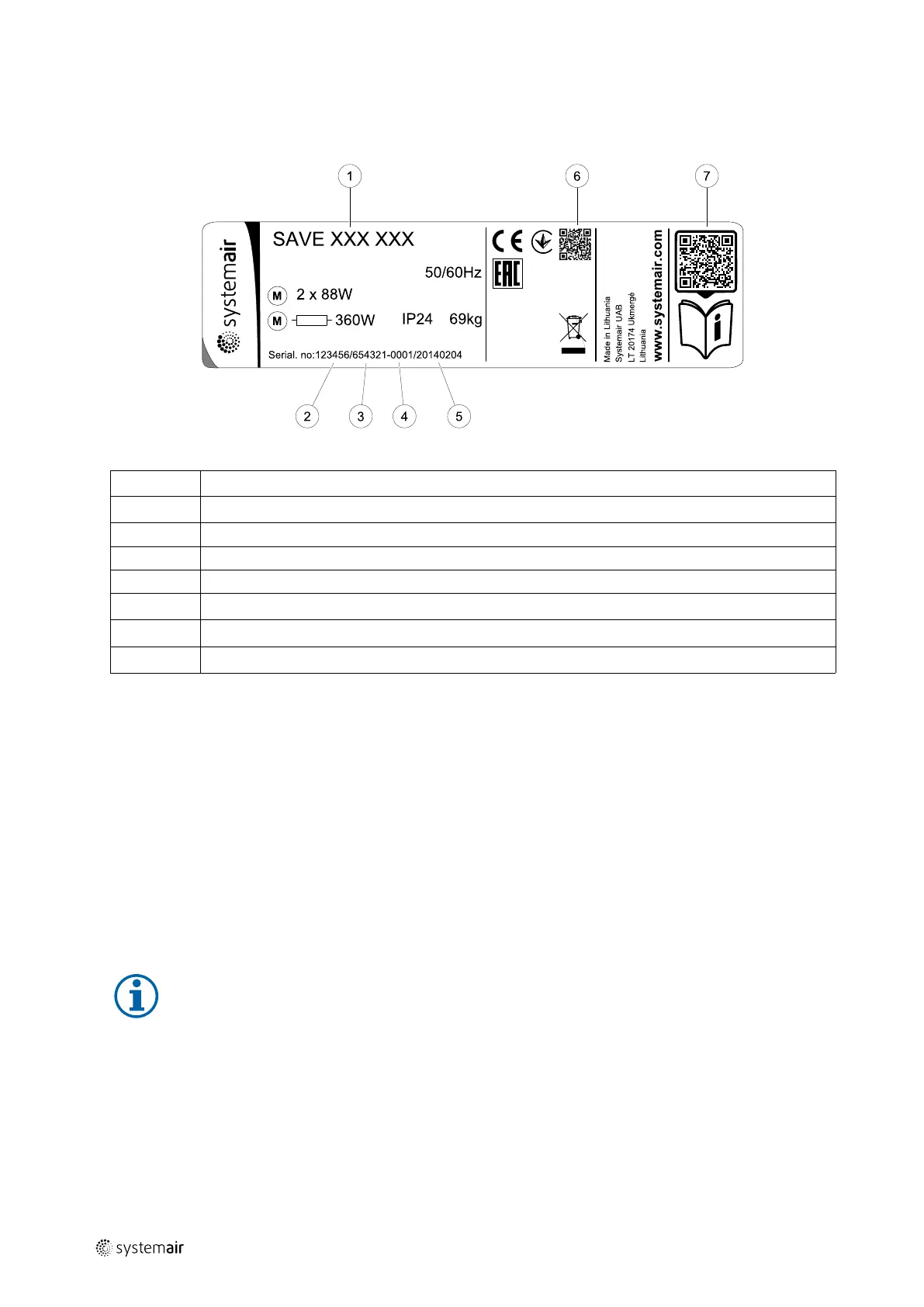

Fig. 1 Type label
Position Description
1
Product code (product specification)
2
Product item number
3
Production order number
4
Serial number
5
Production date (YY.MM.DD)
6
QR code for manufacturing order (MO) number and software version
7
QR code for the spare parts list and documentation
4 Product information
4.1 General
SAVE VTR 700 is a heat recovery ventilation unit, with a built in rotating heat exchanger. The SAVE VTR 700 is suitable
for houses with up to 600 m
2
heated living area.
The SAVE VTR 700 supplies filtered outdoor air to residential areas and extract air from bathroom, kitchen and wet
rooms.
4.2 Left and Right models
There are two model options, right (R) and left (L) model. The different models are recognized by the placing of the in-
ternal components and the supply air outlet, which is situated on left side of the unit on an (L) unit and on the right hand
side on an (R) unit.
Note:
This document describes a right (R) model. The inside of a left (L) model is mirrored.
5 Configuration
5.1 General
SAVE VTR 700has a modern touchscreen LCD control panel, simply known as HMI — Human Machine Interface. The
touchscreen display provides information about current state of the unit and allows you to control all system functions.
Settings are done by touching the icons or options. The touch screen is sensitive and it is not necessary to press too
hard.
