Set point compensation allows saving energy when external temperature values are particularly unfavourable
considering the demands of the room to be controlled. The compensation can also be used to increase the comfort.
Compensation varies the control set point according to external temperature. This function is available with the
external air temperature sensor.
Set point compensation differs between winter mode and summer mode in terms of the type of action and
the parameters employed.
3.12. SET POINT COMPENSATION

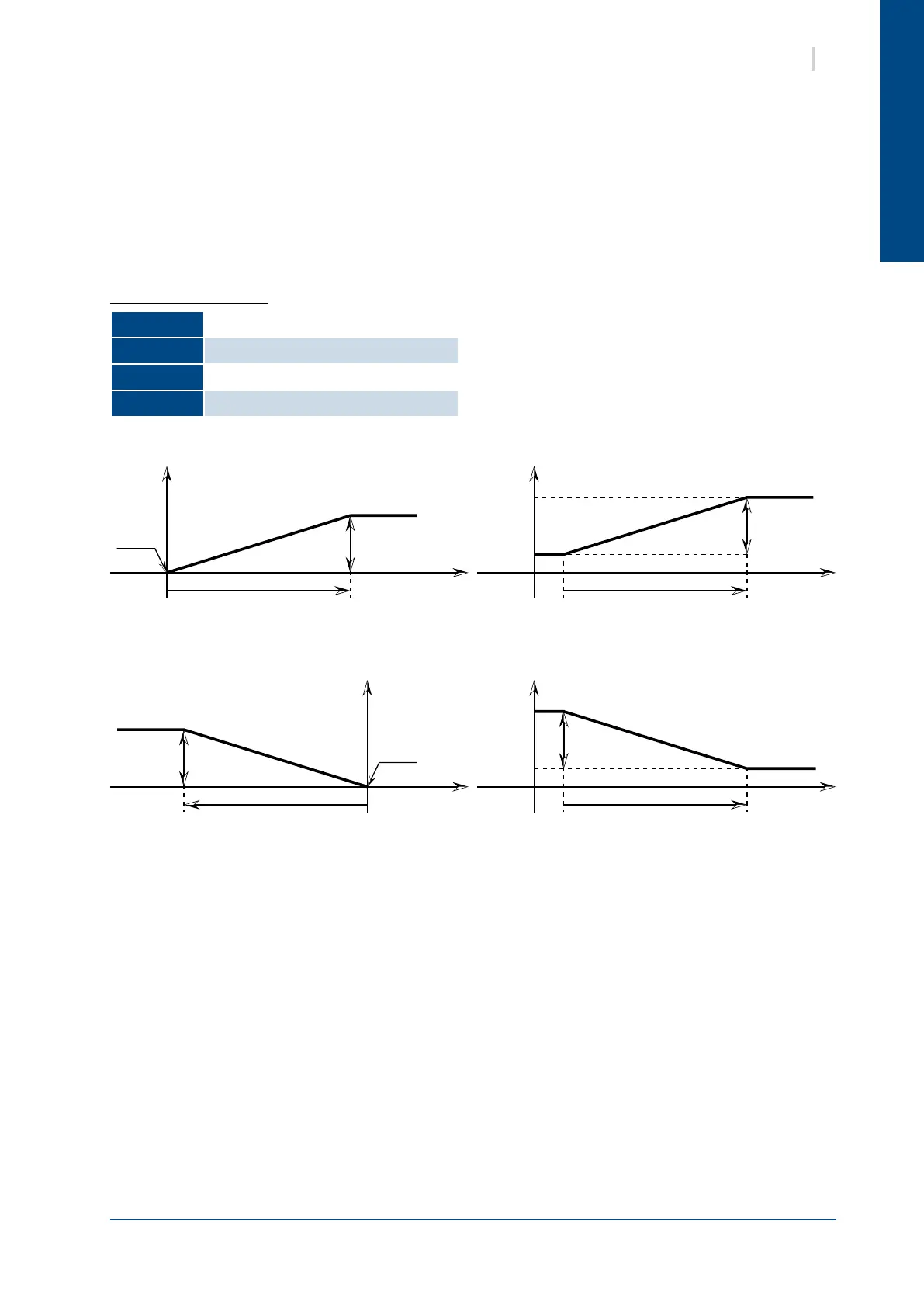

Compensation - Positive differential
Example with manual Cooling setpoint = 24°C
Compensation - Negative differential
Example with manual Cooling setpoint = 24°C
Summer Compensation
STPCOMP
Compensation set point [°C]
COMPM
Maximum compensation [°C]
DIFFC
Compensation differential [°C]
T
EXT
External temperature [°C]
