8
| Installation
9 Installation
Install Topvex SR, TR preferably in a separate room, for example storage room, laundry room or attic.
If it is necessary to install the air handling unit outdoors, Topvex SR ODK versions are weather protected and has the
control cabinet built-in in the air handling unit.
Verify that all ordered equipment are delivered before starting the installation. Report any deviation from the ordered
equipment to the supplier of the Systemair products.
On location for installation

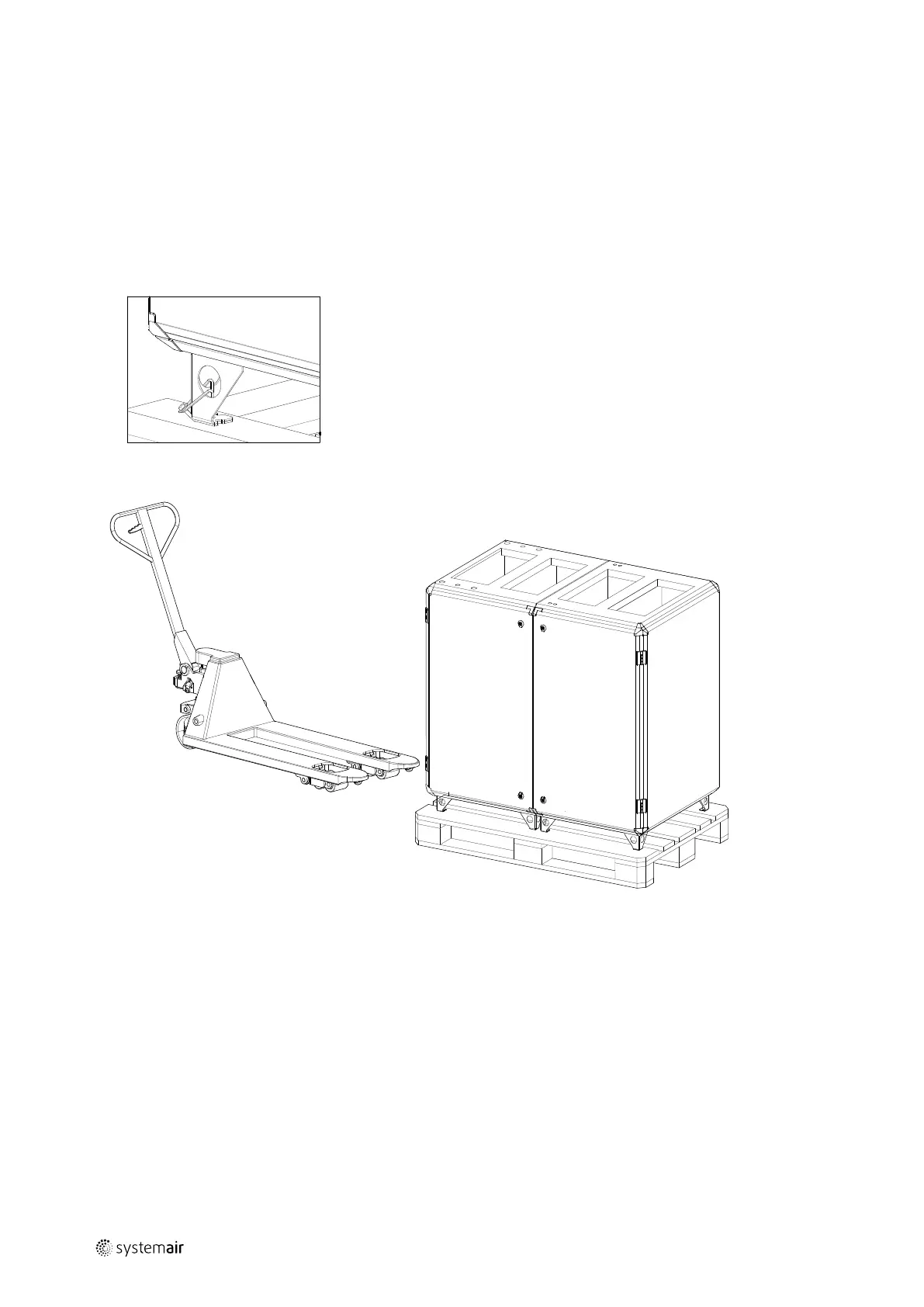

• Loosen the screws fastening the air handling unit to the pallet.
Fig. 8
• Unload the air handling unit, use a pallet lift on the short side with enough length on the forks.
Fig. 9
254050 | A001
