13.3.1 Connect NaviPad

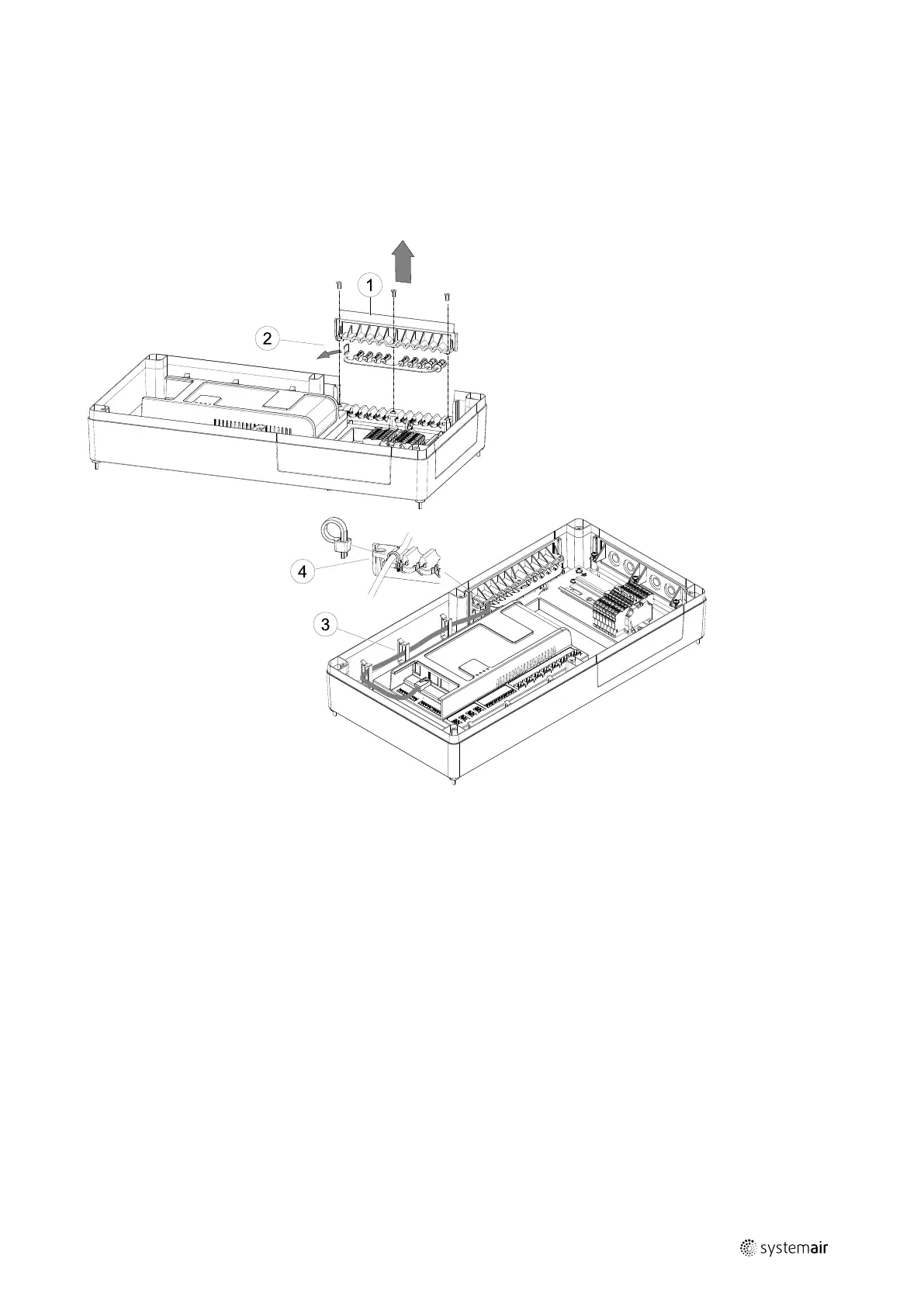

Open the control cabinet figure 25. Unscrew the connection lid (1) and pull up the lid and comb with plugs that seals
the connection area. Brake loose the plug required to connect NaviPad (2). This also apply for other connections to the
control unit.
Connect NaviPad to the HMI port in the control unit in Access control cabinet. Lead the NaviPad cable in the cable clips
(2) and fasten with a cable tie to the strain relief (3). Lead also other cables in the cable clips and fasten with cables
ties.
Fig. 28
