22
|
Access
13.3.2 Mount NaviPad holder
NaviPad control panel including 3 m cable, holder and screws for mounting are enclosed at delivery. Wall mounting is
also possible, use fastenings suitable to the wall’s structure. Mount the holder on suitable location, max distance from

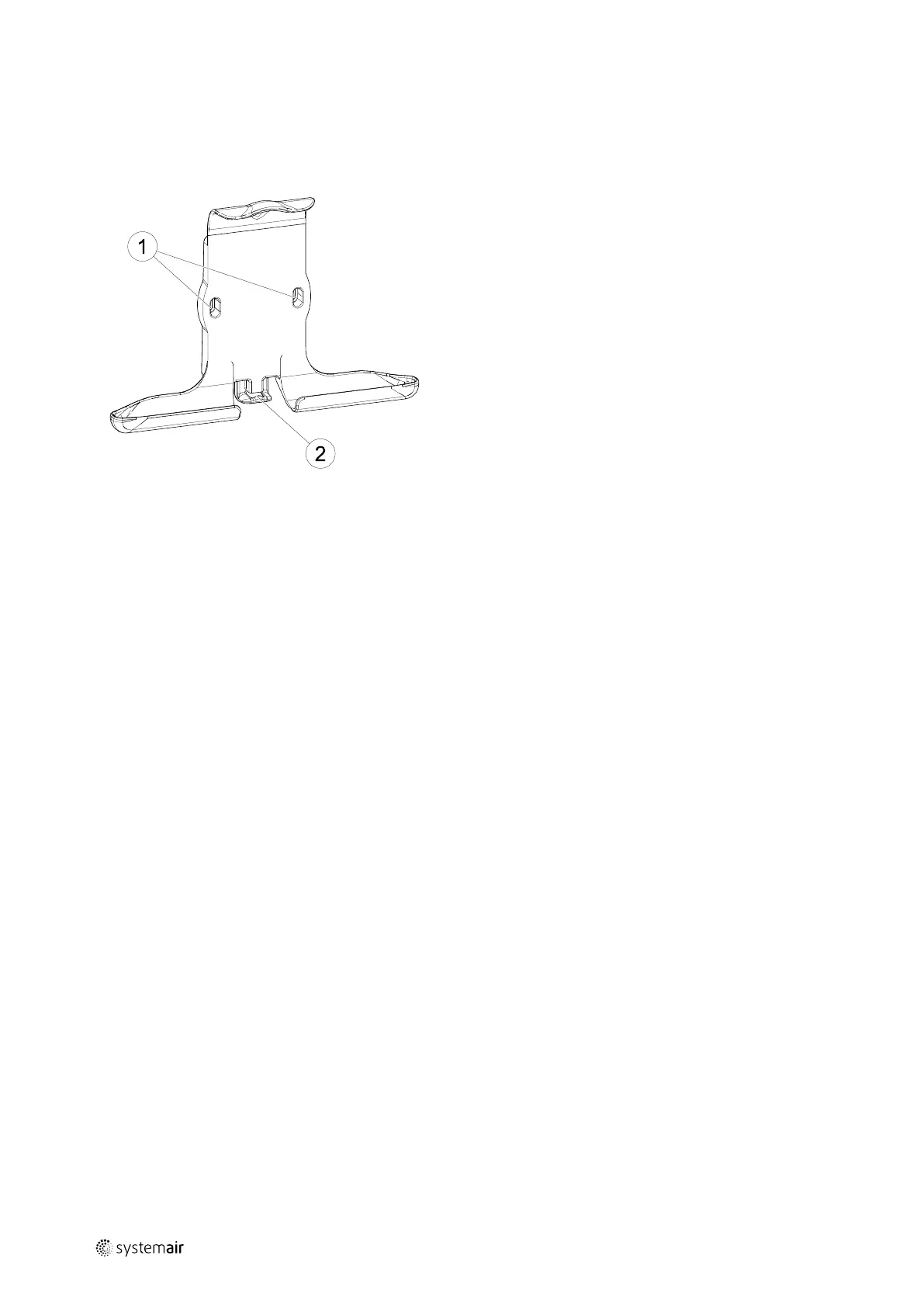

control unit 100 m. Use the holder as a drilling template (1). Possible to fasten the NaviPad's cable on the holder's hook
(2).
Fig. 29
254050 | A001
