| Transport and storage
4.2 Using lifting frame
Warning
• Secure the lifting straps on the lifting tubes.
• Do not compress the air handling unit's chassi with the lifting straps.

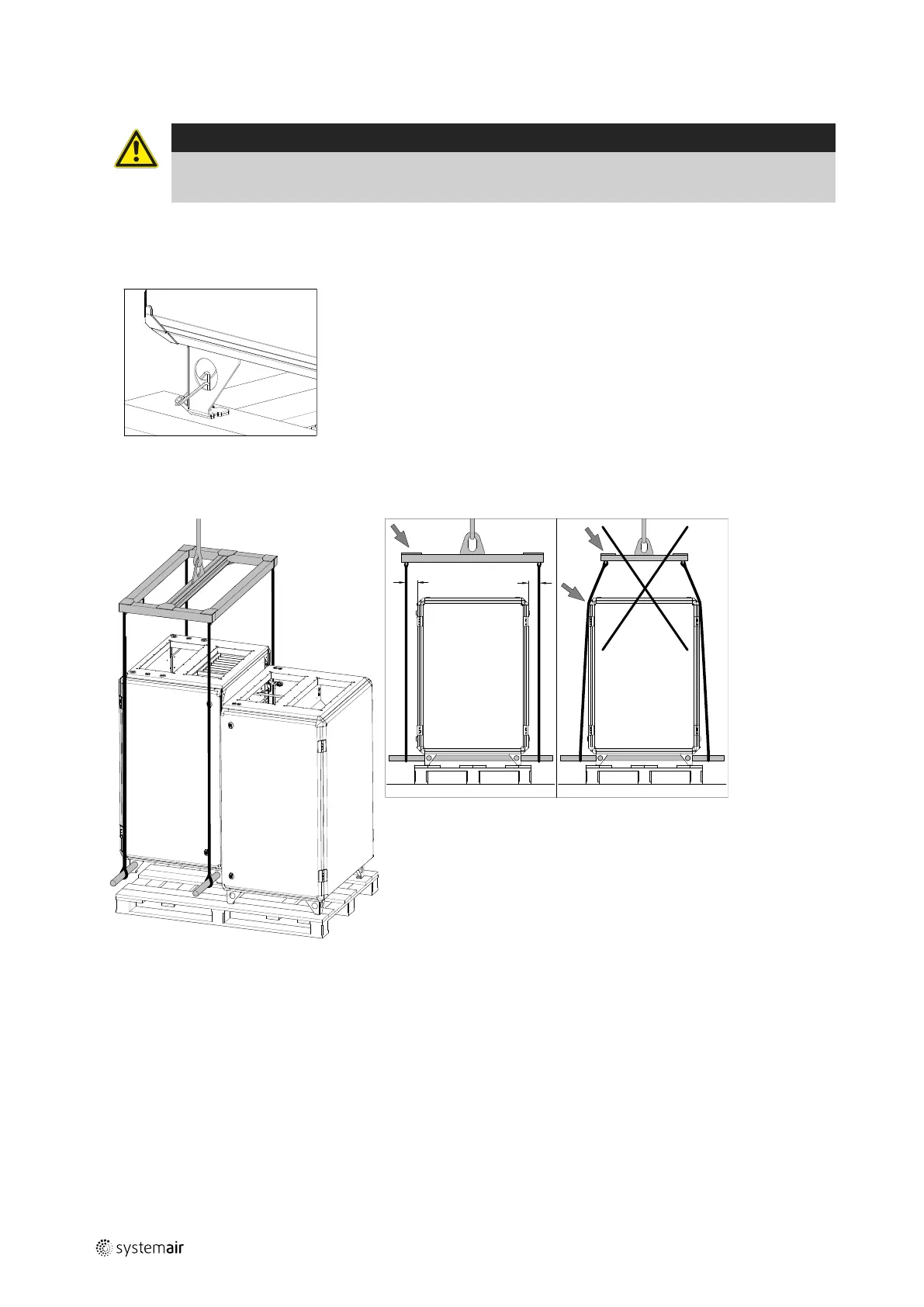

Use a lifting frame connected to lifting tubes in the air handling unit's feet. Use lifting straps with sufficient lifting
capacity.
1. Loosen the screws attaching the air handling unit to the pallet
Fig. 2
2. Place the lifting tubes in the outer feet of the air handling unit.
3. Attach the lifting straps to the lifting tubes.
Fig. 3 Lift the sections separate for size Topvex SR60–Topvex SR70 and Topvex TR60–Topvex TR80.
5 Transport and storage
The air handling unit is fastened on the pallet. If possible keep the air handling unit fastened on the pallet until the air
handling unit is on installation location.
5.1 Storage
Store the unit covered from dust, rain and snow. Keep duct connections covered during storage and installation.
6 Unpacking
Remove the plastic covering the air handling unit.
