SystemAir Topvex SR - Page 15

Installation |
11
Remove back panel
1. Remove the caps covering the hex socket cap screws, 10 pcs.
2. Remove the hex socket cap screws, 10 pcs.
3. Carefully remove the back side.
x10
x10

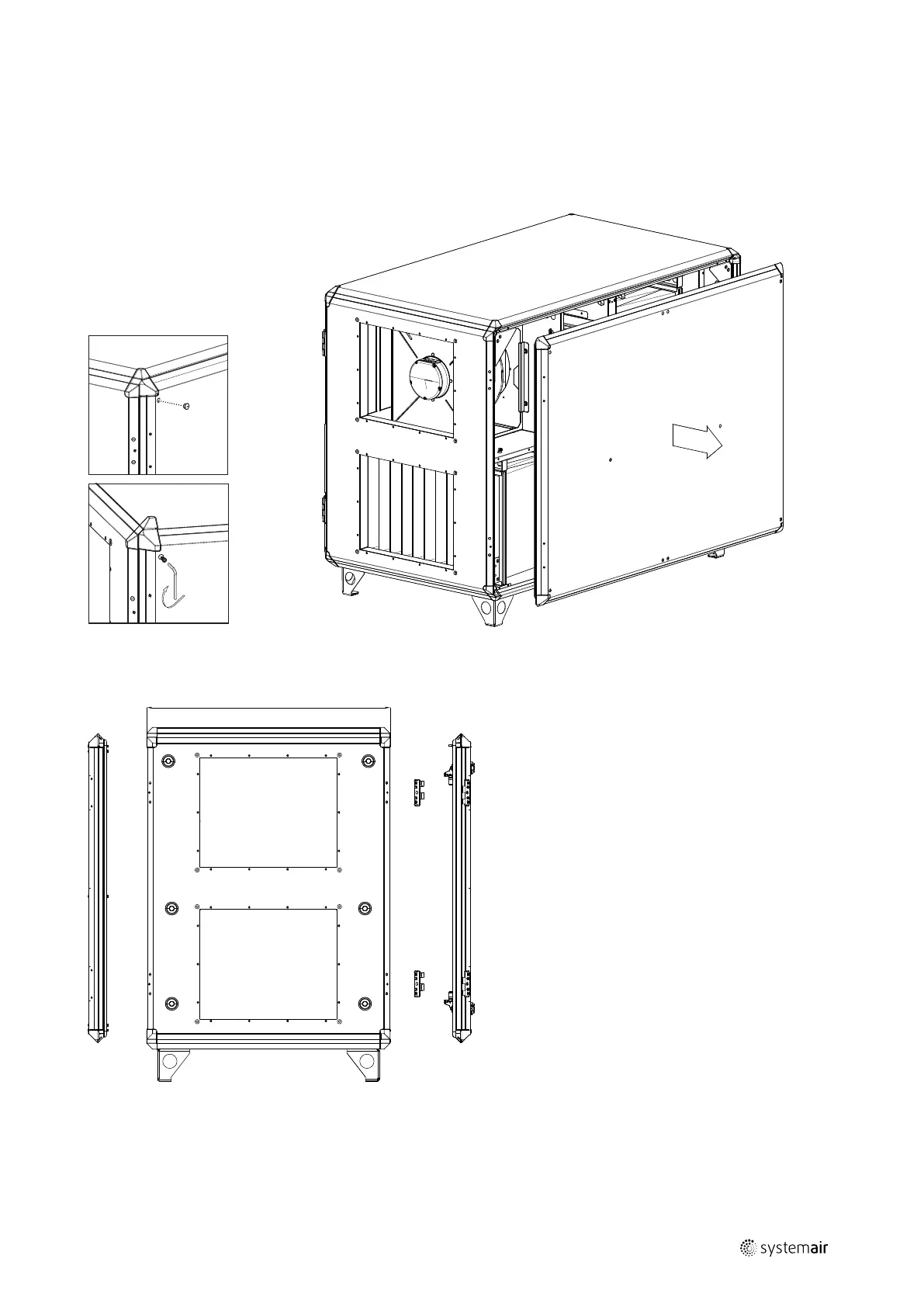

Fig. 12
888 mm
Fig. 13 Dimension with doors, hinges and back side removed.
254050 | A001
