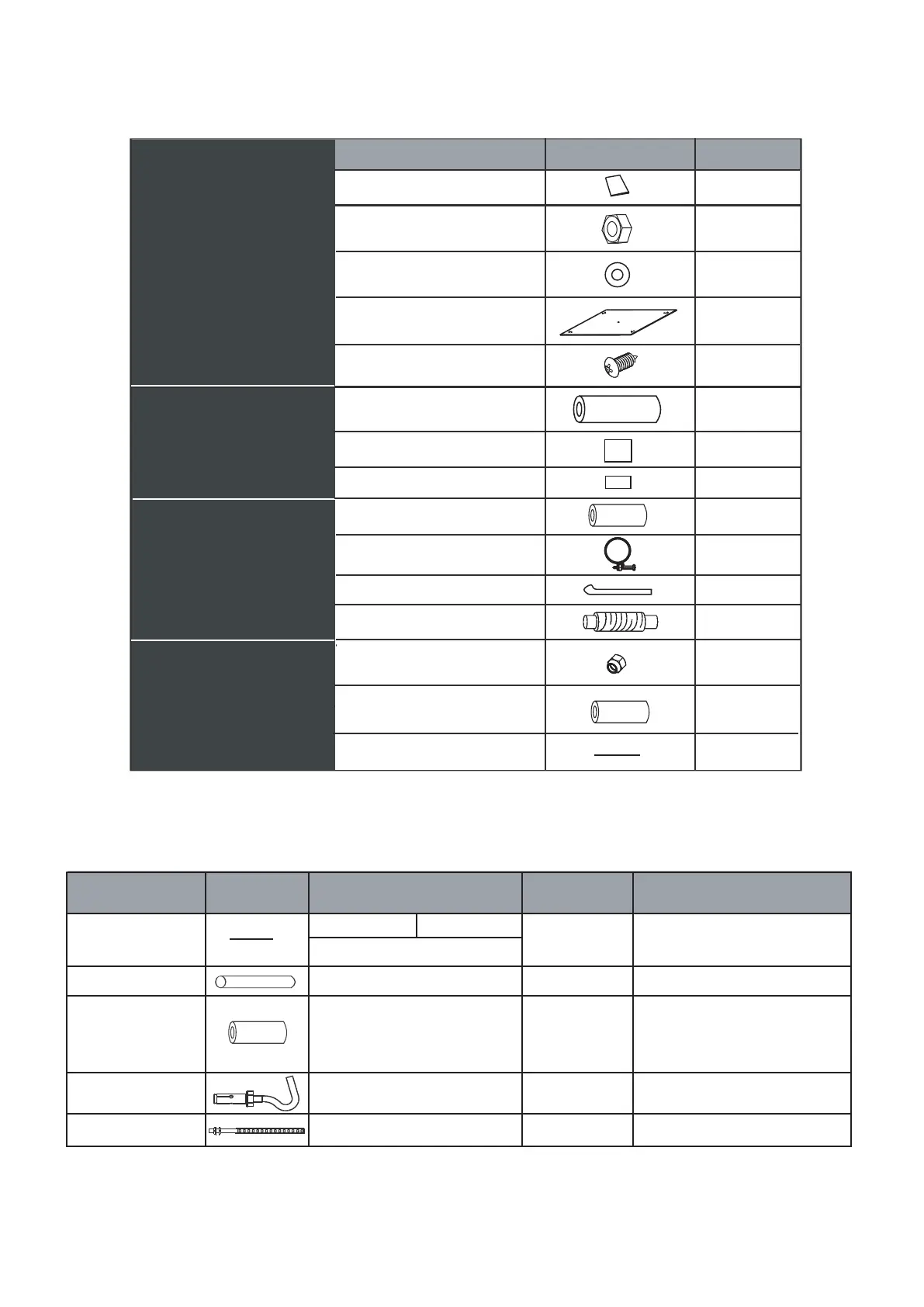

3. ATTACHED FITTINGS AND LOCAL PURCHASED COMPONENTS
Please check whether all the following fittings have been included. If there are some spare fittings, please store them carefully.
Table: 3-1 ATTACHED FITTINGS
12. Flexible hose tube
QUANTITY
INSTALLATION FITTINGS
Tubing & Fittings
Drainpipe Fittings
Others
SHAPE
NAME
15. Connecting wire
6. Soundproof / insulation sheath
9. Outlet pipe sheath
10. Outlet pipe clasp
11. Tightening band
4. Installation paper board
5. Bolt M6
4
1
1
2
1
1
11
1
8
8
1
1
Expansible hook
Installation hook
4
4
NAME
SHAPE
QUANTITY
SPECIFICATIONS
REMARK
Copper pipe
Table: 3-2 LOCAL PURCHASED COMPONENTS
Liquid side pipe
Air side pipe
Refer to Table: 6-1, Table: 6-2
Select according to
actual needs
Used for connecting the indoor unit
refrigerant system and use flexible
copper pipe (T2M)
PVC pipe
Select according to
actual needs
Select according to
actual needs
Used to install the indoor unit.
Used to install the indoor unit.
Heat insulation
casing pipe
The external diameter is about 37-39
mm. The inner diameter is 32 mm
The inner diameter corresponds to
the copper pipe and PVC pipe. The
thickness should be 10 mm (above).
It should be thicker in humid areas.
Used to drain the water in the
indoor unit
Used to prevent condensation
M10
M10
2. Nut
3. Washer
7. Sponge I(250*250*8)
8. Sponge II(60*100*5)
13.
Copper (Use for connecting pi-
pes during engineering installation)
1
1. Installation manual
1
14. Protecting bush
3
