TabTimer Careousel MK3/11 - Page 4

4
FILLING THE DISPENSER
1. Time Discs — three day/me discs are supplied which comprise:
Two printed discs for between 1 - 4 medicine prompts per day (use either side) and one
blank disc for more than 4 medicine prompts per day. The discs should be completed by hand
indicang the medicine mes*. Select the appropriate disc for the number of doses per day.
*NB: Before lling out the day/me discs, calculate which will be the date and me of the
user’s rst dose with the newly lled medicine tray (parcularly if a pharmacy will rell the
tray) and start to the right of the red secon (see gure 4. below). Place the disc on top of
the tray. Secure the disc in place by bending down the four tabs (a spot or two of glue will
secure it further if preferred).
2. Medicine Remove the tray from the dispenser. Starng from the right of the solid red
secon (do not ll this secon), place the correct dosage in each secon of the tray.
Note: if a pill is inadvertently dropped in an incorrect compartment,
a pair of tweezers can be helpful to easily remove the pill.

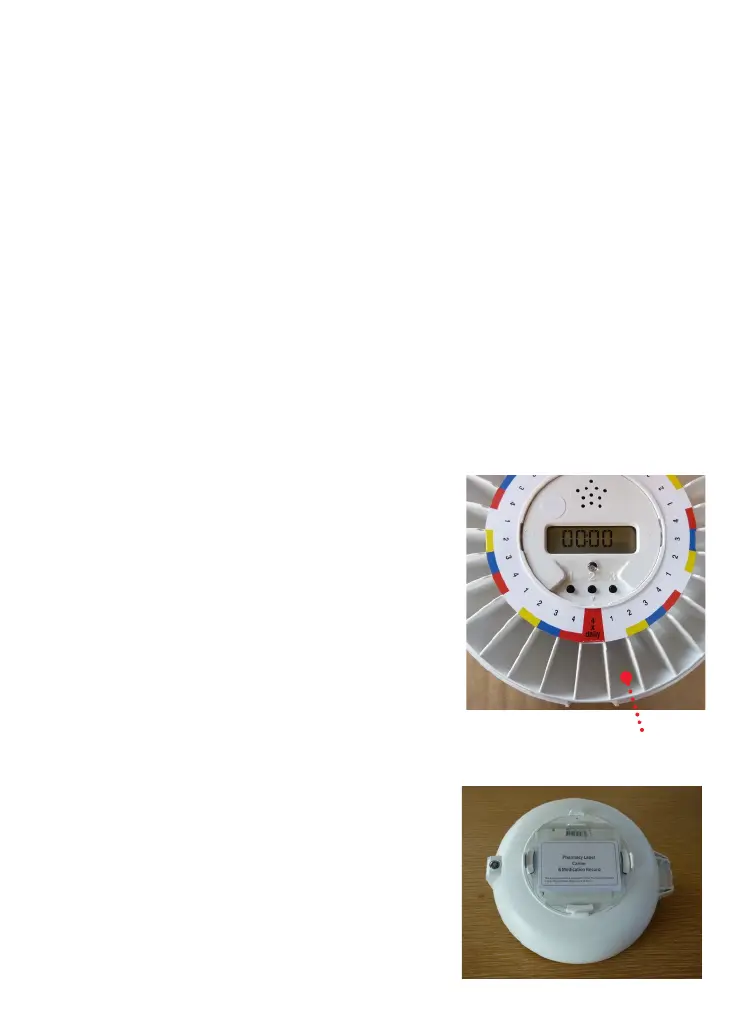

Figure 5.
3. Replace the tray in the dispenser
Place the tray in the dispenser with the red secon showing
in the lid opening, so that when the lid is closed the rst
dose to be taken is to the right of the lid opening. At the
next alarm me the tray will rotate one secon clockwise
and make available the correct medicine. (See gure 4.).
Note: To avoid damaging the mechanism, the medicine
tray must always be reposioned by liing it out and then
lowering directly into the case in the correct posion.
Do not force the tray to rotate.
4. Complete the pharmacy label carrier
Remove the re-posable adhesive pad cover on the
back and sck the pharmacy label carrier to the
baery case cover. Slide the plasc cover into
posion to protect it. (See gure 5.).
Note: Re-usable spare trays with lids and me discs
can be purchased to allow pre-lling.
First Dose
Figure 4.
