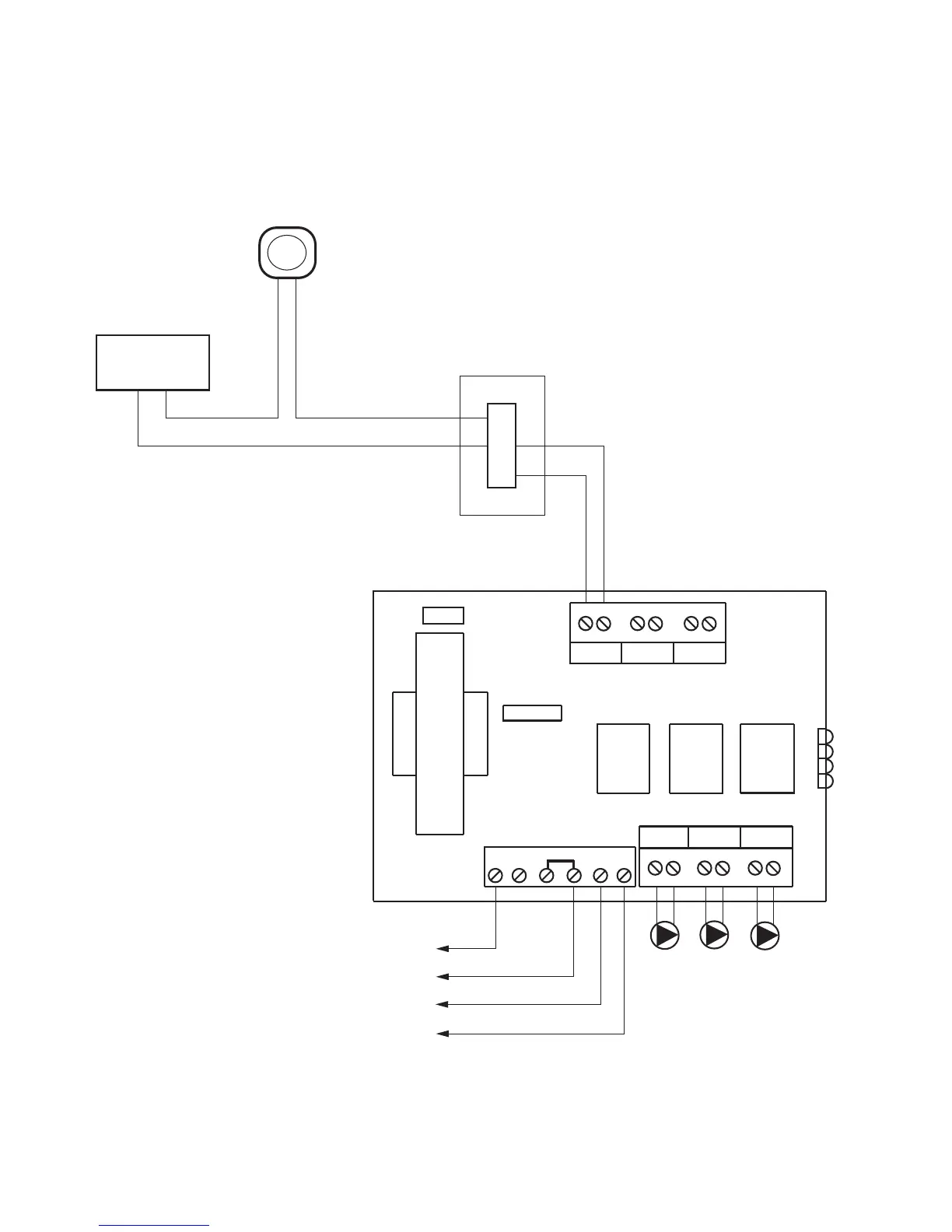

570 Zone Valve to Switching Relay
SR 503
ZONE1 ZONE2 ZONE3
24 VAC
POWER
FUSE 1 AMP
120 VOLT
CIRCULATORS
ZONE1 ZONE2 ZONE3
JUMPERS
N P ZC H X ZR
1
X
2
THREE ZONE SWITCHING RELAY
WITH OPTIONAL PRIORITY
ZONE 2
POWER
ZONE 1
ZONE 3
TO: 120 VAC POWER (NEUTRAL)
TO: 120 VAC POWER (HOT)
TO: "TT" ON AQUASTAT CONTROL
TO: "TT" ON AQUASTAT CONTROL
T
1
2
3
24 VAC
TRANSFORMER
THERMOSTAT
55
