Technical Data
PERFORMANCE DATA
Flow Range ................................................... 0 - 7.5 GPM
Head Range .................................................. 0 - 15.5 Feet
Minimum Fluid Temperature .......................... 32°F (0°C)
Maximum Fluid Temperature ......................... 180°F (85°C)
Maximum Working Pressure ......................... 125 psi
Connections .................................................. 3/4" NPT
C US UL Mark
FOR INDOOR USE ONLY
MATERIALS OF CONSTRUCTION
Casing (body) ................................................ Bronze
Stator Housing .............................................. Steel
Cartridge ....................................................... Stainless Steel
Impeller ......................................................... Non-Metallic
Shaft .............................................................. Ceramic
O-Ring & Gaskets ......................................... EPDM
Standard Heat Exchanger ............................. Stainless Steel
Single Wall Design
Optional Heat Exchanger .............................. Stainless Steel
Double Wall Design
ELECTRICAL DATA CHART
Volts ....................................................... 120
Hz ........................................................... 60
Ph ........................................................... 1
Amps ...................................................... 2
RPM ....................................................... 3250
HP .......................................................... 2 @ 1/25
Motor Type ............................................. Permanent Split
Capacitor Impedance
Protected
CONTROL ADJUSTMENT MENU
Mixing Setpoint Temperature ........................ 60° to 185° F
Maximum Temperature Difference
Between Mixing Supply and Return .............. 10° to 70° F, Off
Design Outdoor Air Temperature ................... -60° to 32° F, Off
Design Heating System Supply Water
Temperature .................................................. 70° to 185° F
Maximum Mixing Target Supply .................... 80° to 185° F
Minimum Mixing Target Supply
Fluid Temperature ......................................... 35° to 150° F, Off
Minimum Heat Source Target Supply
Water Temperature ....................................... 80° to 180° F, Off

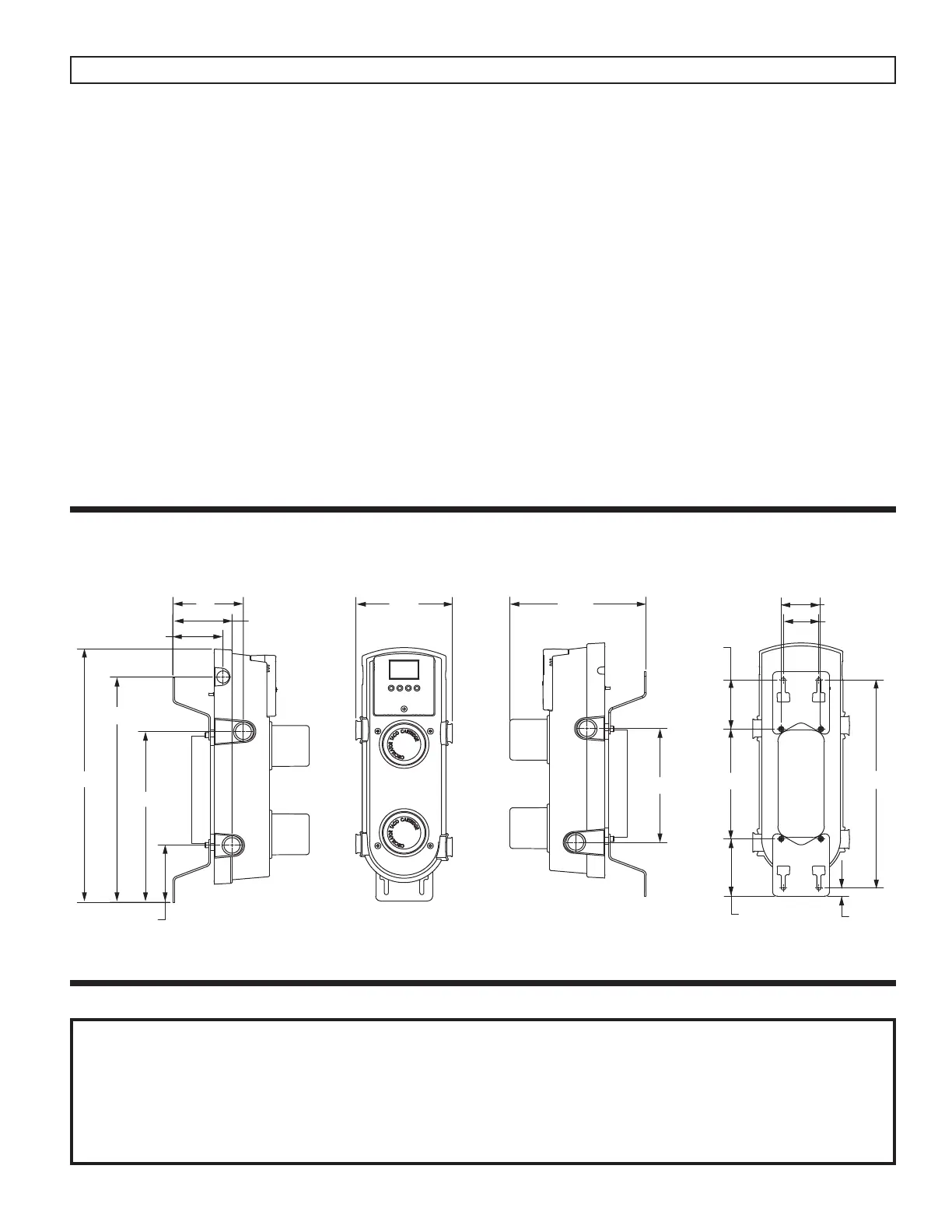

DIMENSIONS & WEIGHT
Model: XPB-1 Ship Weight: 26.5 lbs (12.0 kg)
3
1
⁄
2
"
5"
4
1
⁄
8
"
16
3
⁄
8
"
18
3
⁄
8
"
12
3
⁄
8
"
4
1
⁄
8
"
6
3
⁄
4
"
9
5
⁄
8
"
8
1
⁄
4
"
3
5
⁄
8
"
2
1
⁄
2
"
2
3
⁄
4
"
8"
15
1
⁄
8
"
4
1
⁄
8
"
5
⁄
8
"
CAUTION:
1. The addition of petroleum based fluids or certain chemical additives to systems utilizing TACO equipment voids the
warranty.
2. Use supply wires suitable for 90°C – ATTENTION: Employer des fils d´alimentation adequats pour 90°C.
WARNING:
1. To avoid electrical shock, disconnect the power supply to the circulator and the main electrical unit.
2. Do not use in swimming pool or spa areas; pump has not been investigated for this application
