tae TA-05/C - Device Layout

Instrucon & Operang Manual
TA-05/C
ETA-05C.PMD PT
Misprints and technical changes reserved
TAE Antriebstechnik
12
Copyright © by TAE Antriebstechnik

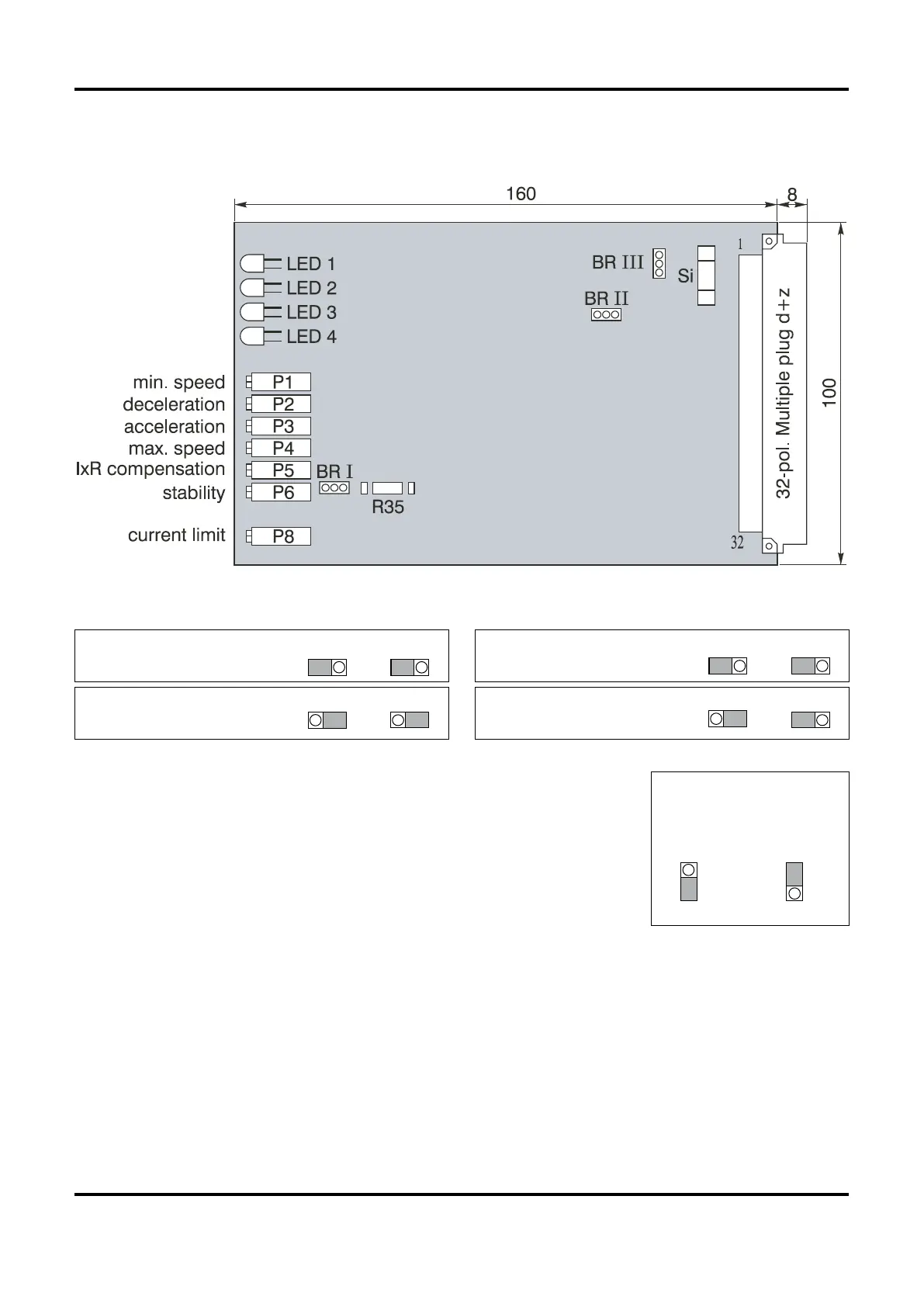

9. Layout
Armature feedback
TA-05/C-ISO Art.-No. 10091 F insulated
BRI
Tachometer feddback
BRI
BRII
BRII
external internal
BRIII
Armature feedback
TA-05/C-Sh Art.-No. 10092 F with Shunt
BRI
Tachometer feddback
BRI
BRII
BRII
RUN
