11. Spare Part List
31343-00 Varistor 275 LA
33301-00 TAE firing circuit 33301
33503-00 Diode BY255
34221-00 SCR bridge 20 Amp. L413F
34459-00 Fuse 20 x 5 super fast 10,0 A
35852-A0 Multiple plug 32pol. 6 A
36360-00 Firing circuit transformer IT243
36495-C0 Current transformer CSLA1CD
58000-Q0 Transformer BV 5005 230V

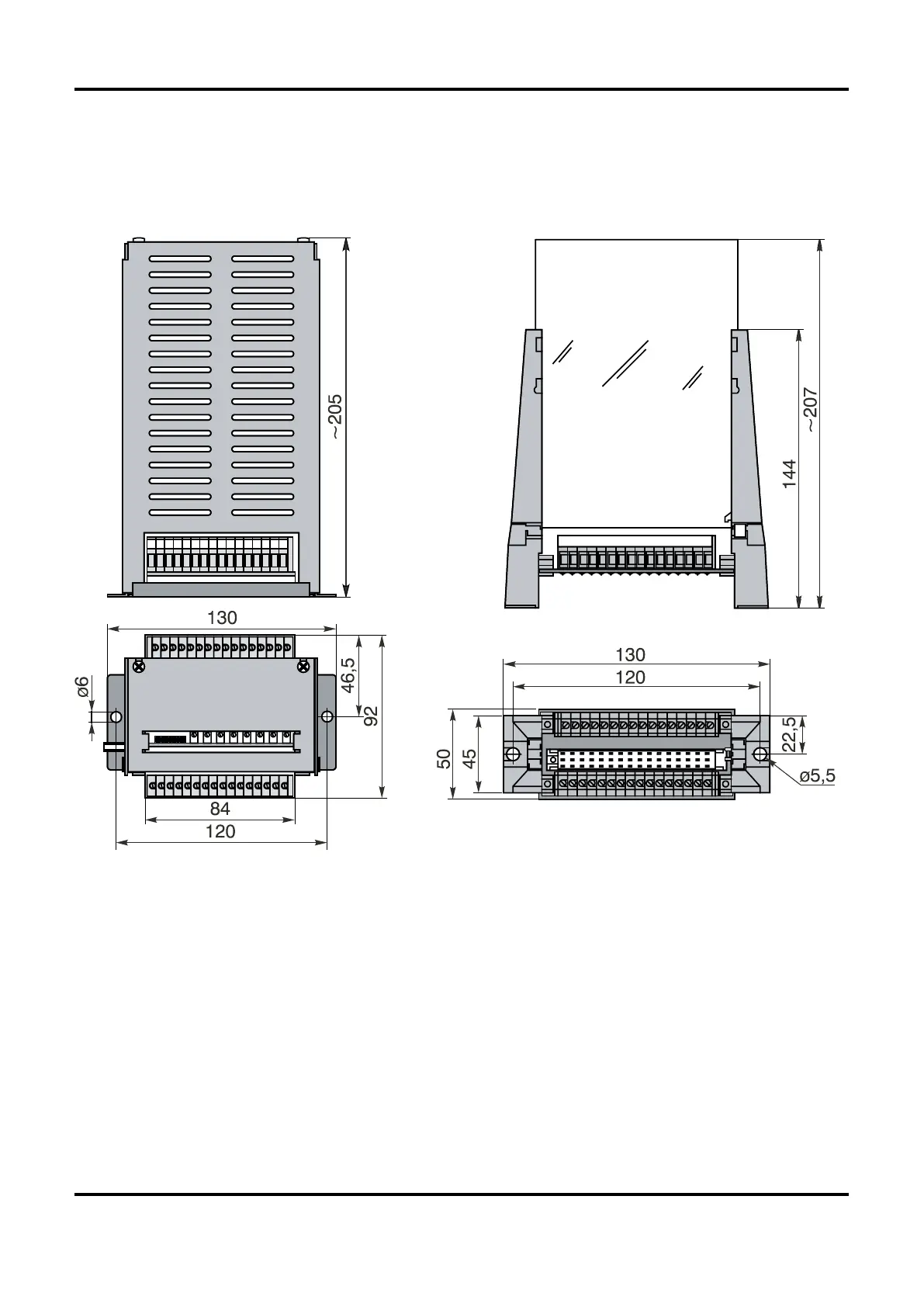

10. Dimensions EMC-Casing & Plug-in frame
2
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
2
p
4
6
8
10
12
14
16
18
20
22
24
26
28
30
32
EMC-Casing
Plug-in frame
