3.4 Introduction To Servicing M2000-00
31/10/96 Copyright TEL

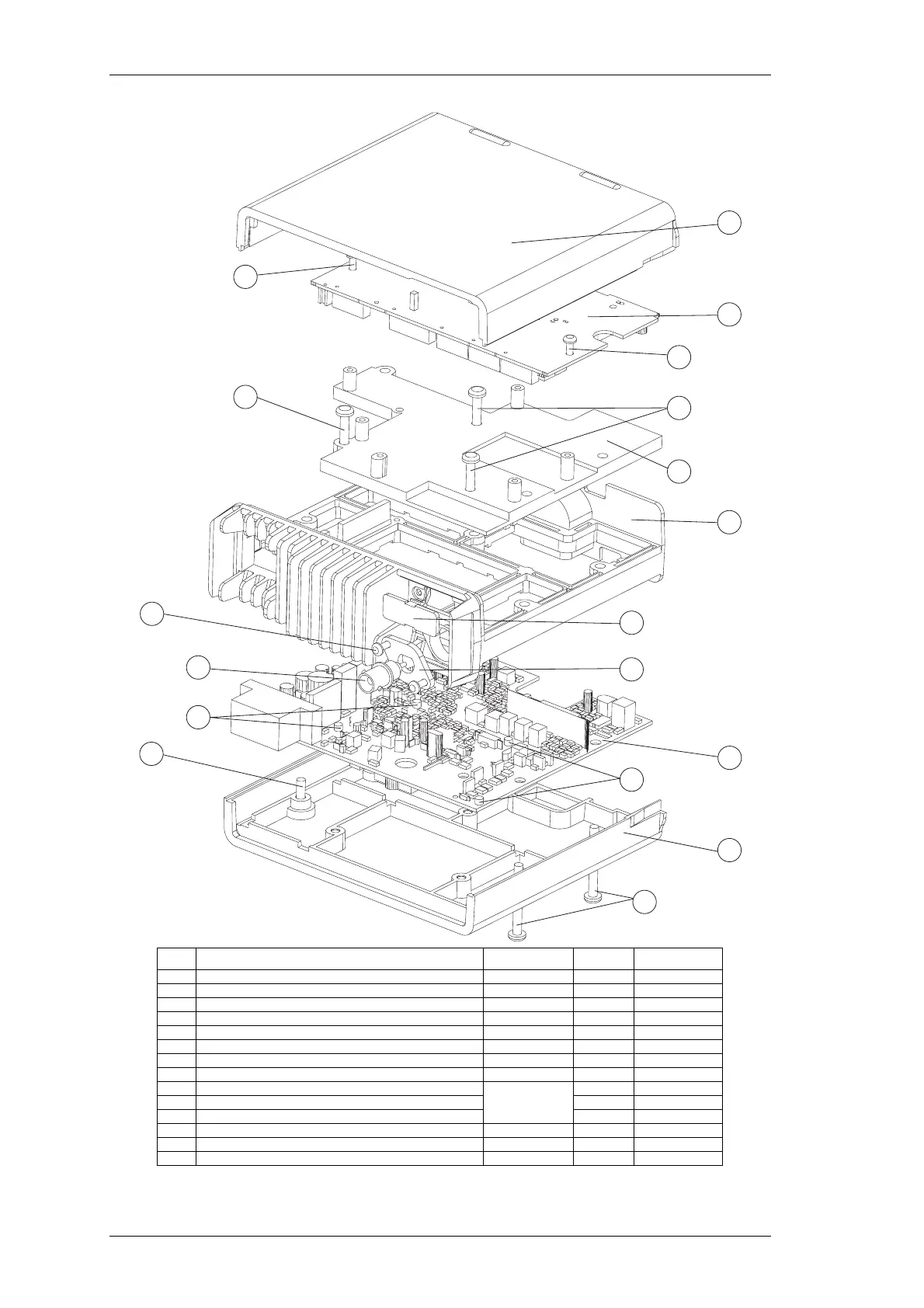

Figure 3.3 T2000 Series II Radio Assembly
Item Description IPN Quantity Torque (in.lb)
1 TOP COVER 303-23134-01 1
2 LOGIC PCB SEE PARTS LIST 1
3 SCREW M3X8 PANPOZI TAPTITE (LOGIC PCB SCREWS) 349-00020-32 3 8
4 MACHINE SCREW M4X25 (MICRO. SHIELD SCREWS) 345-00050-18 3 12
5 MICROPROCESSOR SHIELD 319-01164-XX 1
6 CHASSIS 308-13093-XX 1
7 D-RANGE BLANKING PLATE 360-01053-XX 1
8 SCREW M3X8 PANPOZI TAPTITE (RF CONNECTOR SCREWS) 349-00020-32 2 8
9 RF CONNECTOR PLATE
SEE PARTS LIST
(SECTION 7)
1
10 RF CONNECTOR 1
11 RF PCB 1
12 SCREW M3X8 PANPOZI TAPTITE (RF PCB SCREWS) 349-00020-32 4 8
13 BOTTOM COVER 303-23135-XX 1
14 M4X35 PANPOZI TAPTITE (BOTTOM COVER SCREWS) 349-00020-49 4 12
7
13
14
9
12
11
6
1
2
3
3
4
4
5
8
10
14
12
