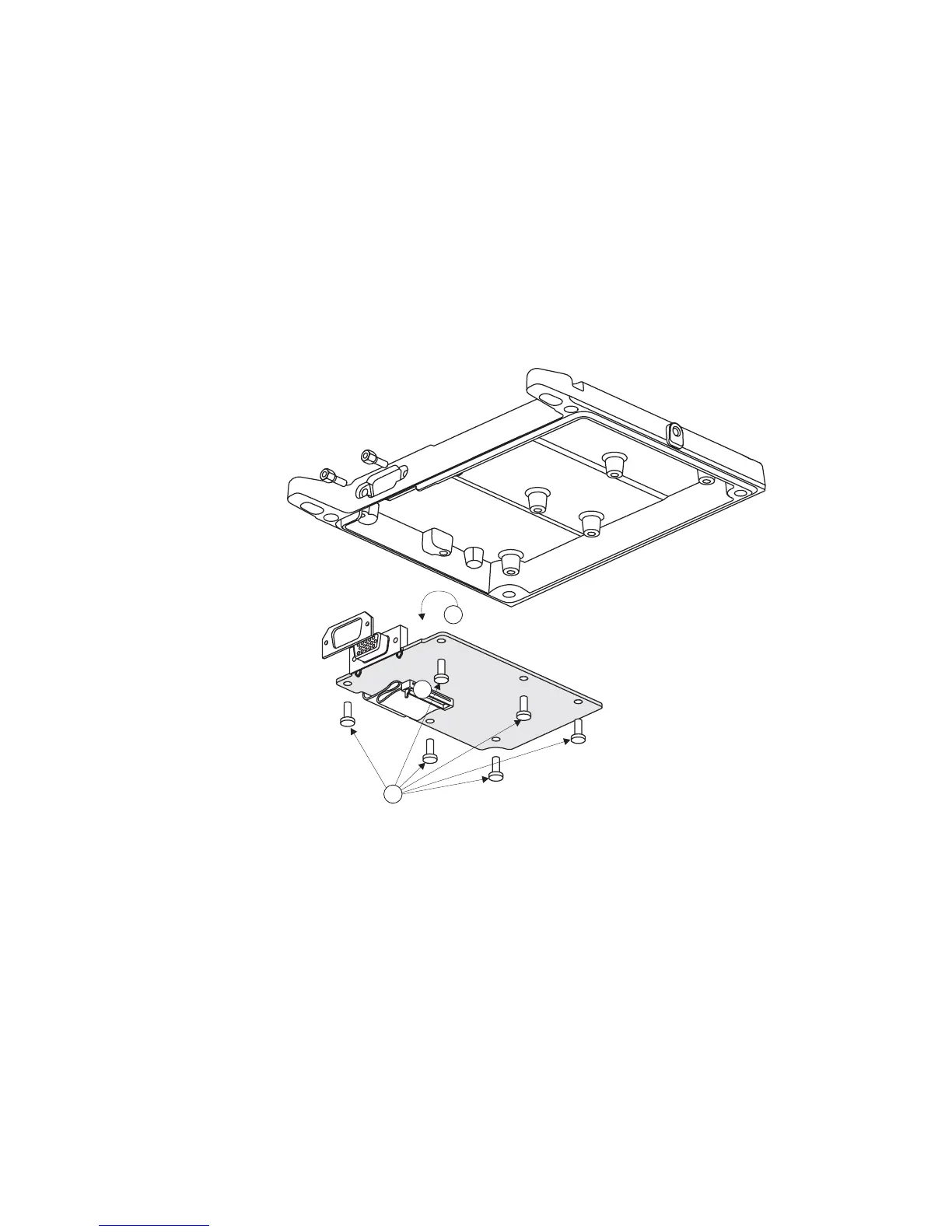

Fit TM8000 Encryption Options Board to TM8000 radio
1. Fit TMA Internal Options Loom (IPN 219-00329-00) to Encryption
Options Board at SK102 (top side - not shown).
2. Turn Encryption Options Board over, and place board so that the
external D Range protrudes through the rear aperture of the chassis.
Then using six Taptite screws, fit Encryption Options Board to radio
lid as shown. (Encryption module will sit between the lid and the
Encryption Options Board.)
3. Fit other end of options loom to TM8000 Main Board.
4. Close radio, according to standard TM8000 procedures (see standard
TM8000 Service Manual).
