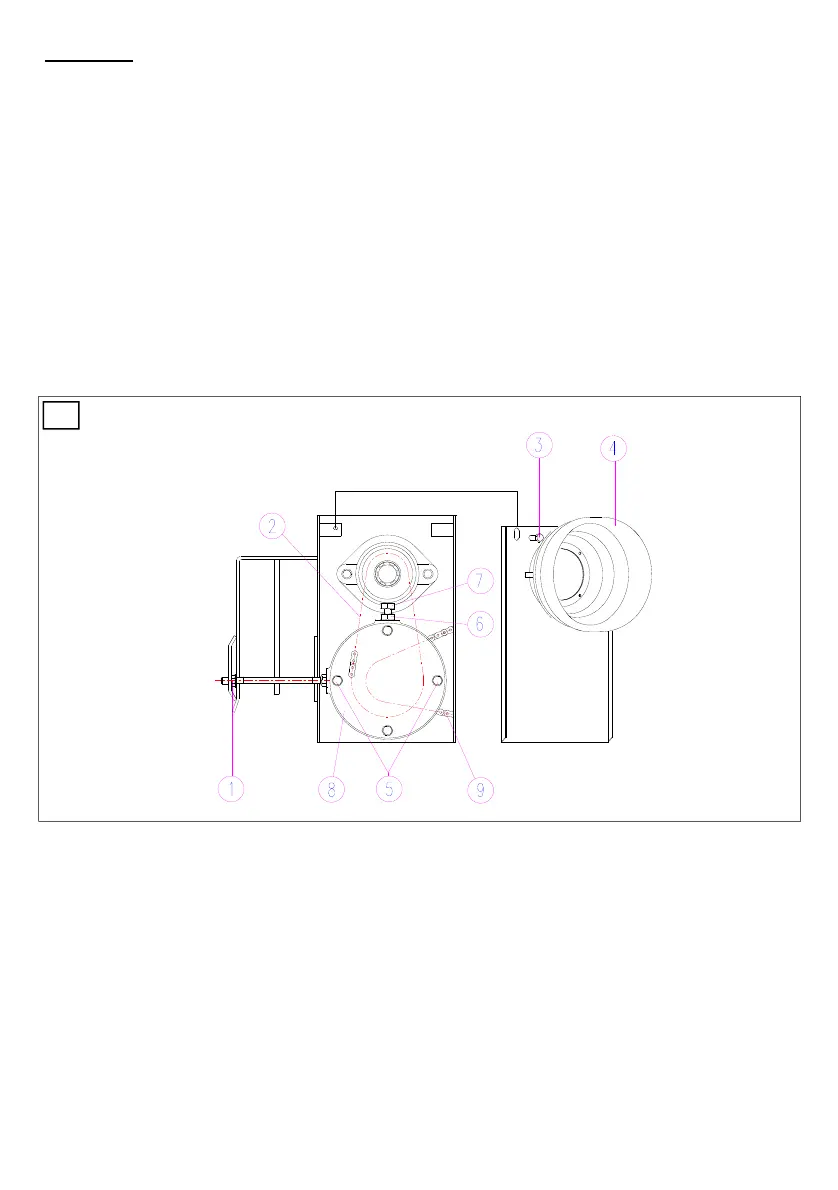

Procedure:

 If the winch is connected to the tractor, shut down the tractor and disconnect the PTO

shaft.

 Unscrew the screw 3 and remove the chain cover 4 by pushing it upwards.

 Loosen both screws 5 by approximately one turn, to move the drive chassis 8.

 First tighten the shorter chain 2 using the tensioning screw 7 and counter nut 6. Screw the

counter nut tightly, afterwards. The slack of the shorter chain should be ±1 mm.

 Tighten the longer chain 9 by screwing the nut on the tightening screw 1 until you reach

the desired chain slack: ±3 mm.

 Screw the screws 5 tightly.

 Install the chain cover 4 and fasten it using the screw 3.
