6
nevarni trikotnik
odtrgani šk ripec
mesto pri trditve škripca
vlečna vrv
2c
When pulling the logs on the steep slope, do not stay under the load, even if the
load is standing still on the stretched wire rope.

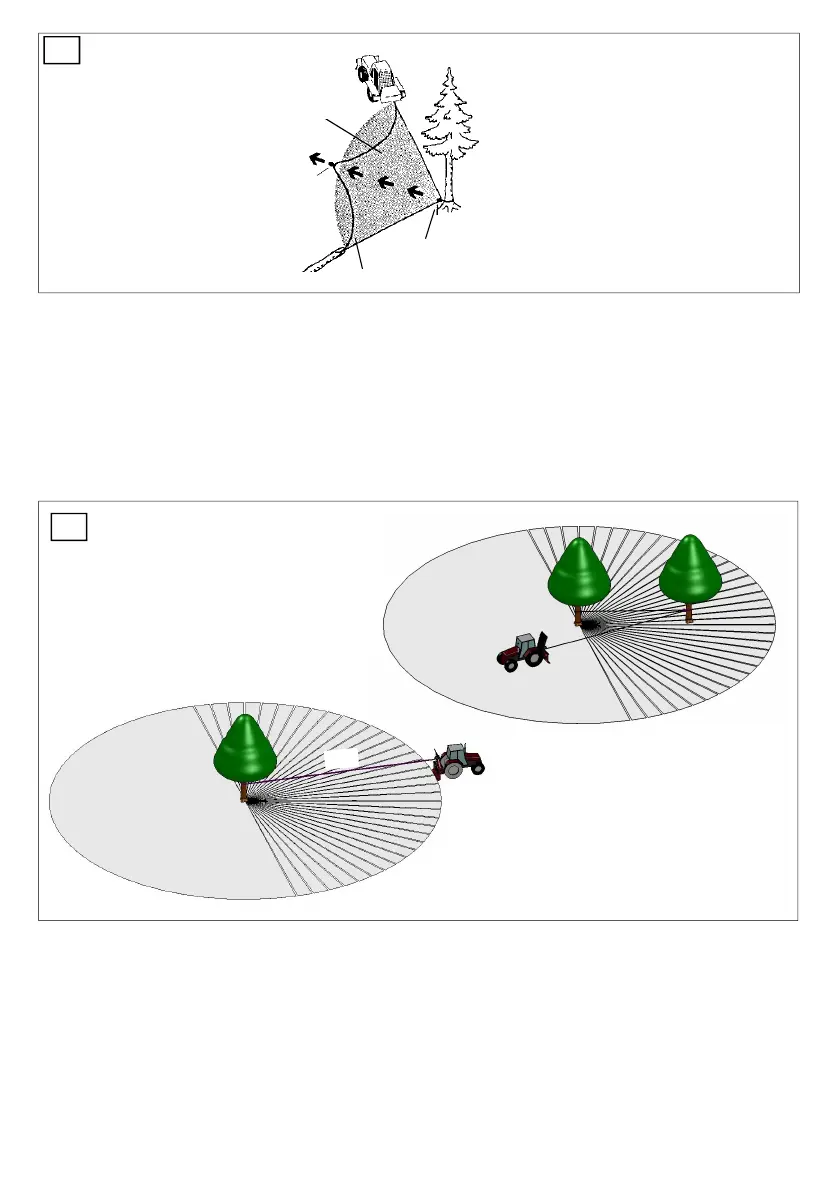

When pulling the tree which is still standing, tighten the wire rope before the
beginning of felling. Position yourself and the winch outside the dangerous area in
the distance twice the tree height. In case you use the pulley to alter the pulling
direction, the dangerous area is within a radius of single tree height (Figure: 2d).
When using the pulley, do not stay in the dangerous triangle!
2d
2L
Dangerous Triangle
Torn Pulley
Pulley connecting spot
Wire Rope
