(7) To edit Y data
(8) To modify the function code
(9) Decide the modification.
9-2. To insert the stitch (Data Edit "Insert")
When this operation is performed in the middle of embroidery, data set will be canceled. If the stitch with a
length is inserted, a design will be displaced hereafter.

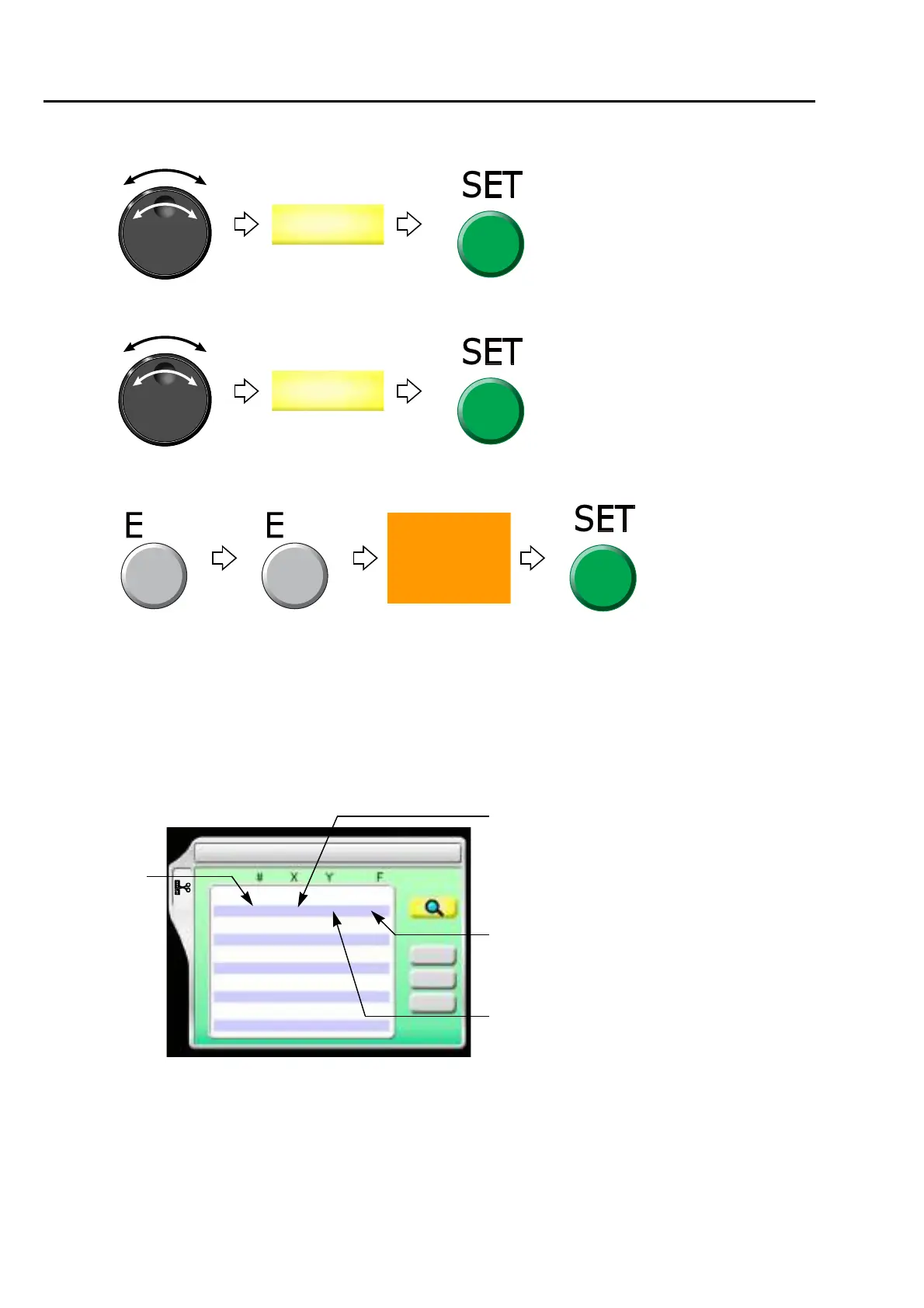

9-2-1. Explanation on the screen
0
Jump
Are you ready ?
1 Data Edit
Delete
1
2
3
4
5
6
7
8
9
10
0 0 Jump
84Stitch
83Stitch
11 5 Stitch
88Stitch
113Stitch
-11 2 Stitch
-12 -3 Stitch
-11 7 Stitch
-25 15 Stitch
Modify
Insert
Stitch No.
X data (Data to move the frame in X-axis
direction)
When the value is 8, the frame travel amount
is 0.8 mm.
Y data (Data to move the frame in Y-axis
direction)
When the value is 4, the frame travel
amount is 0.4 mm.
Function Code (p.251)
It is the code to indicate the role of the stitch.
