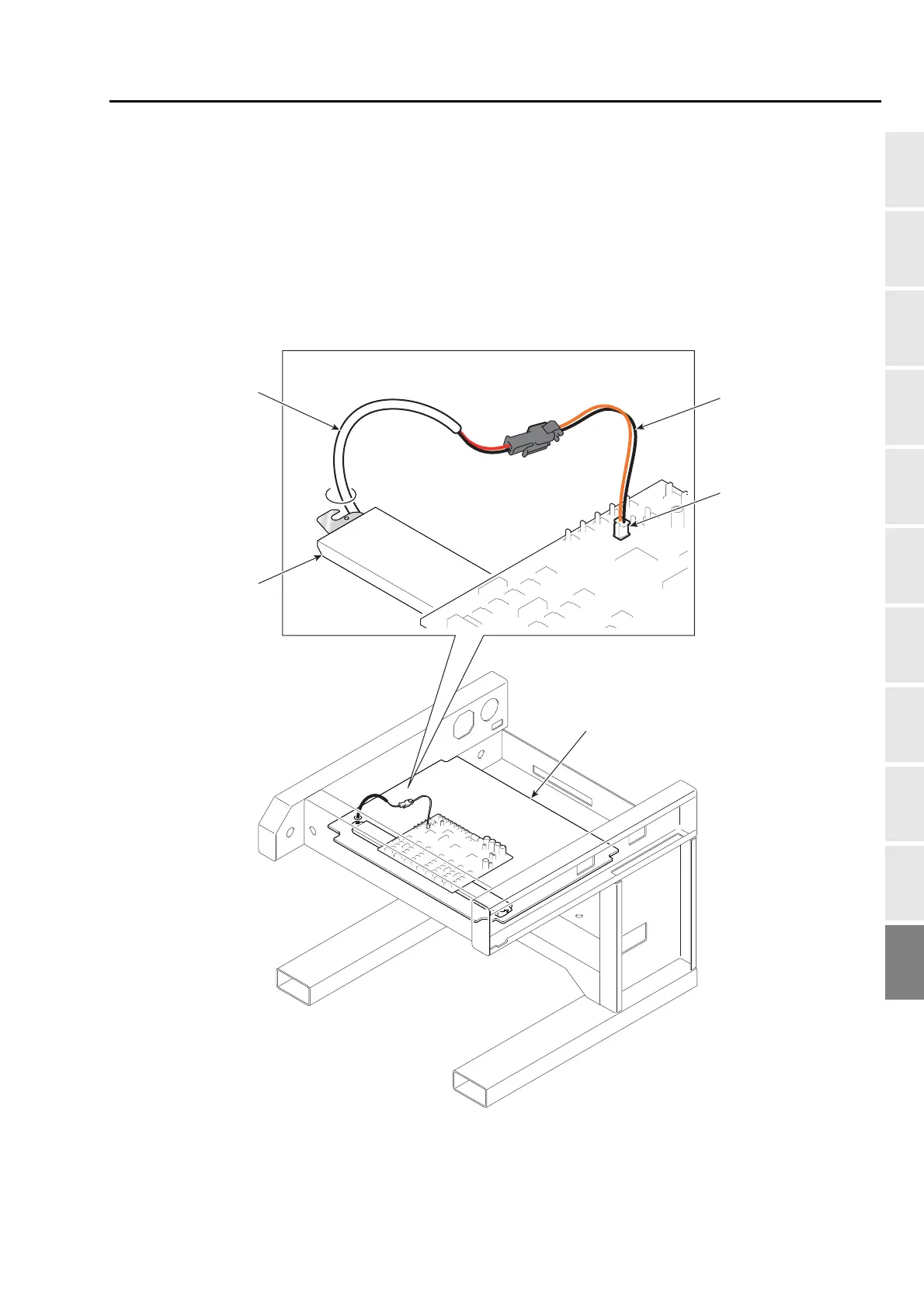

4. How to attach LED Lamp (Option)
When attaching the LED Lamp (Option) to the machine, follow the procedure below.
(1) Attach the LED lamp to the bottom of the electrical component base by using screws (hexagon socket
head cap screw: M4*10, spring washer, plain washer).
(2) Pass the harness of the LED lamp upward from the hole of the electrical component base.
(3) Connect the harness A and the harness B. Connect the harness B to the connector "CN13".
CN13
Electrical component base
LED lamp
Harness A
Harness B
CN13
TP02
