Takagi T-H3J-DV - ERROR CODES; Error Codes; General Error Codes

51 Page

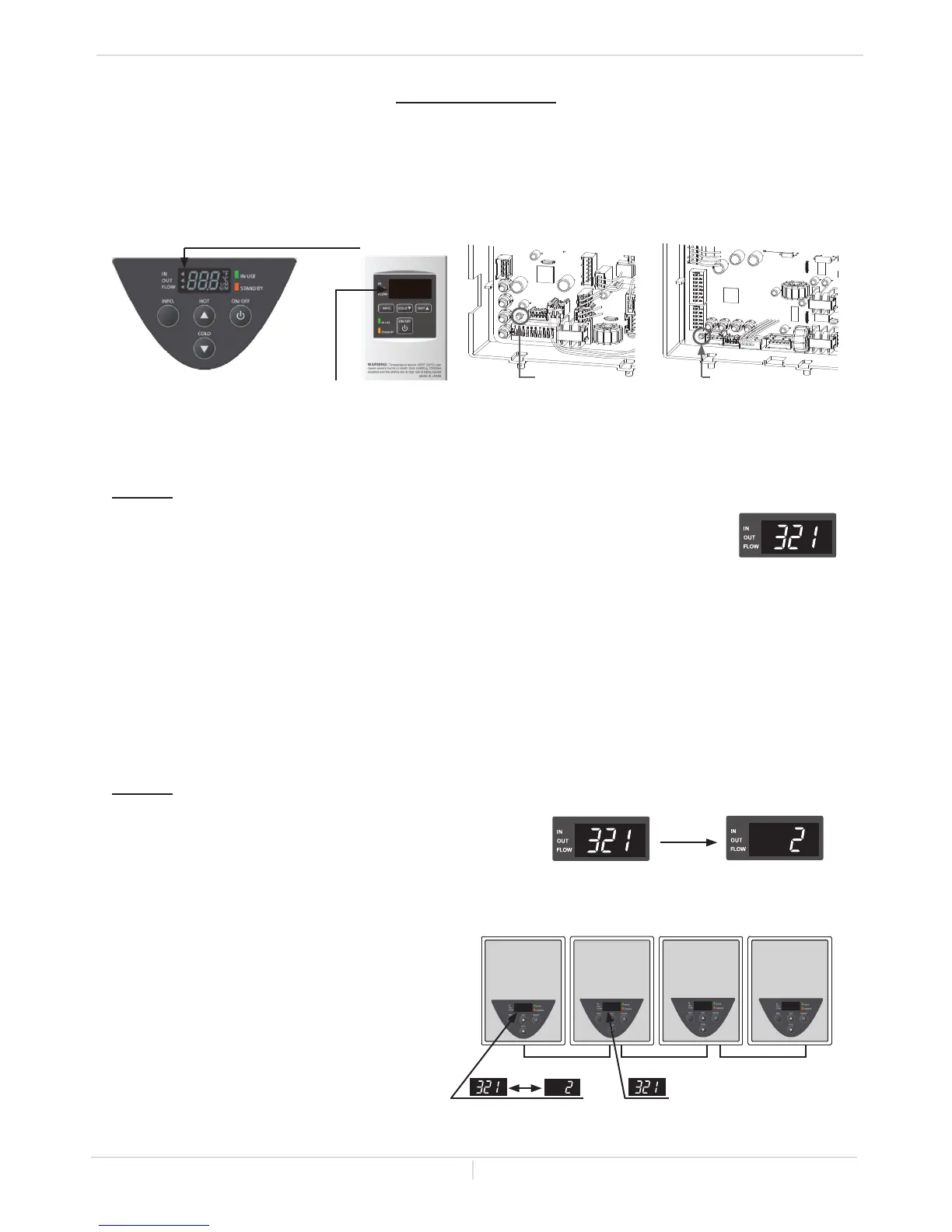

ERROR CODES
-General-
• The units are self-diagnostic for safety and convenience when troubleshooting.
• If there is a problem with the installation or the unit, the error code will be displayed on the
temperature controller and remote controller.
• Consult with the table on the following pages for the description of each error code.
-Single unit Installa ons-
Example: If your unit has the “321” error code (which signifies an inlet thermistor failure)
• Indicator on the temperature
controller or Remote controller : “321”willbedisplayedonthescreeninitsentirety.
• Green LED on the computer board: The green LED on the computer board will be
blinking two times.
-Easy-Link System-
(For the 540 (T-H3) models only)
Error codes will be displayed differently with units installed within an Easy-Link System, not only to show
what the error code is, but to also indicate which unit within the system has the error code. Below is a
sample of how the same error code is displayed in an Easy-Link System.
Example: If Unit #2 has the “321” error code (inlet thermistor failure)
• Indicator on the temperature controller
(Parent unit) or Remote controller :
“321”and"2"willintermittentlyflashon
the display. And it shows that Unit #2 has
the error.
Troubleshoo ng
Owner's Guide
Unit #Error code
• Unit #2: "321" will intermittently flash on
the display. And the green LED on
the computer board will be blinking
two times, just like in the single
unit example.
Error code
Error code on the computer board
240 (T-H3J) and 340 (T-H3S) models
Green LED
540 (T-H3) models
Green LED
Error code indicator on
the temperature controller
Error code indicator on the remote
controller 9008172005 (TM-RE40)
Unit #1
PARENT
Unit #2
CHILD
Unit #4
CHILD
Unit #3
CHILD
• Unit #3
and #4: These units will not display anything, as the error code does not pertain to them.
