Wiring Diagram

DC MODEL

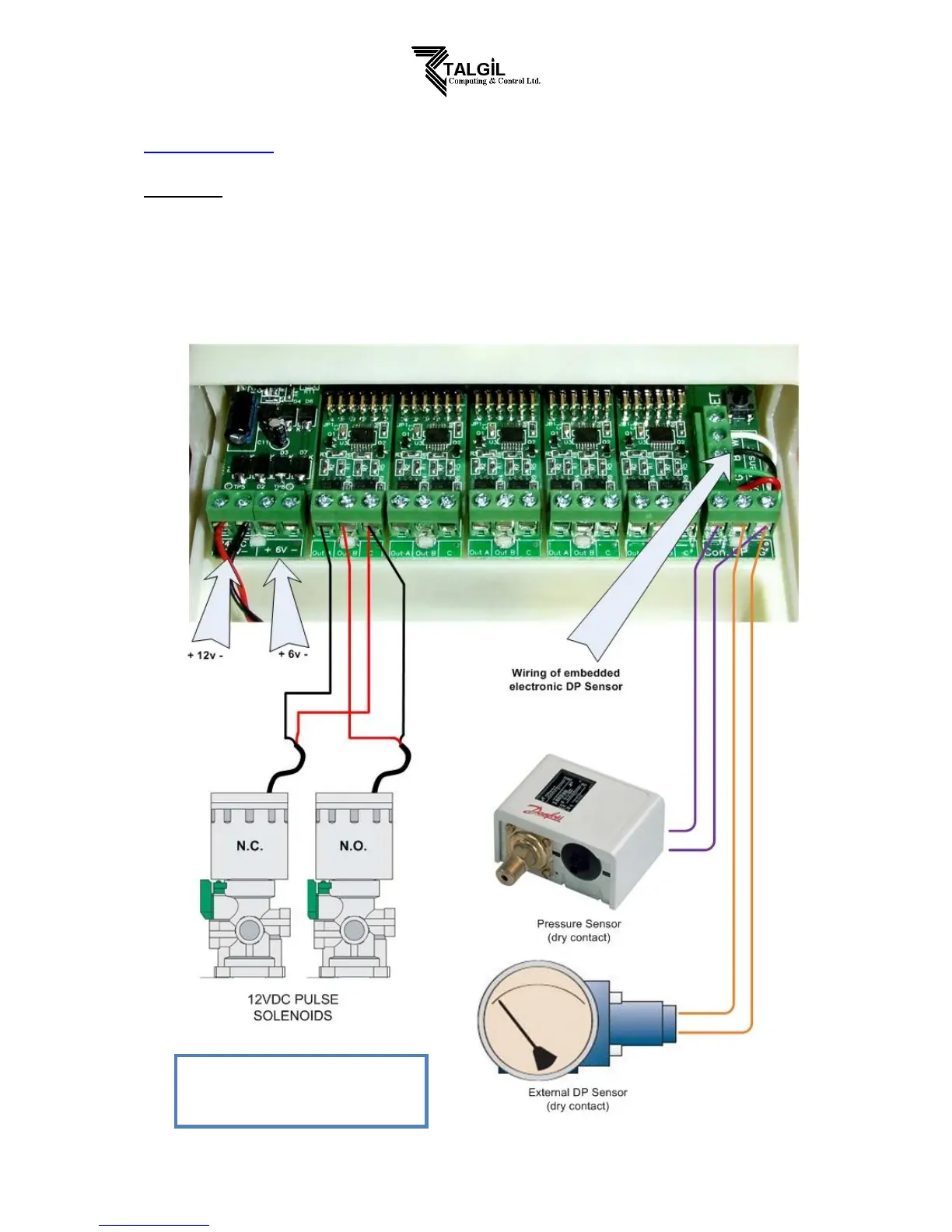

The drawing below shows the wiring of the DC model of the controller.

Notice that:

1. The External DP sensor is optional and it is intended for use in cases there is no

Embedded Electronic DP included.

2. The powering of the unit can be either by 6v DC or 12v DC.

3. The solenoids will be of 12VDC latch.

Make sure to DISCONNECT the

POWER before inserting / removing

the 2 ouputs plug-in unit.
