General Instructions
BATTERY OPTION
Note: Should you choose to run your sensor faucet on battery power, it will require (4) AA
alkaline batteries.
1. If the AC adapter is plugged in, unplug it from its power source and the control
module.
2. With the help of a phillips head screwdriver, remove the battery cover’s three (3)
fasteners and pull cover away from the control box.
3. Replace old batteries if needed.
4. Install the new AA batteries, making sure that the + and - ends are facing the correct
direction. Return the battery cover to its spot and tighten fasteners.
5. Re-set the sensor range if needed (see sensor range setup).

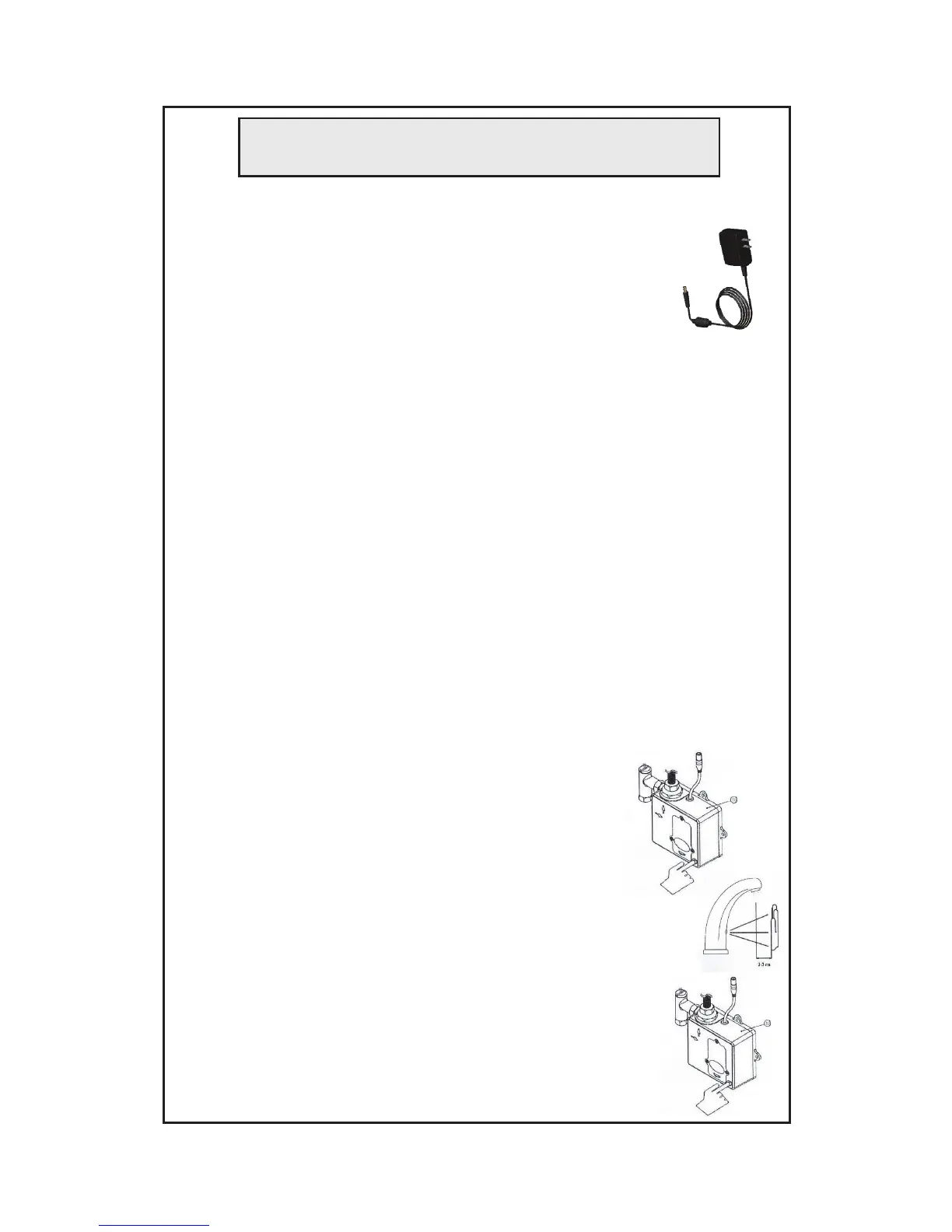

TRANSFORMER OPTION (Figure 5)
Important: DO NOT plug Transformer into receptacle until all wiring has
been completed.
This type of Transformer is designed to be plugged into a 120 VAC wall
receptacle. The Transformer is supplied with a 6 foot Cable. Remove the
rubber plug from the transformer connector on the control module.
Plug the transformer cable into the transformer connector.
plug-in transformer
Figure 5
SENSOR RANGE SETUP
1. AF-serial sensor range can only be set by using the on/o
button situated on the bottom right corner of the control box.
Do not attempt to open control box.
2. Push and hold the on/o button for 5-7 seconds. Water ow will
stop and the red LED light inside the electronic eye will blink on.
Release the on/o button. The LED should turn itself o , signaling
that the faucet is ready for setup.
3. Place and hold your hand at the desired sensor distance. The LED
will turn “ON”.
4. Use the other hand to press the on/o button. The LED will ash
5 times to save the new sensor range setting.
5. The default sensor range is 5-1/2” (14cm). Sensing distance is
adjustable from 3/4” (2cm) to 5-1/2” (14cm).
Note: For the Hydro Generator (EC-HYDROGEN) power option, refer to the instruction
manual in the EC-HYDROGEN kit ordered separately. For hard wiring and hard wire gang-
ing (EC-HARDWIRE) and easy-wire (EC-EASYWIRE) ganging power options , refer to the
instruction manual in each respective kit when ordered separately.
