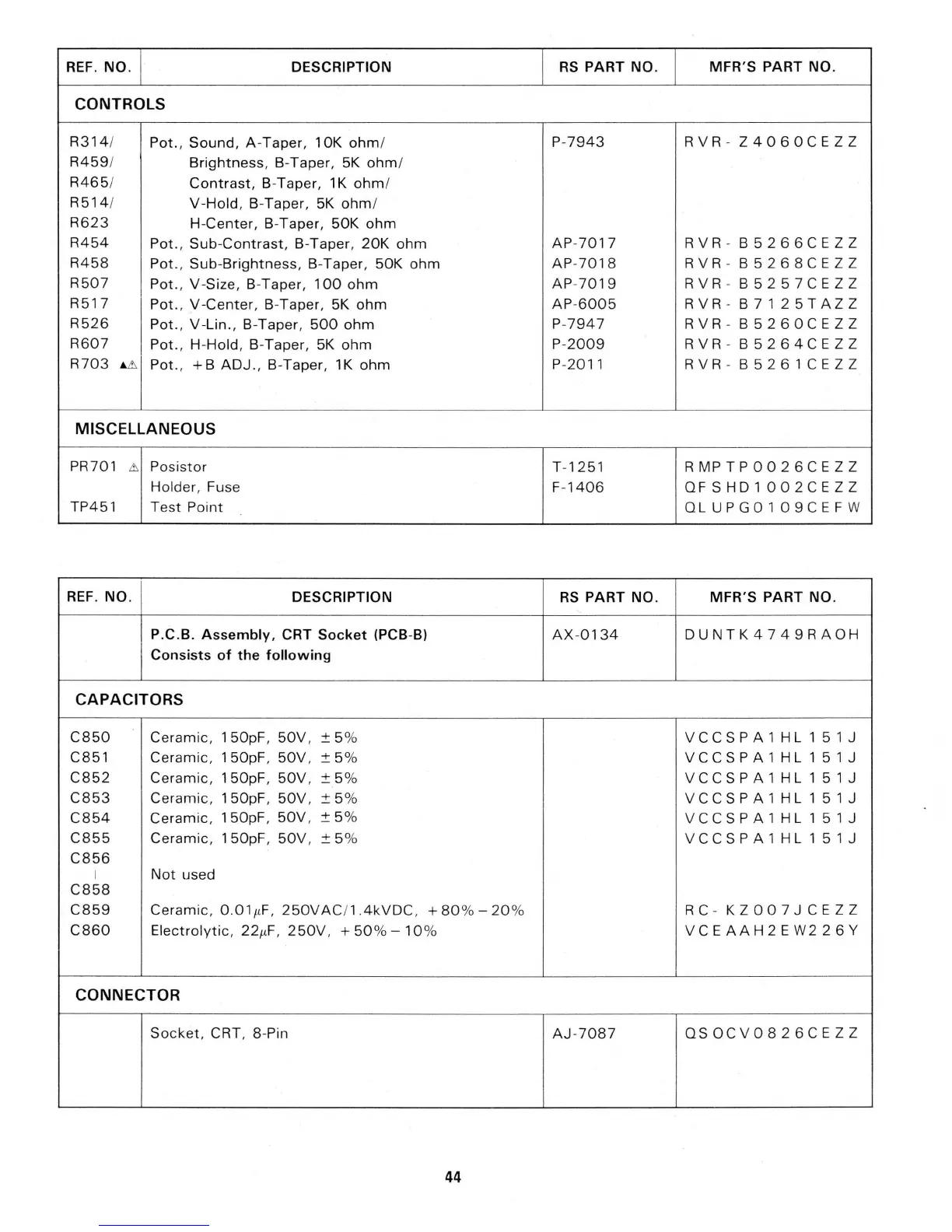

Tandy CM-8 - Page 40

REF. NO. DESCRIPTION RS PART NO.
MFR'S
PART NO.
CONTROLS
R314 /
Pot.,
Sound, A-Taper, 1 OK ohm /
P- 7943 RVR - Z4060CEZZ
R459 /
Brightness , B-Taper, 5K ohm /
R465 /
Contrast , B-Taper, 1 K ohm /
R514 /
V-Hold , B-Taper, 5K ohm /
R623
H-Center , B-Taper, 50K ohm
R454
Pot., Sub-Contrast , B-Taper, 20K ohm
AP- 7017 RVR - B5266CEZZ
R458
Pot., Sub-Brightness, B-Taper, 50K ohm
AP -7018
RVR - B5268CEZZ
R507
Pot., V -Size, B-Taper, 100 ohm
AP- 7019 RVR - B5257CEZZ
R517
Pot., V - Center , B-Taper, 5K ohm
AP- 6005 RVR - B7 125TAZZ
R526
Pot., V -Lin., B-Taper, 500 ohm
P- 7947 RVR - B5260CEZZ
R607
Pot., H-Hold, B-Taper, 5K ohm
P- 2009
RV R -
B5264CEZZ
R703
... ~
Pot., + B ADJ ., B-Taper, 1 K ohm
P -2011 RVR - B5261CEZZ
MISCELLANEOUS
PR701
~ Posis tor
T- 1251 RMPTP0026CEZZ
Holder, Fuse
F-
1406 OFSHD100 2C EZZ
TP451
Test
Point
QLUPG0109CEF W
REF . NO.
DESCRIPTION
RS PART NO. MFR'S PART NO .
P.C.B. Assembly, CRT Socket (PCB- Bl AX - 0134 DUNTK4749RAOH
Consists of the following
CAPACITORS
C850
Ceramic,
150pF , 50V, ±5 % VCCSPA1HL151J
C851 Ceramic , 150pF , 50V,
±5 % VCCSPA1HL151J
C852 Ceramic , 150pF , 50V ,
±5 %
VCCSPA1HL151J
C853 Cera mic, 150pF , 50V ,
±5 %
VCCSPA1HL151J
C854 Ceramic ,
150pF, 50V ,
±5 %
VCC SPA1HL151J
C8 55 Ceramic , 150pF , 50V , ±5 % VCCSPA1HL151J
C856
I
Not used
C858
C859 Ceramic, 0.01 µF, 250VAC / 1.4kVDC ,
+80 % -20 %
RC - KZ007JCEZZ
C860
Electrolytic , 22 µF, 250V , + 50 % - 10 %
VCEAAH2EW226Y
CONNECTOR
Socket , CRT, 8-Pin
AJ-7087
QSOCV0826CEZZ
44
