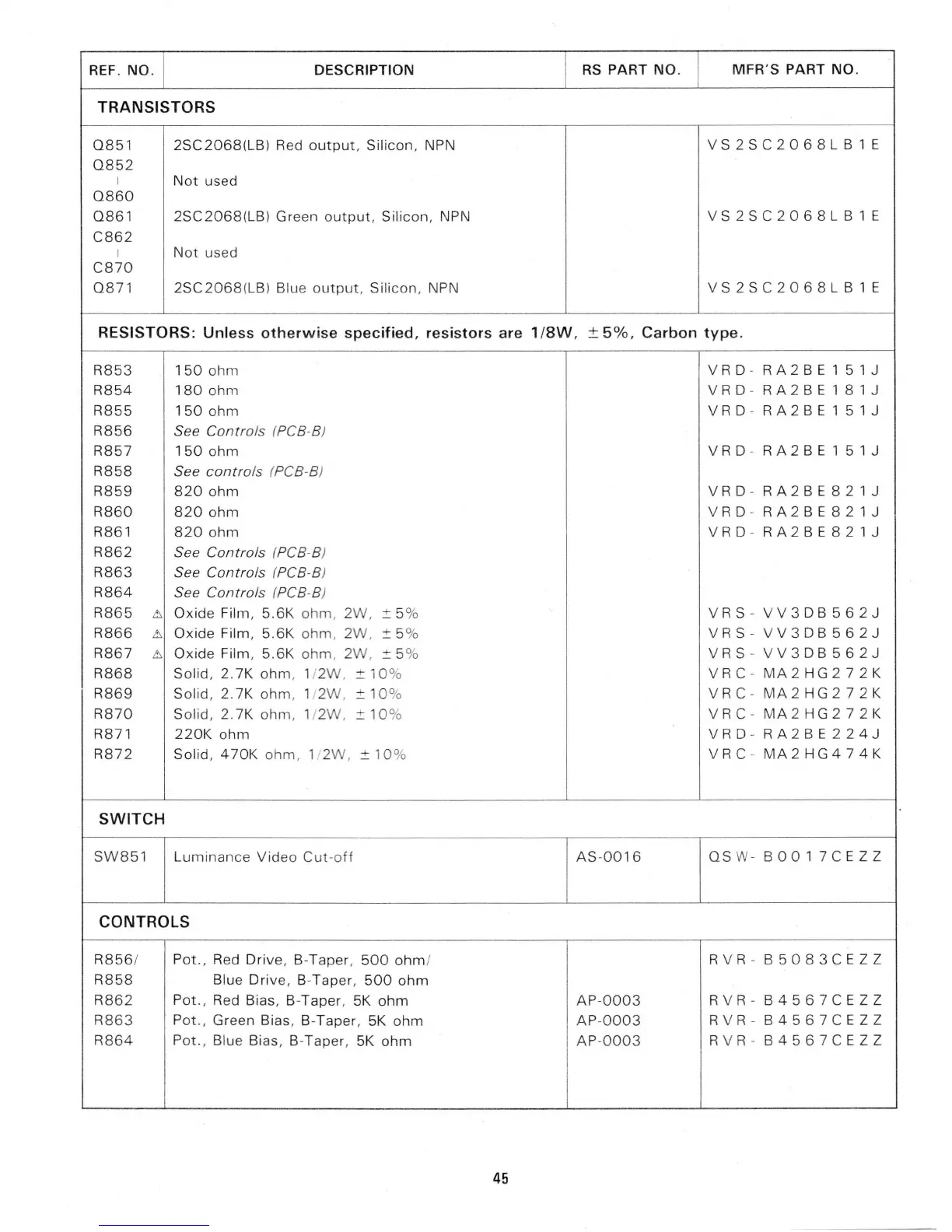

REF . NO.
DESCRIPTION
TRANSISTORS
0851
0852
I
0860
0861
C862
I
C870
0871
2SC2068(LB) Red output. Silicon, NPN
Not used
2SC2068(LB) Green output , Silicon, NPN
Not used
2SC2068 ( LB ) Blue output, Silicon, NPN
RESISTORS: Unless otherwise specified, resistors are
R853 150 ohm
R854 180 ohm
R855 150 ohm
R856 See Control s ( PC8 -8 )
R857 150 ohm
R858 See control s (P C8 -8 )
R859
820 ohm
R860 820 ohm
R861 820 ohm
R862 See Controls ( PC8 -8)
R863 See Control s ( PC8 -8 )
R864 See Control s ( PC8 -8 )
R865 6 Oxide Film, 5.6K ohm , 2W ,
±5 %
R866
& Oxide Film, 5.6K ohm , 2W . ±5 %
R867
& Oxide Film, 5.6K ohm , 2 ±5 %
R868 Solid, 2. 7K ohm , 112 ± 10 %
R869 Solid, 2. 7K ohm ,
112W ,
± 10 %
R870
Solid, 2. 7K ohm ,
1/2 ± 10 %
R871 220K ohm
R872
Solid, 4 70K ohm , 11 2W , ± 10 %
SWITCH
SW851 Luminanc e Video Cut -o ff
CONTROLS
R856 /
R858
R862
R863
R864
Pot .. Red Drive , B-Taper, 500 ohm /
Blue Drive , B-Taper, 500 ohm
Pot .. Red Bias, B-Taper, 5K ohm
Pot .. Green Bias, B-Taper, 5K ohm
Pot .. Blue Bias, B-Taper, 5K ohm
45
RS PART NO.
MFR'S PART NO .
VS2SC2068LB1E
VS2SC2068LB1E
VS2SC2068LB1E
1/8W ,
± 5%, Carbon type.
AS - 0016
AP-0003
AP- 0003
AP- 0003
V RD - RA2BE151J
VR D - RA2BE181J
VR D - RA2BE151J
VR D - RA2BE151J
V RD - RA2BE821J
V RD - RA2BE821J
VR D -
RA2BE821J
VRS - VV3DB562J
VRS -V V3DB562J
VRS - VV3DB 562J
V RC - MA 2 HG 2 7 2 K
VRC - MA2HG272K
VRC - MA2HG272K
VRD - RA2BE224J
VRC - MA2HG474K
OS W- BOO 1 7CEZZ
R V R - B5083CEZZ
RVR- B4567CEZZ
RVR - B4567CEZZ
R VR- B4567CEZZ
