12

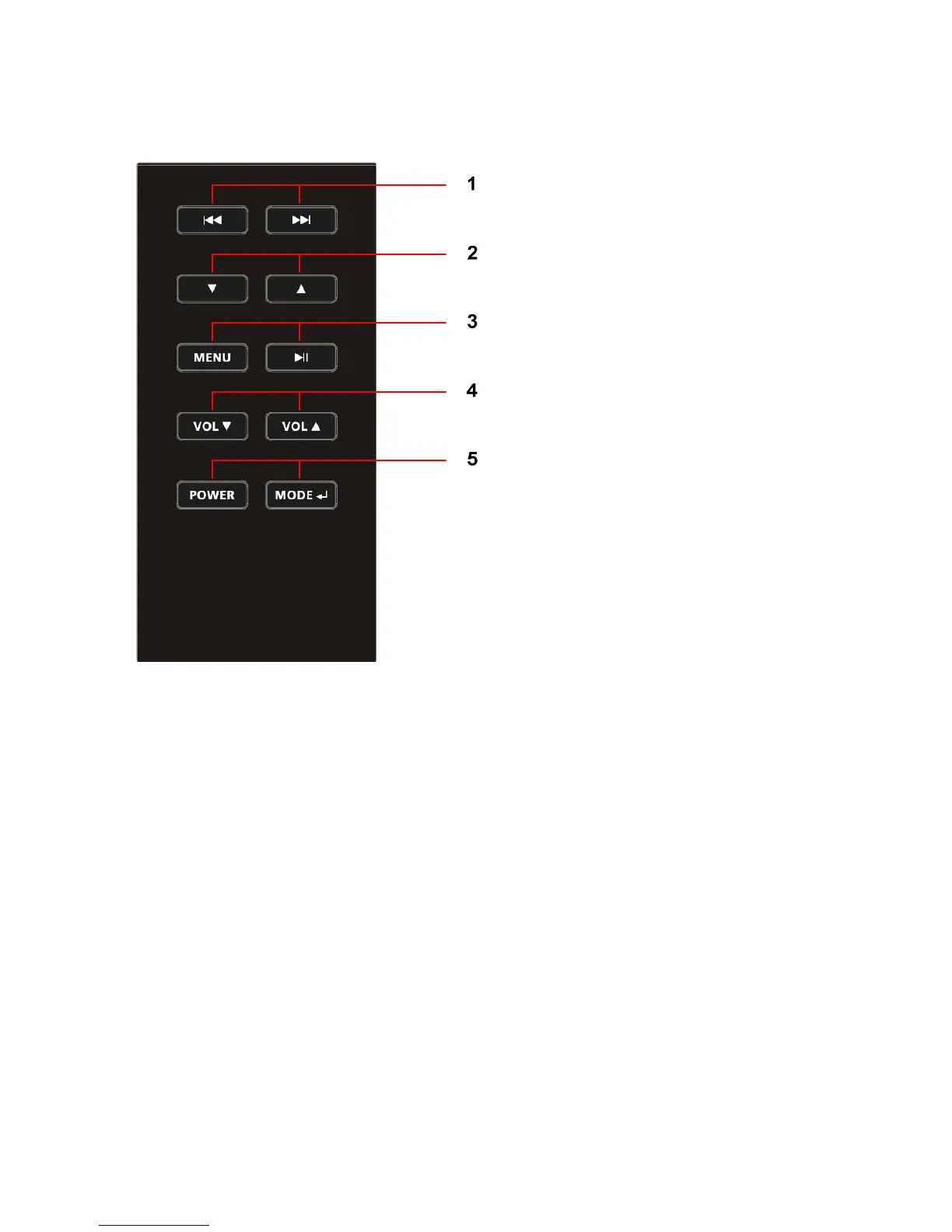

Remote Control
1. Skip/search reverse and forward.
2. Arrow keys down/up, used for scroll in iPhone mode. When short
pressing in FM mode the keys scan down and up respectively in
0.05MHz steps. Upon press and hold the arrows keys scan. [Note a.]
In DAB mode: All stations available can be scrolled via these keys.
3. MENU (for both radio and iPhone) and PLAY/PAUSE.
4. Volume down and up respectively.
5. POWER and MODE. [Note b.]
See section Top Panel for detailed description of the buttons.
Notes
a. There are no arrow keys on the Top Panel.
b. The MODE button on the remote has two functions. It acts as ENTER
button in iPhone menu mode and as MODE button too. The MODE
button function requires a long press to switch from iPhone to DAB
mode. Between other sources a short press is required. The Top Panel
MODE button has only one function.
