8.1 CMS 501 MODEL DIMENSIONS:

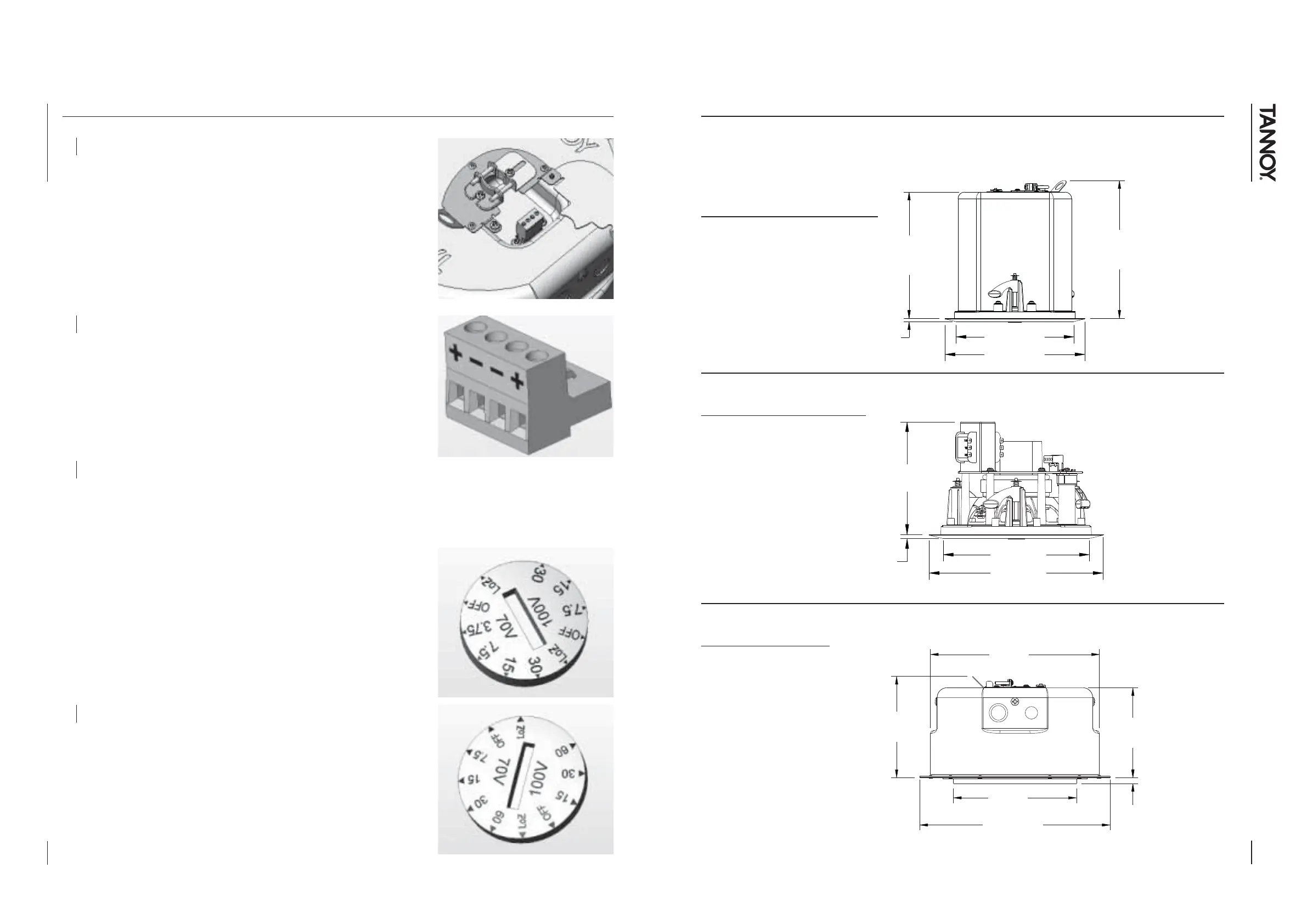

7. WIRING AND SETTING UP:
All CMS 601 models use a 60W transformer. When using distributed-line systems, the
transformer can be tapped at 60W, 30W, and 15W, with an additional 7.5W tapping for
70.7V line systems.
4
Open the wiring cover at the back of the speaker can to access the Euro type connector
plug and socket.
1
For connection to an amplifier, use pins 1 and 2:
• Pin 1 is positive
• Pin 2 is negative
For connection to additional speakers in a distributed line,
pins 3 and 4 are in parallel where:
• Pin 3 is negative
• Pin 4 is positive
2
Close the wiring cover and tighten both screws on the cable clamp. Use the rotary
switch located on the front of the unit to select whether you wish to use the speaker in
a low-impedance or distributed-line application.
3
CMS 501 models TEMPLATE HOLE CUTOUT SIZE: 190mm
THE SPEAKER IS SUPPLIED IN LOW IMPEDANCE MODE. NEVER CONNECT THE
SPEAKER TO A 70/100 VOLT AMPLIFIER WHILE IT IS SET FOR LOW IMPEDANCE.
All CMS 501 models use a 30W transformer. When using distributed-line systems, the
transformer can be tapped at 30W, 15W and 7.5W, with an additional 3.75W tapping
for 70.7V line systems.
CMS 501 BM & CMS 501 DC BM:
CMS 501 PI & CMS 501 DC PI:
CMS 501 PI BACK CAN:
CMS
135.6
[5.34"]
5.0
[0.20"]
210.0 [8.27"]
181.3 [7.14"]
206.8
[8.14"]
189.5
[7.46"]
5.0
[0.20"]
210.0 [8.27"]
181.3 [7.14"]
256.0
[10.08"]
153.5
[6.04"]
136.2
[5.36"]
8.8
[0.35"]
186.4
[7.34"]
288.0 [11.34"]
