12.3 SECUR ET – VMB Wall Mounting Bracket
The VMB is wall mounting bracket for the
attachment of a VMY, available in both black
and white finishes, allowing the user secure
the Tannoy V12 loudspeaker in either portrait
or landscape orientations to a wall.
The Tannoy V12 loudspeaker is attached to
the bracket using the accessories supplied.
This wall-mounting bracket has a larger wall
plate than previous models to maximise the
integrity of fixing obtained. There are also two
holes either side of the fixing beam to allow
the speaker cable the pass through the wall
plate and along the fixing beam to the terminal
panel resulting in a more discrete installation.
The fixing beam on the VMB has a number of
mounting points from which the VMY can be
attached at varying distances from the
mounting surface.
Only the screws, fasteners, shakeproof
and plain washers specified on figure 3.
should be used to assemble the VMB
bracket
Number on Fig 3. Description Quantity
1 VMB Wall Bracket 1
2 M10 Nyloc Nut 1
3 M10 Plain Washer 1
4 30mm Square Blank Plug 1
5 Nylon Spacer 1
6 M10 x 85mm Screw 1
1
2
3
4
5
6

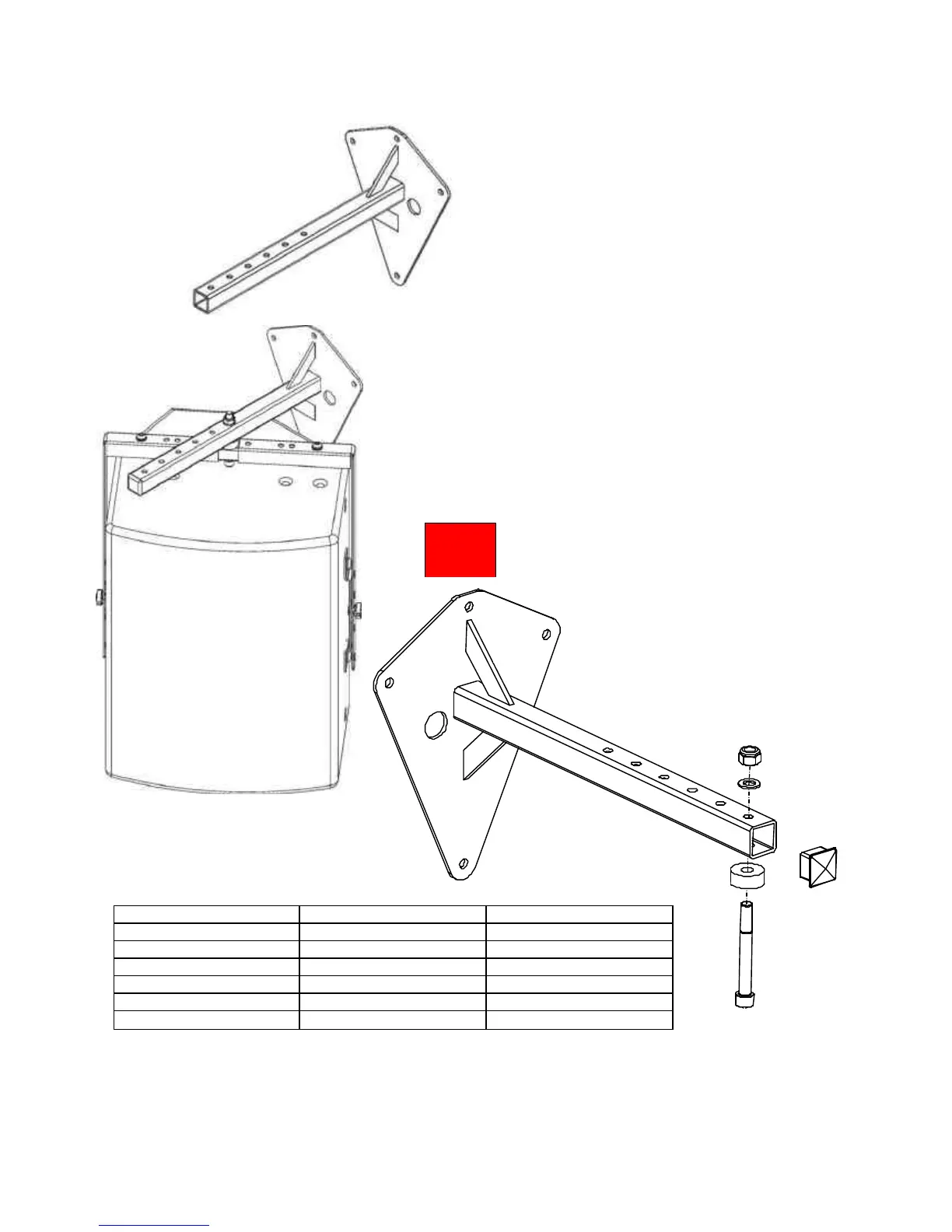

FIG 2.
FIG 3.
FIG 1.
!!
