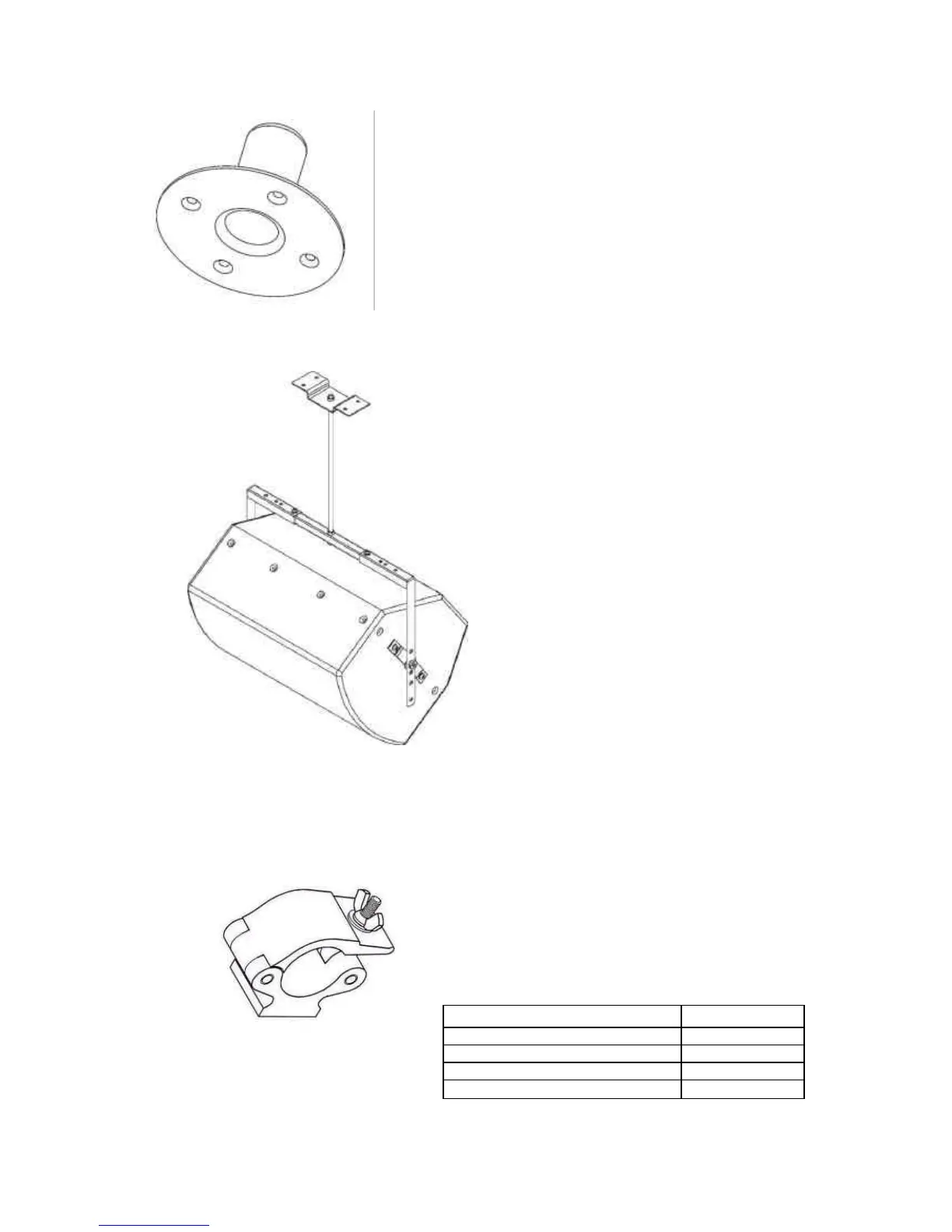

12.5 SECUR – ET VTH Pole Mount
12.6 SECUR – ET VCS Ceiling Saddle
12.7 SECUR – ET VPC Pole Clamp
The Tannoy V12 loudspeaker is fitted as
standard with a blanking plate on the base
of the cabinet. However, should you ever
wish to mount the V12 onto a standard
35mm pole mount this blanking plate can be
quickly and easily removed and replaced by
a VTH pole mount. The same screws which
secure the blanking plate should be used to
secure the VTH in position.
VCS
The VCS ceiling saddle available in both
black and white finishes, and is to be used
in conjunction with the VMY and a length of
M10 threaded rod (not supplied by Tannoy
Limited). The VCS ceiling saddle allows the
Tannoy V12 loudspeaker to be suspended
at a user defined distance from the ceiling
as shown in Figure 1.
Included with the VCS is an M10 nut. This
should be used to secure and lock the
threaded rod in place at the t
The VPC pole clamp can be used along with the
VMY yoke bracket to suspend a Tannoy V12
loudspeaker from an overhead bar, truss or
suitable structure. Only the parts supplied
should be used to secure the VPC to the VMY
yoke bracket.
The following items are included with each
VPC:-
Description Quantity
VPC Pole Clamp 1
M10 Washer 1
M10 x 50mm Screw 1
M10 Nyloc Nut (Black) 1
To Next Page
