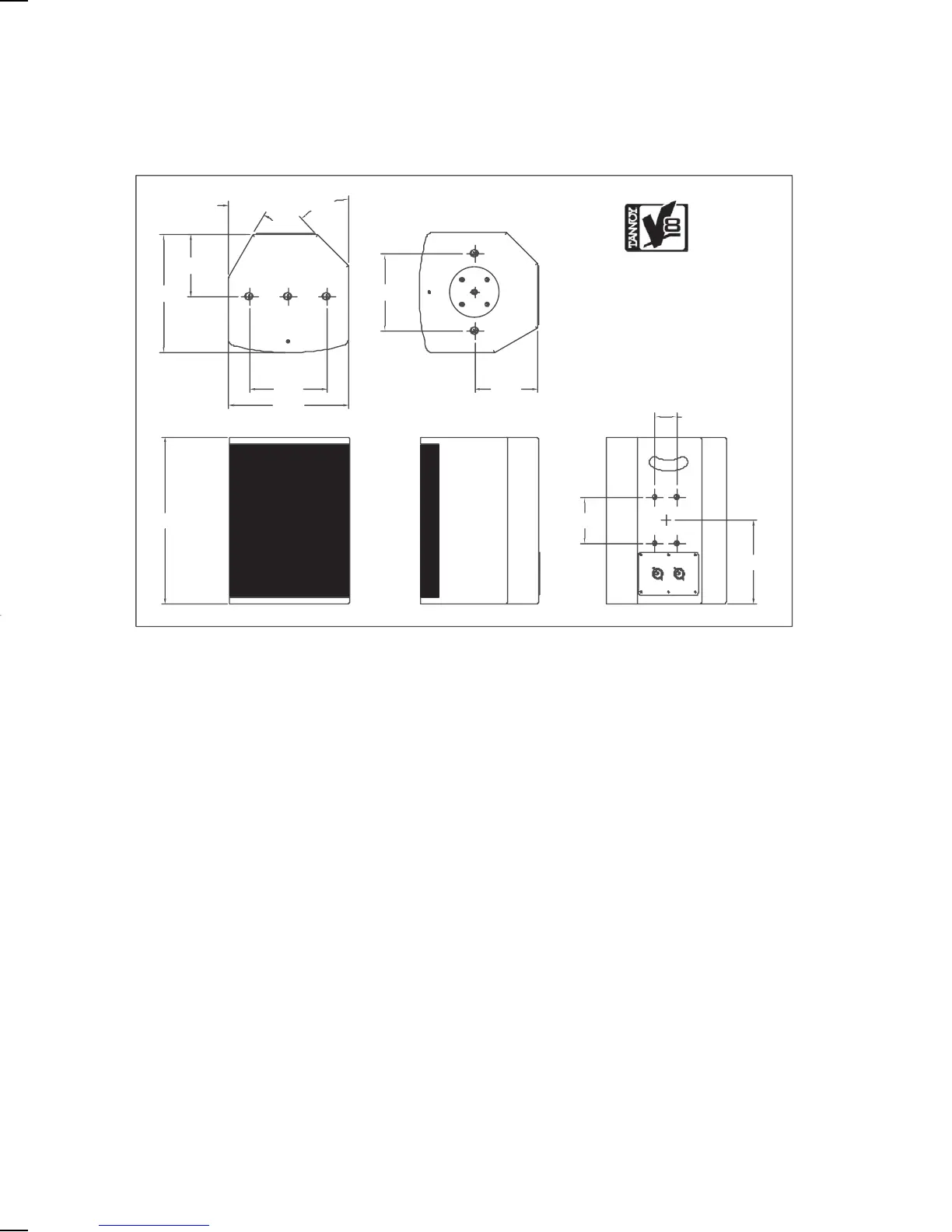

9. Dimensions
388.0
280.0
275.0
180.0
180.0
145.0
145.0
107.9
50.8
194.0
30deg
45deg
V8
12.8 SECUR – ET V8B Wall Mounting Bracket
The V8 can be wall or ceiling mounted by using the V8B bracket which is designed to offer the
maximum flexibility in selecting desired angles.
The V8B is supplied with M8 bolts for fixing to the loudspeaker, hinge clips which can be used to alter
the angle of the wall fixing plate and an allen key to secure the arm length adjustment as well as the
desired angle of ‘tilt’ of the loudspeaker .
The hinged wall mount plate enables the V8B to be fixed to flat walls and ceilings or to fit onto internal
or external corners.
When the desired angle of tilt has been decided for the loudspeaker, the allen bolt holding the
loudspeaker mounting plate onto the arm of the V8B can be tightened, the sprockets will hold the
assembly firm ensuring it will not slip. The arm length can also be adjusted if desired. It is imperative
that the bracket is fixed soundly to the wall. Be sure to use the correct fixings (e.g. Rawbolt,
Rawplug) according to the wall type.
The Tannoy V8 loudspeaker is also compatible with Omnimount™
50 Series Hardware
