TaoTronics TT-BS003 User Manual

Installing the Interface Cable
Installation procedures:
(1) Plug the modular (RJ45) connector of the cable into the bottom of the scanner until you
hear a click sound.
(2) Turn off your PC or terminal
(3) Unplug the keyboard from the PC or terminal.
(4) Plug the keyboard into a connector of the Y cable that mates with it.
(5) Plug the remaining connector of the cable into the keyboard port of your PC or
terminal.
Note: The bar code reader defaults to USB mode . if the switch to keyboard mode, replace
the keyboard port of wire code and scan keyboard mode is set; if the switch to serial
mode, replace the serial interface cables and scan the serial port mode is set to
code.
-2-

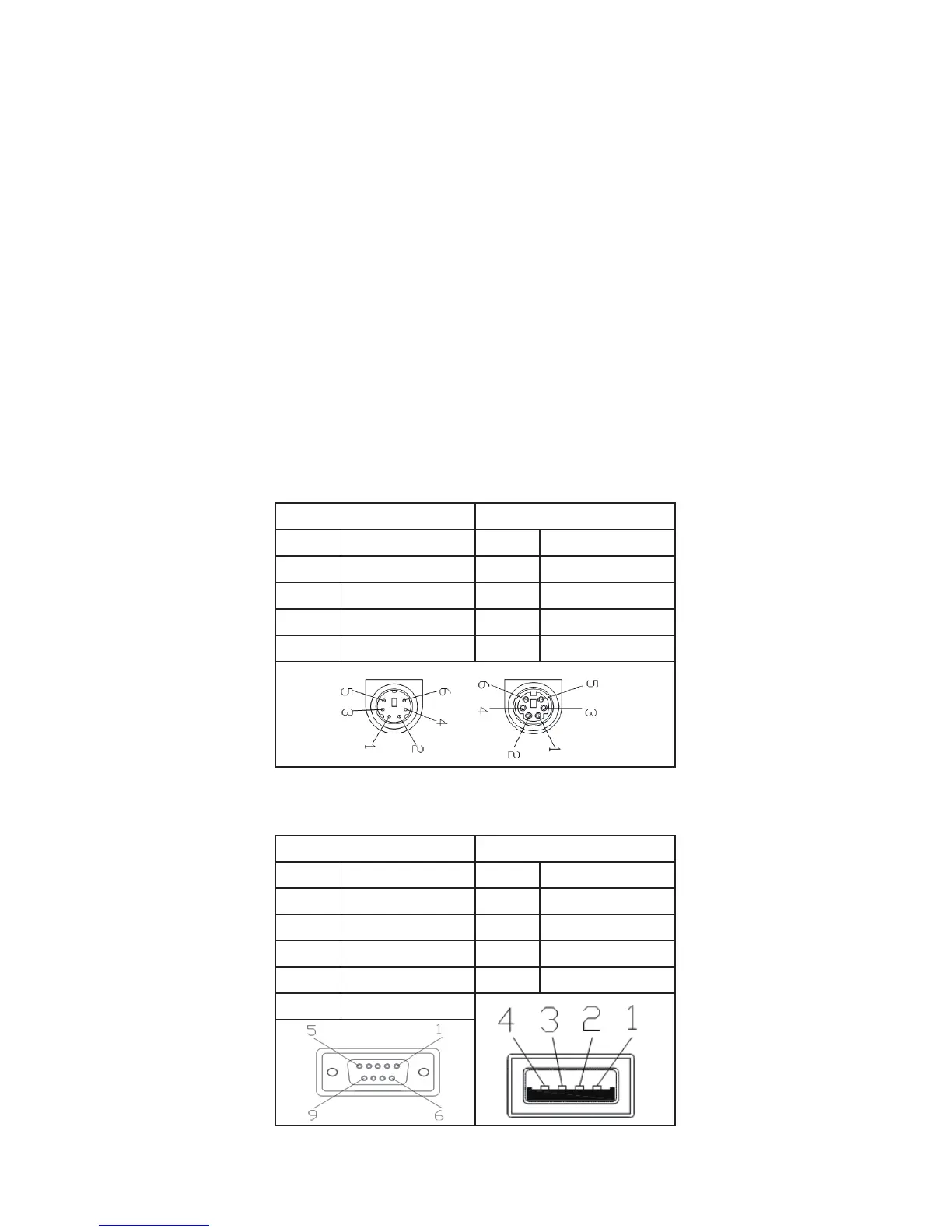

Keyboard interface output sign
PS/2 PS/2
PIN
1
2
3
4
SIGN
PC DATA
GND
Vcc
PC CLK
PIN
1
2
3
4
SIGN
KB DATA
GND
Vcc
KB CLK
RS-232 interface output sign USB interface output sign
DB9 USB
PIN
2
3
5
7
8
SIGN
TXD
RXD
GND
CTS
RTS
PIN
1
2
3
4
SIGN
VCC
D-
D+
GND

TaoTronics TT-BS003 Specifications

General

Brand	TaoTronics
Model	TT-BS003
Category	Barcode Reader
Language	English
