Hookup Diagrams
6912’s with a Mixer and Power Amplifier, Daisy-Chaining
You can use the 1/4" outputs
or the Neutrik “Link Extension”
connectors as “Thru” connections
to daisy-chain the signal to
another loudspeaker.

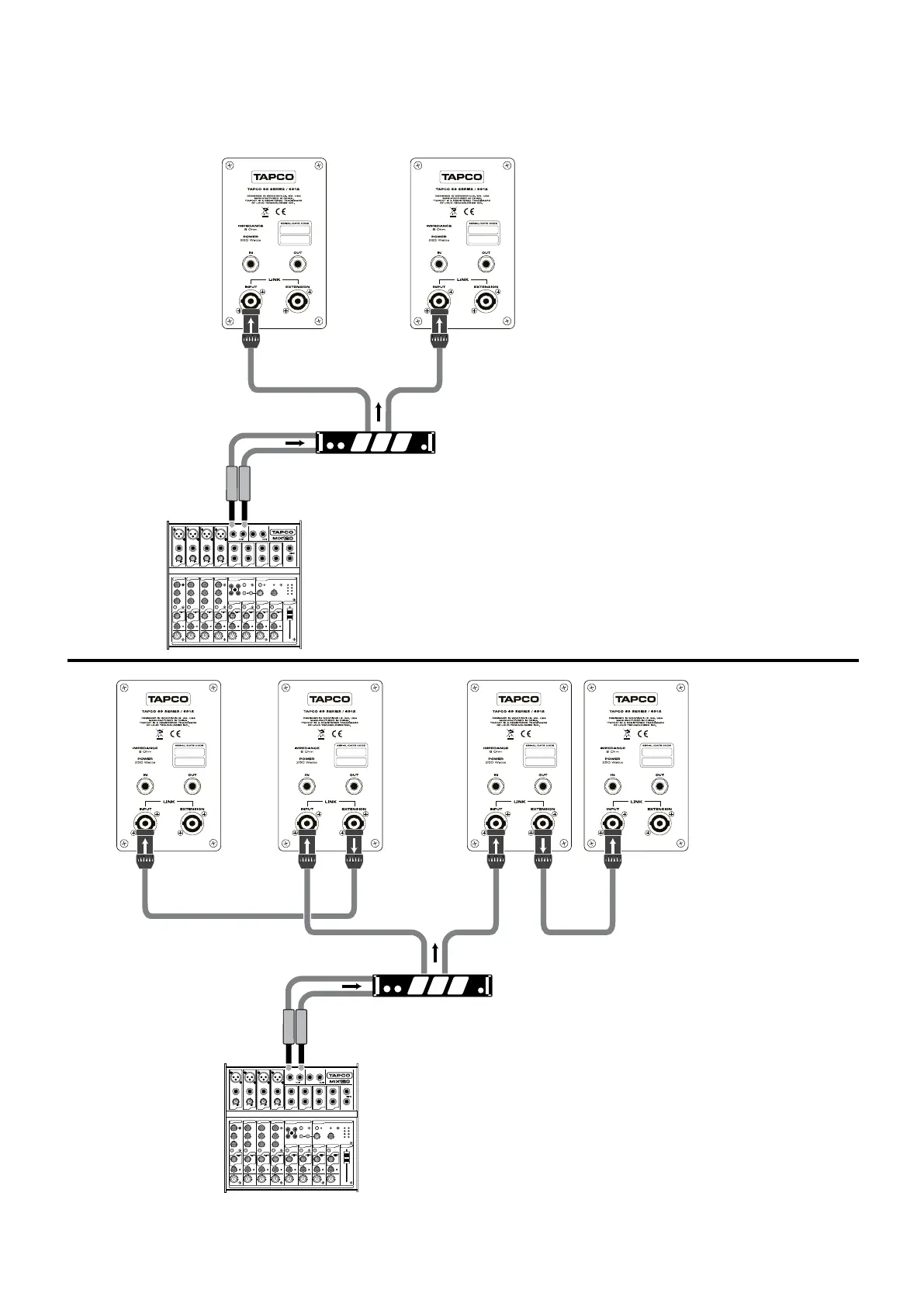

6912’s with a Mixer and Power Amplifier
