Stereo Headphones
1/4" TRS Stereo Unbalanced Wiring:
Sleeve = Shield
Tip = Left
Ring = Right
1/4" TS Phone Plugs and Jacks
“TS” stands for Tip-Sleeve, the two connections available on a mono
1/4" phone jack or plug. They are used for unbalanced signals.
1/4" TS Unbalanced Wiring:
Sleeve = Shield
Tip = Hot (+)
RCA Plugs and Jacks
RCA-type plugs (also known as phono plugs) and jacks
are often used
in home stereo and video equipment, and to make S/PDIF connections
on consumer digital audio devices. They are unbalanced and electrically
equivalent to a 1/4" TS phone plug.
RCA Unbalanced Wiring:
Sleeve = Shield
Tip = Hot (+)
FireWire Connection
The Link.FireWire is equipped with a 6-pin FireWire connector and comes
with a 6-pin to 6-pin FireWire cable. Many laptops have a 4-pin FireWire
connector. If this is the case, you will need to purchase a 6-pin to 4-pin FireWire
adapter and use the external power supply included with your Link.FireWire.

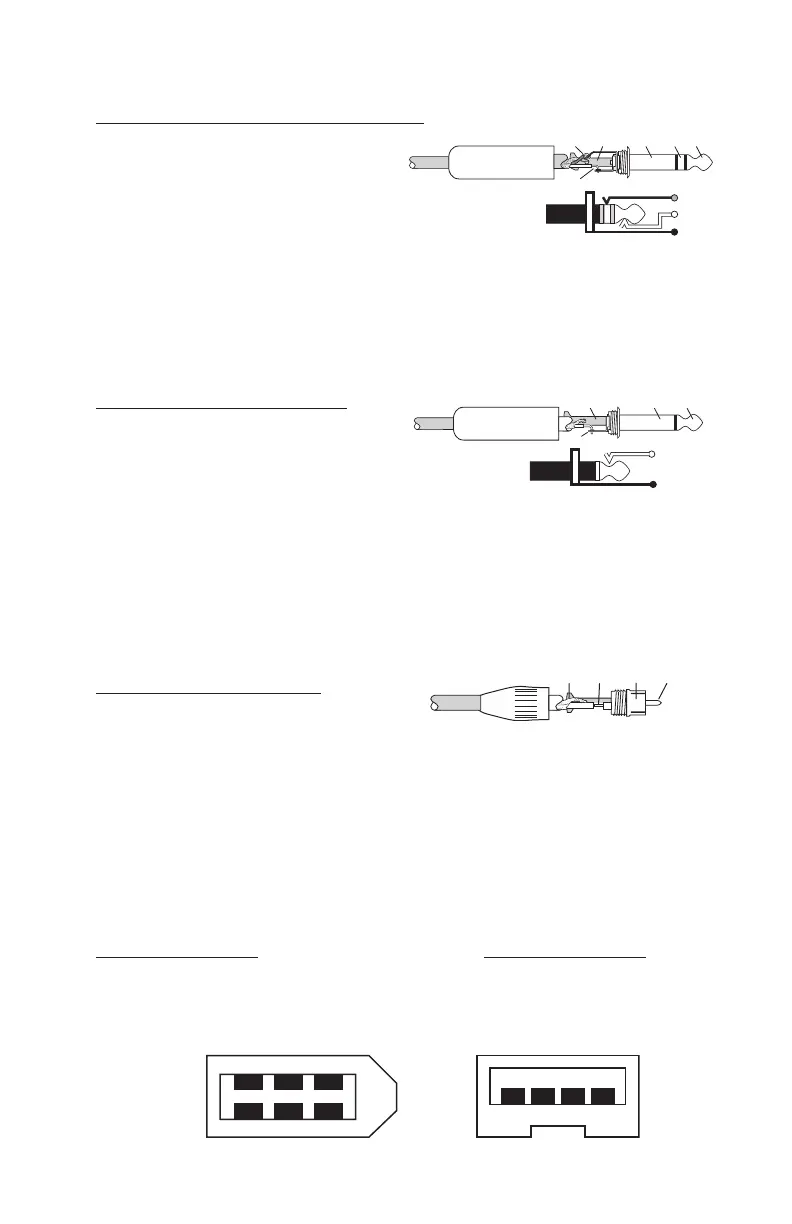

Stereo Headphones 1/4" TRS Connector
4-&&7&
5*14-&&7&
5*1
3*/(
3*/(
5*1
4-&&7&3*/(
4-&&7&
5*1
5*14-&&7&
4)0
4-&&7&
4-&&7&
5*14-&&7&
5*1
3*/(
3*/(
5*1
4-&&7&3*/(
Unbalanced 1/4" TS Connector
4-pin FireWire Wiring:
Pin 1 = TPB–
Pin 2 = TPB+
Pin 3 = TPA–
Pin 4 = TPA+
2 4 6
1 3 5
6-pin Male FireWire
1 2 3 4
4-pin Male FireWire
6-pin FireWire Wiring:
Pin 1 = Power
Pin 2 = Ground
Pin 3 = TPB–
Pin 4 = TPB+
Pin 5 = TPA–
Pin 6 = TPA+
