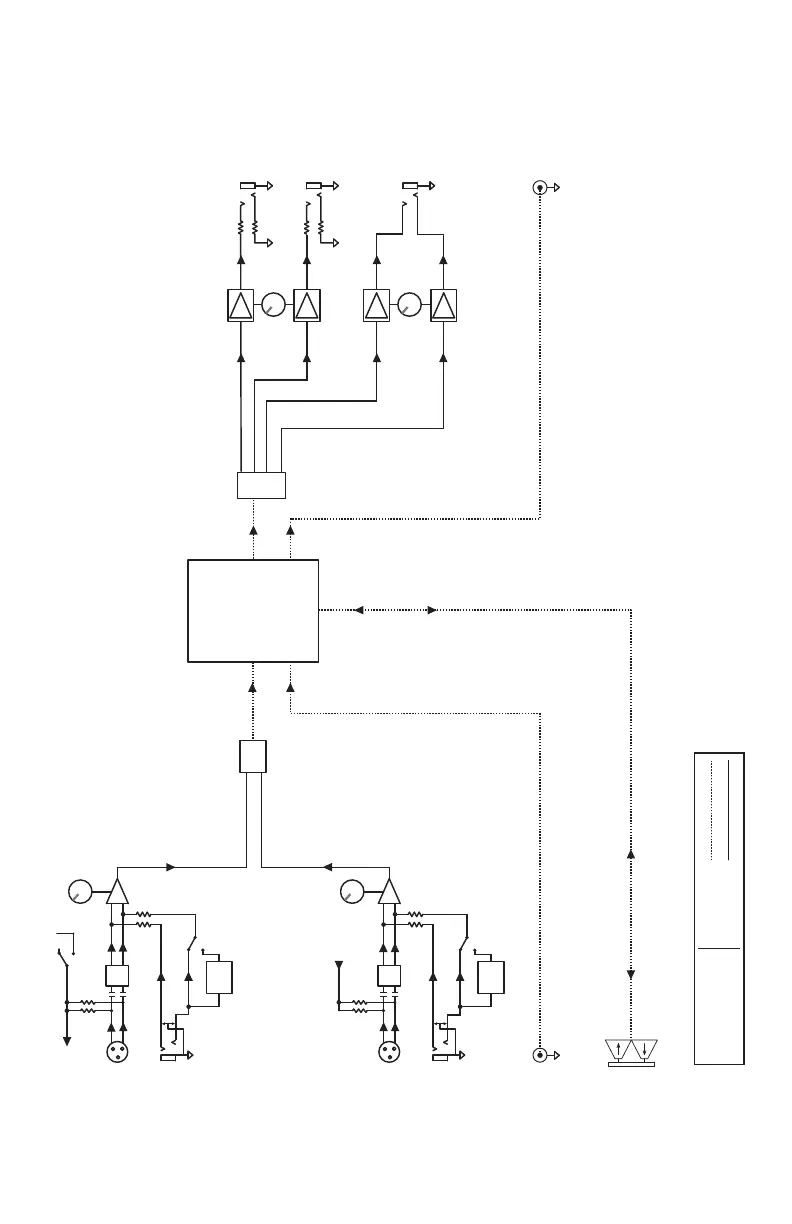

Block Diagram Link.FireWire
MICROCONTROLLER
ADC
FIREWIRE INPUT/OUTPUT (FROM COMPUTER) S/PDIF IN (2-CHANNELS)
S/PDIF OUT (2-CHANNELS)
CH 1/CH 2
INPUT
FIREWIRE
INPUT/OUTPUT
DIGITAL SIGNAL
ANALOG SIGNAL
TAPCO LINK.FIREWIRE BLOCK DIAGRAM 012507
HEADPHONE OUTPUT
MONITOR
PHONES
DAC
L
MONITOR OUTPUTS
R
CHANNEL 1
TO
CHANNEL 2
PHANTOM
MIC IN
+48 VDC
1/4" INPUT
HiZ
GAIN
CHANNEL 2
MIC IN
+48 VDC
1/4" INPUT
HiZ
GAIN
