Tapworks AD11 User And Installer Handbook

5
Please Remember – Only use tablet or pellet salt in your softener!
Installation of your water softener (cont)
FLOW RATES
The water flow must be at least 1 litre per minute for the water
softener to operate as originally designed.
Maximum flow is 53 litres per minute (peak)
UNVENTED OR COMBINATION SYSTEMS
The water softener and 22mm installation kit is compatible with
unvented or combination systems. All connections are included
for the by-pass (two 15mm reducers are included if required).
CENTRAL HEATING SYSTEMS
Central heating systems should always be treated with a suitable
corrosion inhibitor regardless of being filled with softened or
hard water.
DRAIN HOSE
With a recommended pressure of 3 bar, the maximum drain
run is 3m with a constant fall before entering an air gap.
The maximum height above the softener should be not more
than 2m before entering an air gap. It is not recommended to
discharge the waste into a pumped drain.

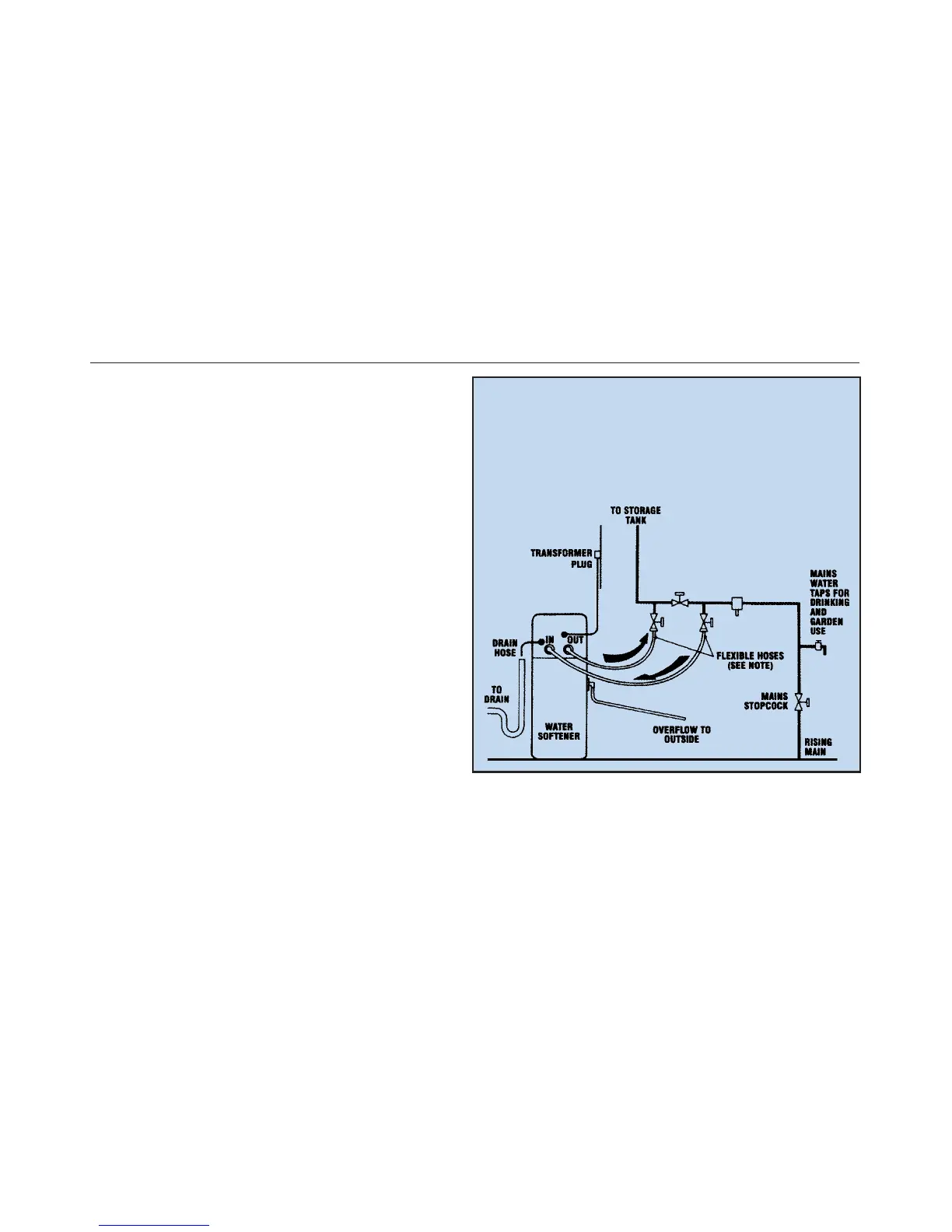

PLUMBING COMPONENTS NEEDED
The installation kit provides the basic plumbing components but
additional piping and connectors (capillary and/or compression
copper fittings) should be used as required.
A Pressure Reducing Valve (if required)
B Bypass Valve
C Inlet Valve
D Outlet Valve
E Inlet tee incorporating check valve
A
B
D C
E
