Step-by-step guide to plumbing the softener (cont)
ELECTRICAL INSTALLATION
The water softener works on a 24 volt, 50Hz electric power supply. You
must plug the transformer into a 240 volt outlet only. Be sure that the
electrical outlet you plug the transformer into is inside, as the transformer
is not designed for outdoor use.
To connect the transformer to the controller board, push the female end
plugs on to the male connectors as indicated below. The two flat ends
of the female connectors should face each other to allow for an easy
connection.

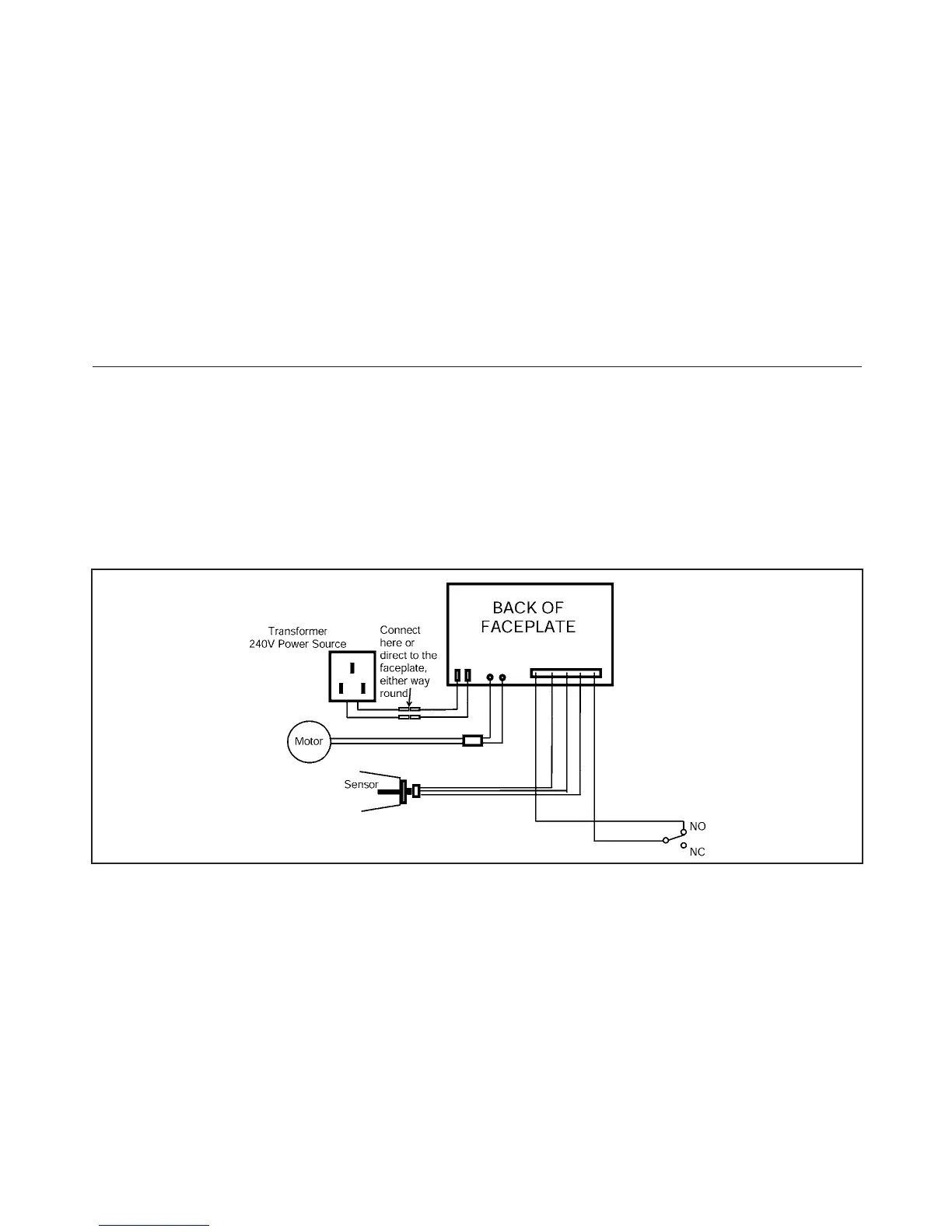

Should the faceplate fail to display or indicate an error code, please
check that the connections are as per the diagram below, you will need
to remove the valve cover to do this.
