13
BFM-505, 506, 507 Finish Mower
Assembly Cont.

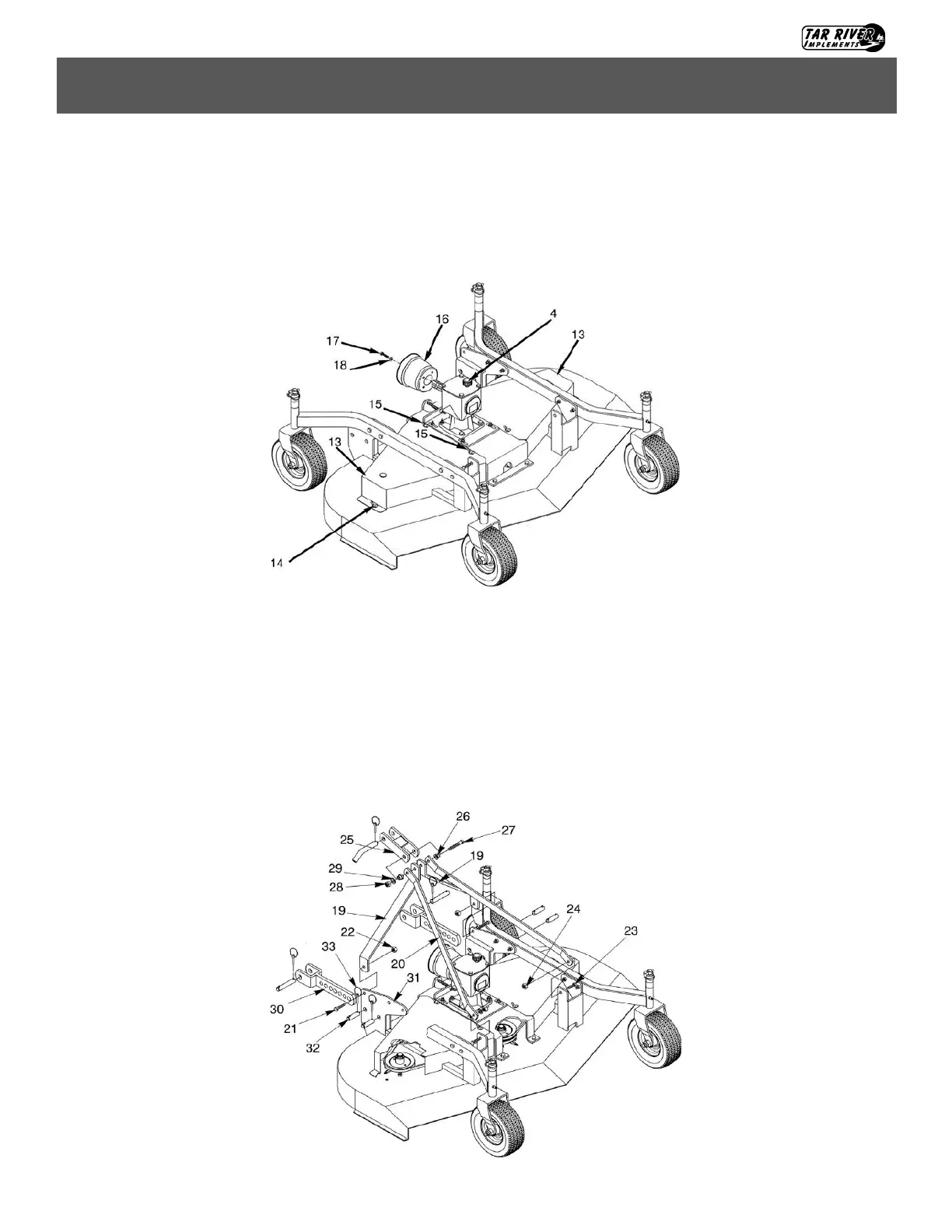

Place the covers (13) on the belts, tighten the handles on the frame (14) and on the gearbox support (15). Attach the
PTO shield (16) by means of four screws (17) and the washers (18).
Install the uprights (19) on the machine and insert the bolts (21), and relative nuts (22). Install the tie rods (20) on
the machine and insert the bolts (23), with relative nuts (24). Place the top link (25) on both tie-rods and uprights,
by inserting the spacer (26) between the top link and the tie-rods; finally tighten the screw (27) with the nut (28)
and the washer (29). Make sure that the top link turns freely on the bolt. Finally tighten the bolts (21) with the nuts
(22) and the bolts (23) with the nuts (24). Install the lower hitches (30) on the supports (31); adjust the length and
install the pins (32) anchoring them by means of the split pins (33).
Operating Instructions
