BFM-505, 506, 507 Finish Mower
Assembly

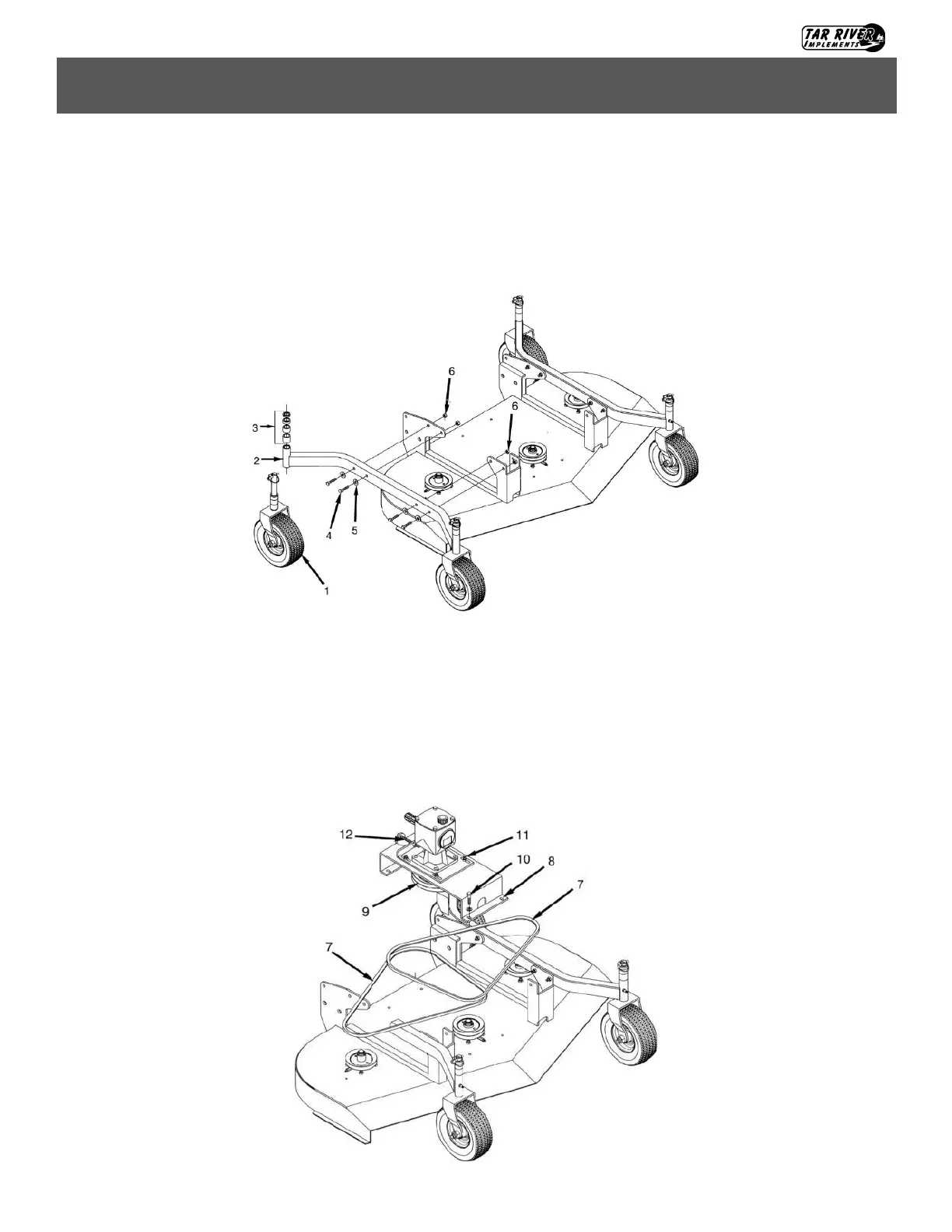

Place the wheel supports (2) on the machine frame, and tighten the four bolts (4) with washers (5) and nuts (6).
Insert the four wheels (1) in the support bushings, and adjust the cut height by means of the spacers (3).
Skip the following step if Gearbox and Belts are already assembled on mower.
Place the belts (7) onto the pulleys. Place the gearbox support (8) on the machine, insert both belts in the
gearbox pulley guides (9), and tighten the four mounting bolts (10). Loosen the screws (11) and adjust the belt
tensioning by means of the adjustment screw (12); finally tighten the four screws (11).
