15

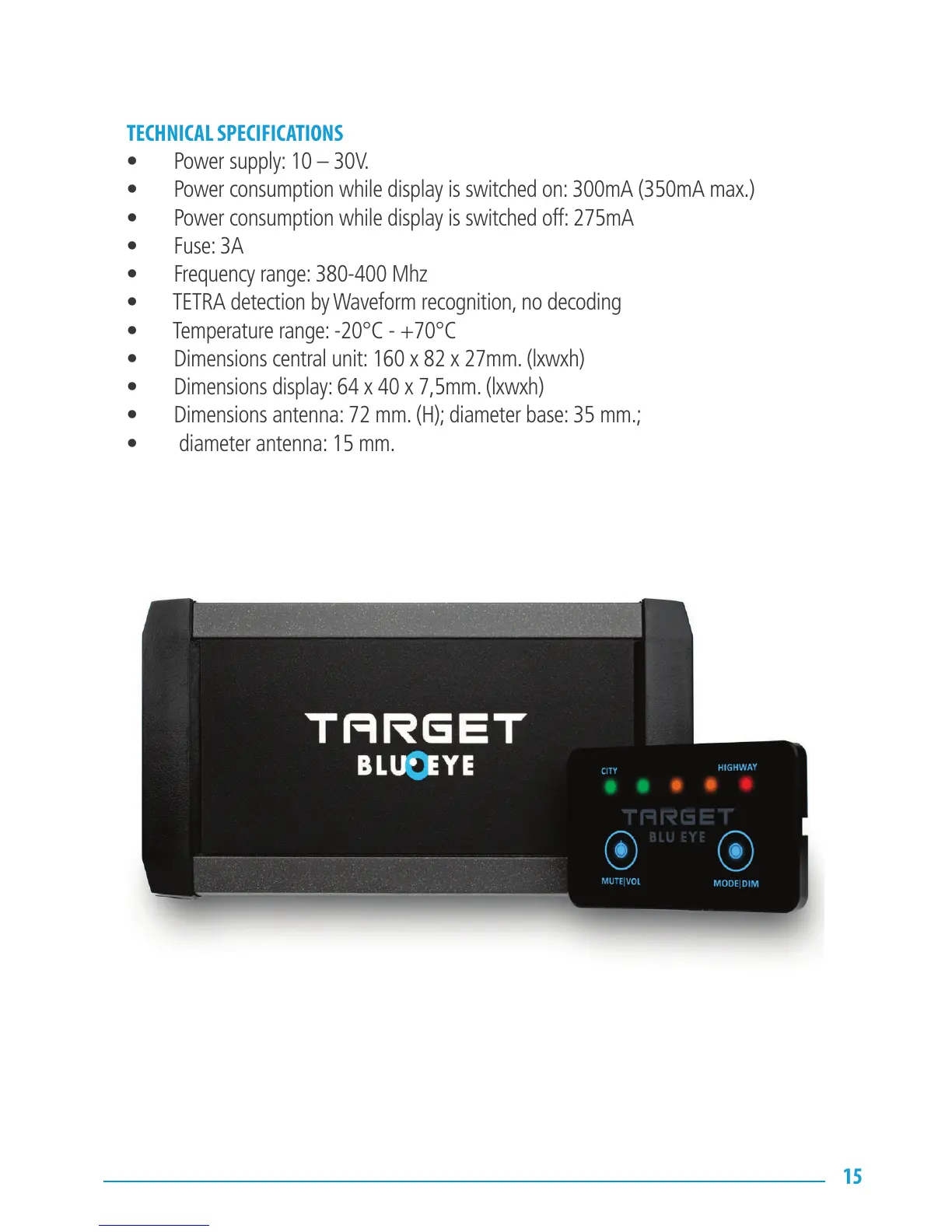

TECHNICAL SPECIFICATIONS
• Power supply: 10 – 30V.
• Power consumption while display is switched on: 300mA (350mA max.)
• Power consumption while display is switched off: 275mA
• Fuse: 3A
• Frequency range: 380-400 Mhz
• TETRA detection by Waveform recognition, no decoding
• Temperature range: -20°C - +70°C
• Dimensions central unit: 160 x 82 x 27mm. (lxwxh)
• Dimensions display: 64 x 40 x 7,5mm. (lxwxh)
• Dimensions antenna: 72 mm. (H); diameter base: 35 mm.;
• diameter antenna: 15 mm.
