12

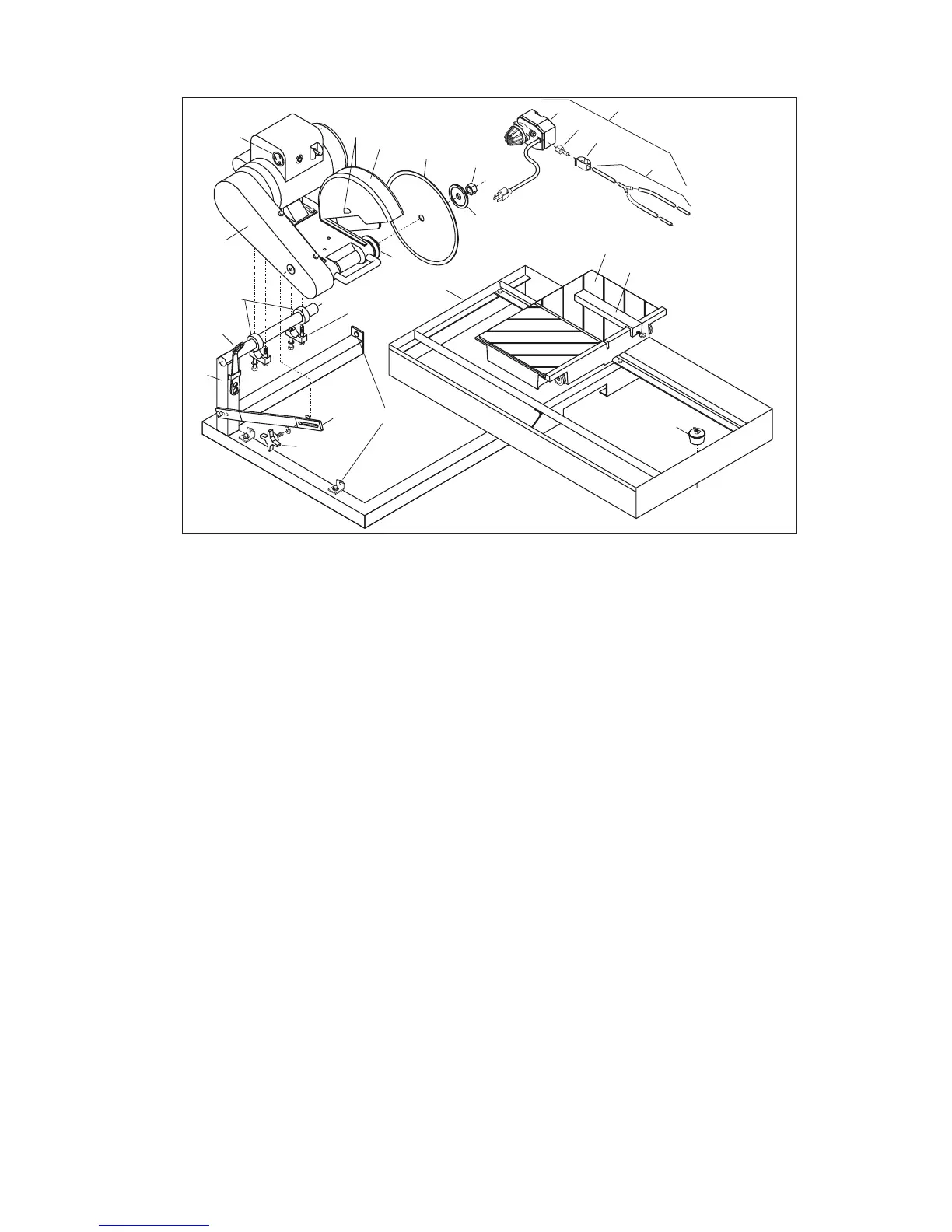

FIGURE 1
2
1
3
4
R
5
E
F
G
H
N
A
B
C
D
Q
O
I
J
K
L
M2
M1
P
A. Set Collars
B. Bearing Cap
C. Locking Knob
D. Lockbar
E. Water Pump
F. Hose Barb
G. Water Valve
H. Water Tube Assembly
I. Water Tube Ports
J. Blade Guard
K. Blade
L. Blade Shaft Nut
M1. Inner Blade Flange
M2. Outer Blade Flange
N. Wrench
O. Electrical Receptacle
P. Drain Plug
Q. Guides
R. Rip Guide
1. Cutting Head Assembly: Includes water tube as-
sembly (H)}
2. Frame Assembly
3. Water Pan Assembly
4. Conveyor Cart Assembly Carton {Cart
Assembly (4) and Rip Guide (R)}
5. Water Pump and Accessory Carton: Includes
Water Pump (E), Hose Barb (F), Water Valve (G),
15/16" Wrench (N), Drain Plug (P), Locking Knob
(C) with 5/16" Flatwashers, Bearing Caps (B) w/
5/16 Fasteners and Set Collar (A).
