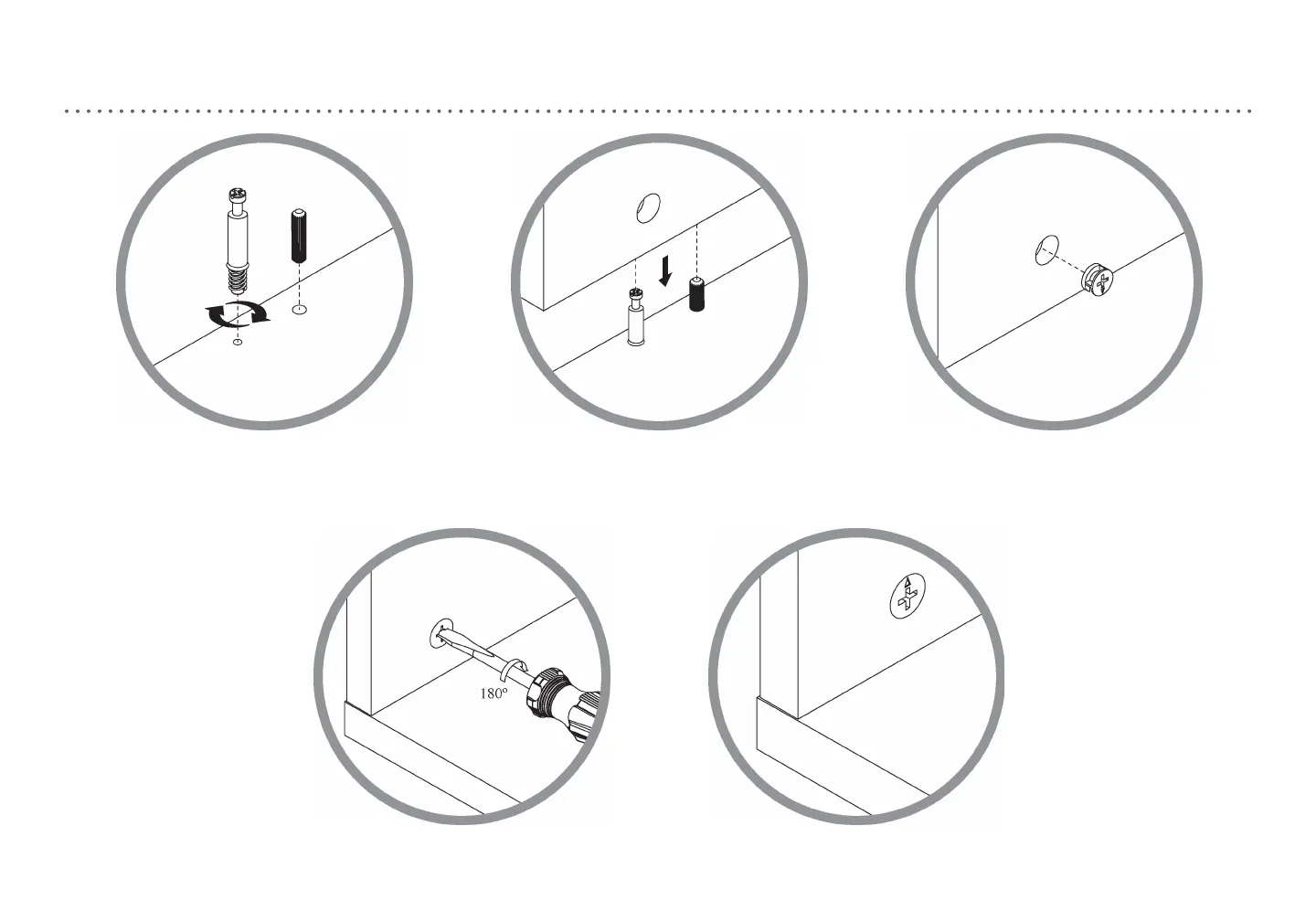

how to use the cam lock system
1.
Screw cam bolt into panel
2.
Align cam bolt(s) with cross-bored
hole(s) and insert all the way until
panels are ush
3.
Push cam into panel - arrow feature
on cam top points to panel edge
4.
Rotate cam(s) clockwise 180° to
lock panels together
5.
Panels should be tight against each
other and connection should be rigid
1.
2. 3.
4. 5.
