Target windham accent cabinet - Step 2: Attach Left Side Panel

8

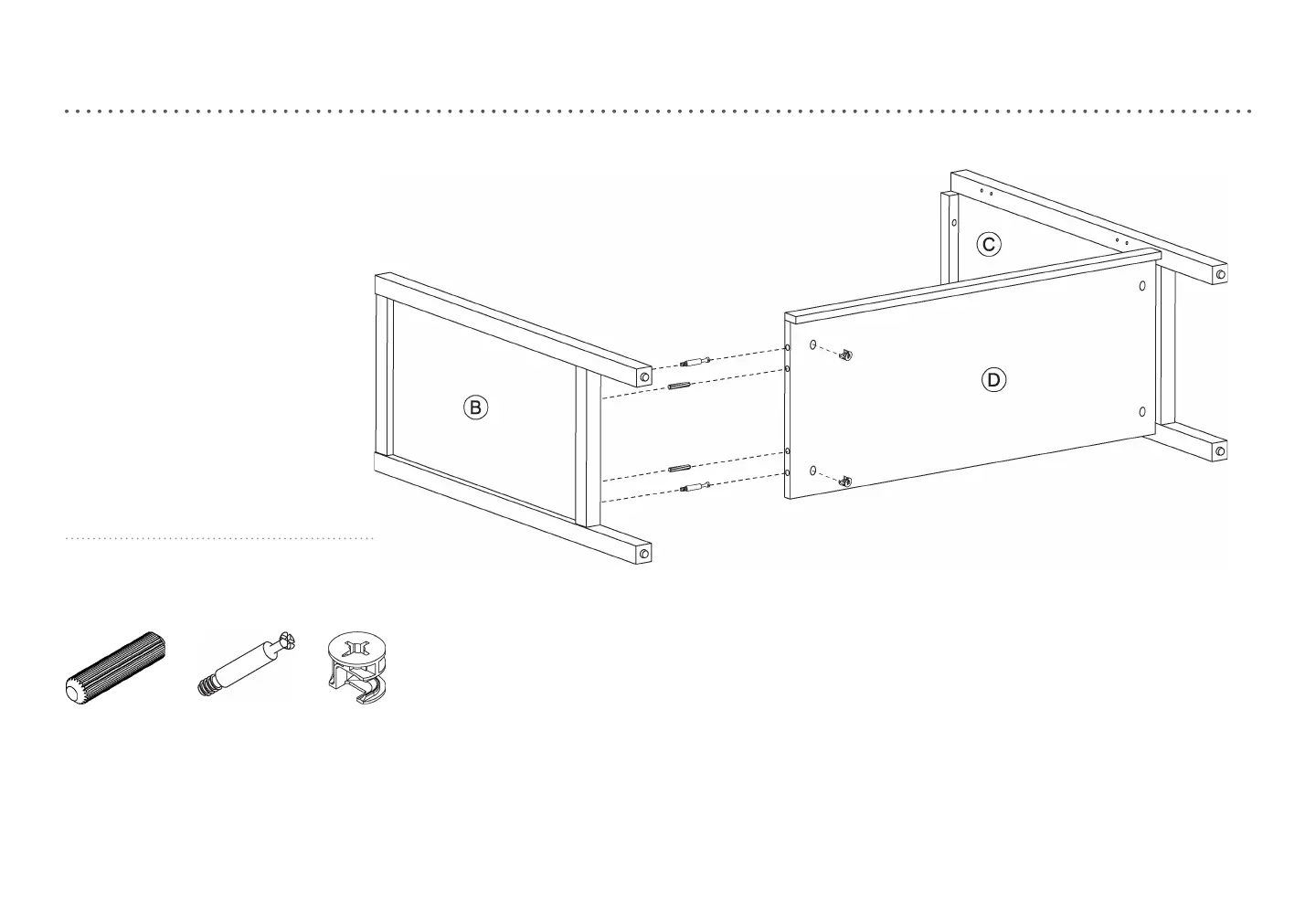

step 2: attach left side panel
(H1) x 2
wooden dowel
(H2) x 2
cam bolt
(H3) x 2
cam
2.1. Carefully tap small wooden dowels into place in left side panel. Leave 1/2” of the dowels sticking out.
2.2. Screw-In cam bolts must be screwed down ush in left side panel.
2.3. Refer to page 6 for instructions on how to use the cam lock system. Do not over tighten bolts.
