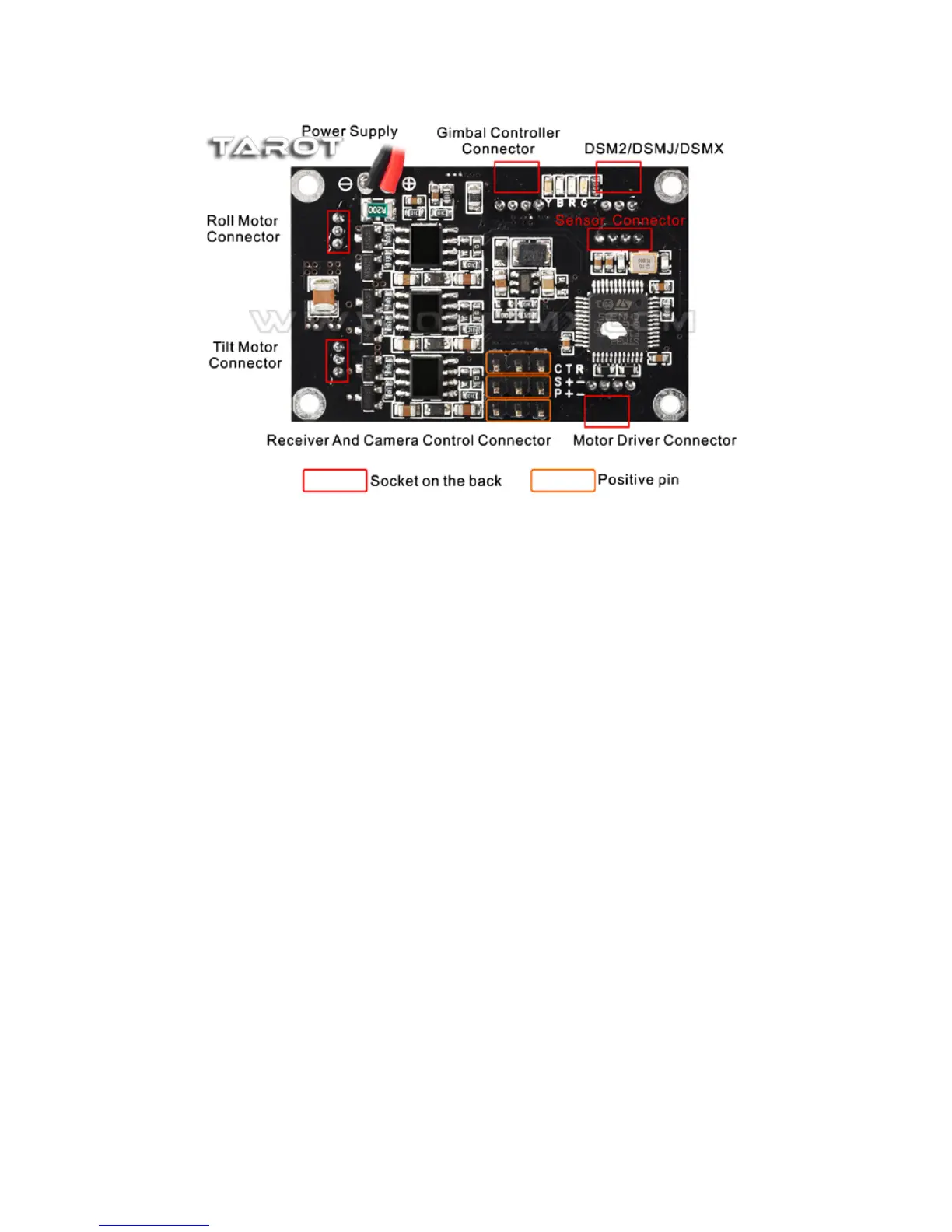

Tarot T-2D - Video Line and Connections; Power Supply Connection; Gimbal Controller Connector; Motor Driver Connector

1.Power supply：
DC 7.4V~14.8V (Li-Po 3S is Recommended)
2.Gimbal controller connector：
Via USB module connected to the computer, used to adjust the gimbal controller parameter and
status monitoring.
3.Motor driver connector：
Via USB module connected to the computer, used to adjust the motor driver module( motor
poles and power), and voltage and current monitoring.
4.Receiver and camera control connector：
R: conventional receiver roll channel input
T: conventional receiver tilt channel input
C: conventional receiver stick mode channel input (rate mode and position mode)
S: S-BUS receiver or conventional receiver camera input
P: camera control servo output (Infrared camera module can be connected)
+: 5V output
-: power ground
5.DSM2/DSMJ/DSMX：
Used to connect DSM2/DSMJ/DSMX receiver
6.Roll and tilt motor connector：
Used to connect motor
7.Sensor connector：
Used to connect sensor module
4. Video line:
