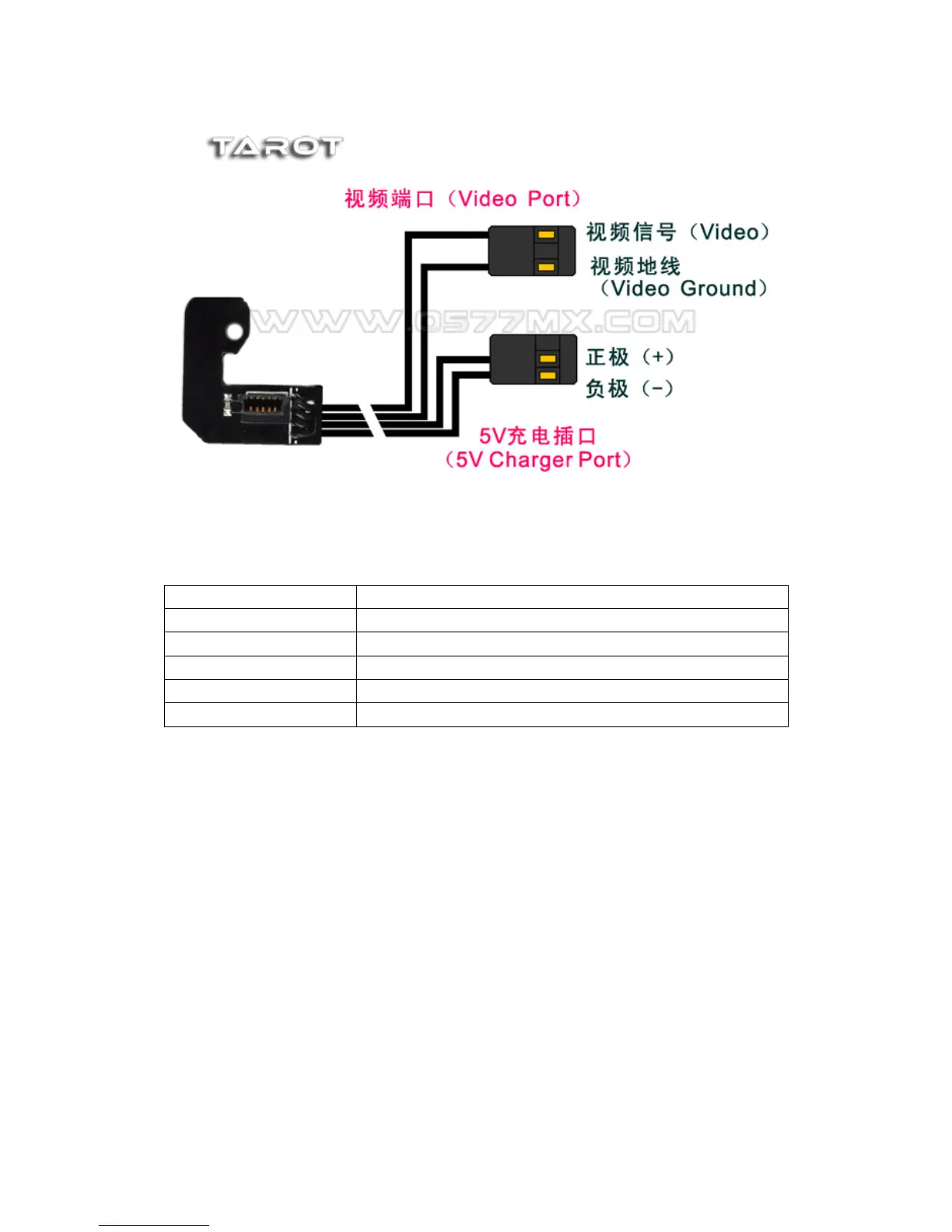

5. LED indication
Y: Yellow，B: Blue，R: Red，G: Green
Yellow blink 2 times Initialization successfully
Yellow solid Initialization not finished, keep gimbal static
Blue blink Receiver connected or PC software connected(normal)
Blue LED solid Receiver not connected(normal)
Red solid Angle out of band or error occur
Green solid
Over current，After troubleshooting, reapply power can recover
6. Protection function
Reverse power protection:
When the power is reversed, the gimbal won’t response avoiding burning the control panel,
thereby enhancing reliability.
Motor output short circuit protection function:
When the motor output is shorted motor output PTZ control panel will turn off and the green
light is lit, thereby protecting the control panel from burning. After the short troubleshooting, you
must re-power to lift the protection.
Angle overrun protection function:
When the camera angle exceeds the limit, it will automatically shut down the motor output
and the red light is lit, thereby protecting the lines laid down being wrapped broken in unexpected
situations. After the short troubleshooting, re-power or re-start the motor on the computer side,
then the gimbal can be restored.
7. Setup instruction
Brushless gimbal system uses a dual-processor solution (gimbal controller processor and
