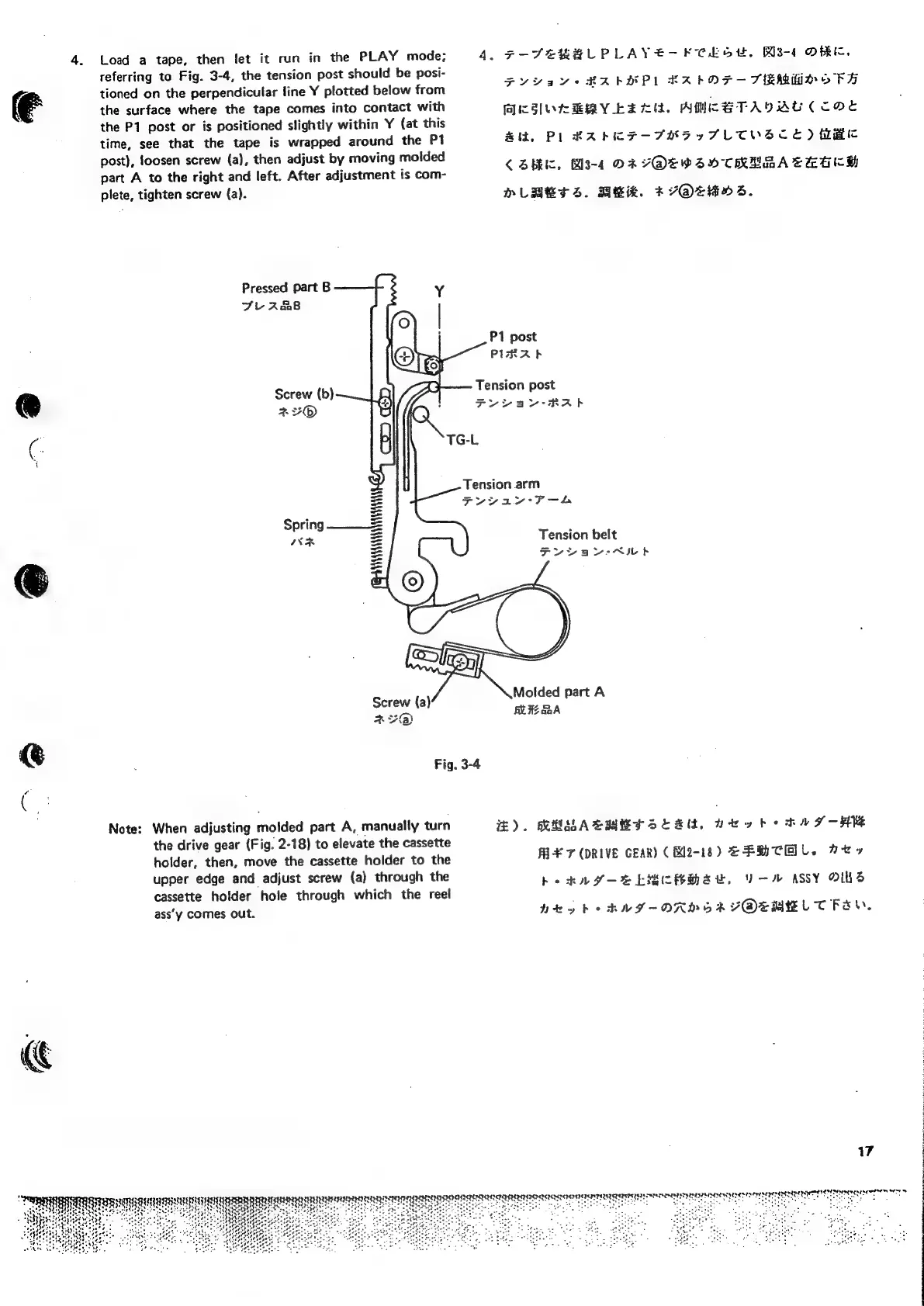

Load
a
tape,
then
let
it
run
in
the
PLAY
mode;
referring
to
Fig.
3-4,
the
tension
post
should
be
posi-
tioned
on
the
perpendicular
line
Y
plotted
below
from
the
surface
where
the
tape
comes
into
contact
with
the
P1
post
or
is
positioned
slightly
within
Y
(at
this
time,
see
that
the
tape
is
wrapped
around
the
Pt
post),
loosen
screw
(a),
then
adjust
by
moving
molded
part
A
to
the
right
and
left.
After
adjustment
is
com-
plete,
tighten
screw
(a).
Pressed part B
Fv-xzdgdB
Spring
IND
see
be
Fig. 3-4
Note:
When
adjusting
molded
part
A,
manually
turn
the
drive
gear
(Fig.
2-18)
to
elevate
the
cassette
holder,
then,
move
the
cassette
holder
to
the
upper
edge
and
adjust
screw
(a)
through
the
cassette
holder
hole
through
which
the
reel
assy
comes
out.
