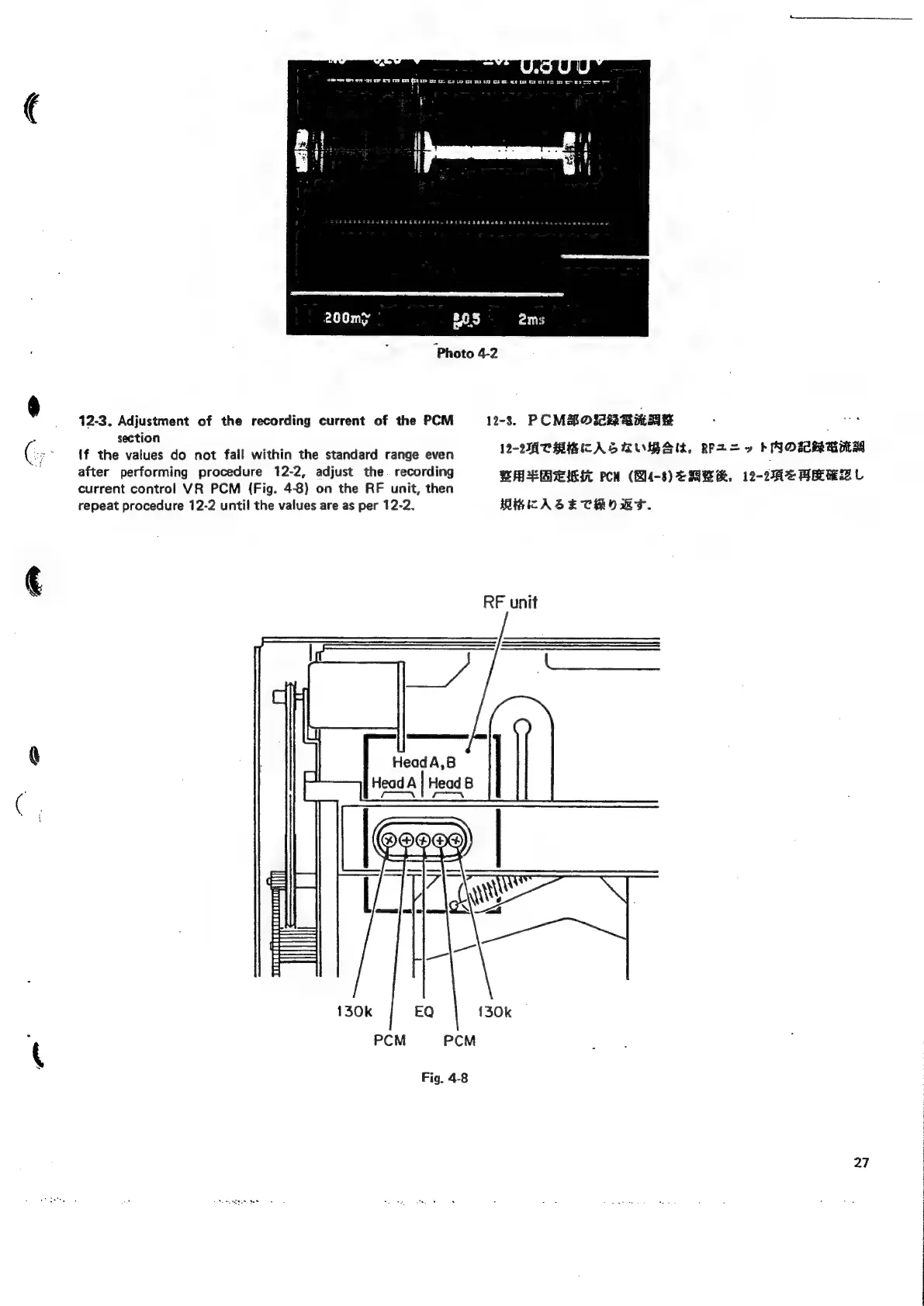

Tascam DA-30 - Page 27

Q
200my
‘Photo 4-2
12-3. Adjustment of the recording current of the PCM
section
{f the values do not fall within the standard range even
after performing procedure 12-2, adjust the. recording
current control VR PCM (Fig. 4-8) on the RF unit, then
repeat procedure 12-2 until the values are as per 12-2.
PCM PCM
Fig. 4-8
Head A,B
Head A | Head B
oN CN
12-3. P CMS oscar me aega ee |
12-2ACHIBICA SUB AI, RP2= > bAOMRABIEM
SEALERPEMEIT POM (EM-8) ERO, 12-20% FIBER L
MICA SETHORT.
RF unit
27
