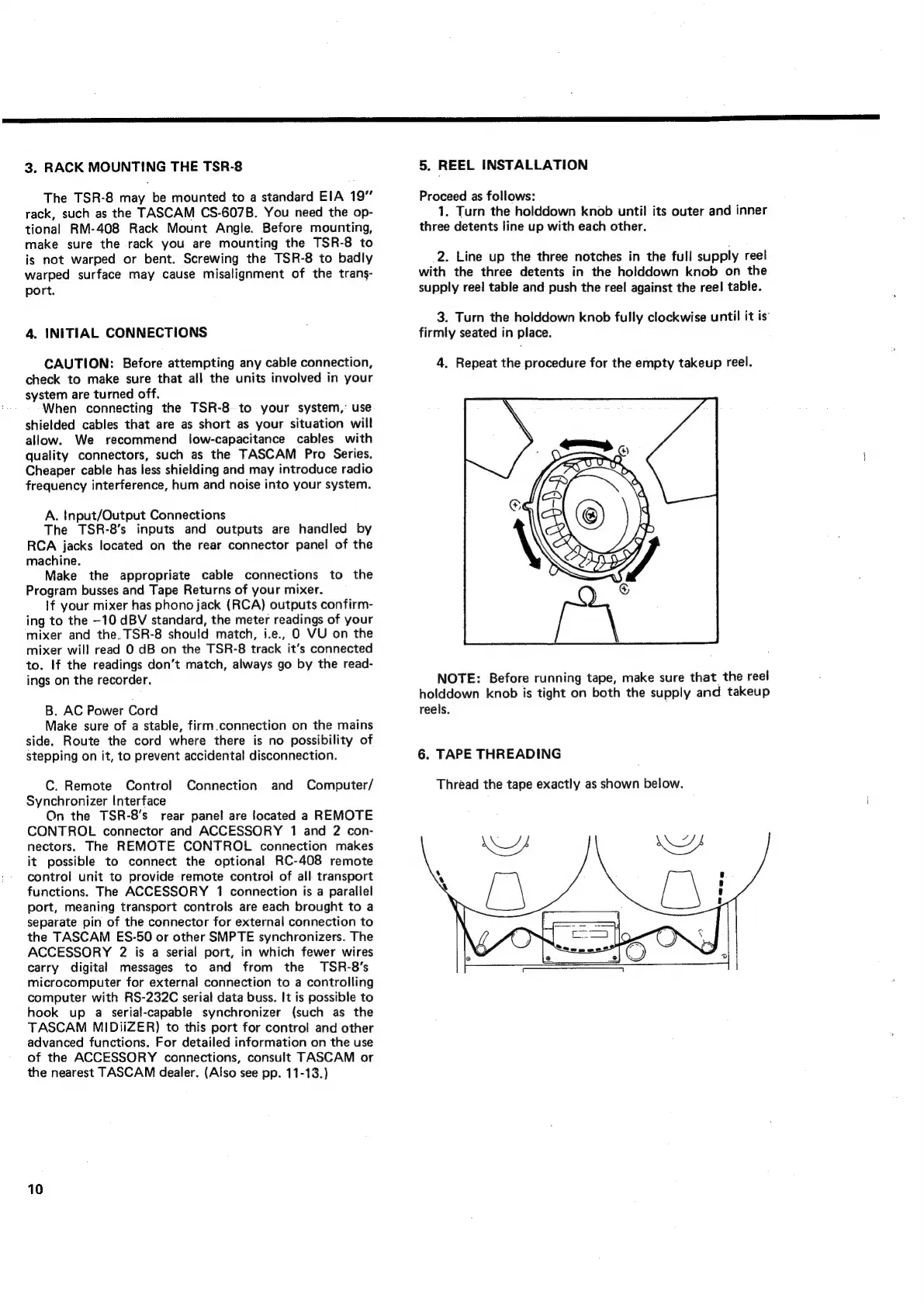

Page #10 background imageLoading...
Page #10 background image
3.
RACK
MOUNTING
THE
TSR-8
The
TSR-8
may
be
mounted
to
a
standard
EIA
19”
rack,
such
as
the
TASCAM
CS-607B.
You
need
the
op-
tional
RM-408
Rack
Mount
Angle.
Before
mounting,
make
sure
the
rack
you
are
mounting
the
TSR-8
to
is
not
warped
or
bent.
Screwing
the
TSR-8
to
badly
warped
surface
may
cause
misalignment
of
the
trans-
port.
4.
INITIAL
CONNECTIONS
CAUTION:
Before
attempting
any
cable
connection,
check
to
make
sure
that
all
the
units
involved
in
your
system
are
turned
off.
When
connecting
the
TSR-8
to
your
system,
use
shielded
cables
that
are
as
short
as
your
situation
will
allow.
We
recommend
low-capacitance
cables
with
quality
connectors,
such
as
the
TASCAM
Pro
Series.
Cheaper
cable
has
less
shielding
and
may
introduce
radio
frequency
interference,
hum
and
noise
into
your
system.
A.
Input/Output
Connections
The
TSR-8’s
inputs
and
outputs
are
handled
by
RCA
jacks
located
on
the
rear
connector
panel
of
the
machine.
Make
the
appropriate
cable
connections
to
the
Program
busses
and
Tape
Returns
of
your
mixer.
1f
your
mixer
has
phono
jack
(RCA)
outputs
confirm-
ing
to
the
-10
dBV
standard,
the
meter
readings
of
your
mixer
and
the.
TSR-8
should
match,
i.e.,
0
VU
on
the
mixer
will
read
O
dB
on
the
TSR-8
track
it’s
connected
to.
If
the
readings
don’t
match,
always
go
by
the
read-
ings
on
the
recorder.
B.
AC
Power
Cord
Make
sure
of
a
stable,
firm.connection
on
the
mains
side.
Route
the
cord
where
there
is
no
possibility
of
stepping
on
it,
to
prevent
accidental
disconnection.
C.
Remote
Control
Connection
and
Computer/
Synchronizer
Interface
On
the
TSR-8's
rear
pane!
are
located
a
REMOTE
CONTROL
connector
and
ACCESSORY
1
and
2
con-
nectors.
The
REMOTE
CONTROL
connection
makes
it
possible
to
connect
the
optional
RC-408
remote
control
unit
to
provide
remote
control
of
all
transport
functions.
The
ACCESSORY
1
connection
is
a
parallel
port,
meaning
transport
controls
are
each
brought
to
a
separate
pin
of
the
connector
for
external
connection
to
the
TASCAM
ES-50
or
other
SMPTE
synchronizers.
The
ACCESSORY
2
is
a
serial
port,
in
which
fewer
wires
carry
digital
messages
to
and
from
the
TSR-8’s
microcomputer
for
external
connection
to
a
controlling
computer
with
RS-232C
serial
data
buss.
It
is
possible
to
hook
up
a
serial-capable
synchronizer
(such
as
the
TASCAM
MIDiiZER)
to
this
port
for
control
and
other
advanced
functions.
For
detailed
information
on
the
use
of
the
ACCESSORY
connections,
consult
TASCAM
or
the
nearest
TASCAM
dealer.
(Also
see
pp.
11-13.)
10
5.
REEL
INSTALLATION
Proceed
as
follows:
1.
Turn
the
holddown
knob
until
its
outer
and
inner
three
detents
line
up
with each
other.
2.
Line
up
the
three
notches
in
the
full
supply
reel
with
the
three
detents
in
the
holddown
knob
on
the
supply
reel
table
and
push
the
reel
against
the
reel
table.
3.
Turn
the
holddown
knob
fully
clockwise
until
it
is’
firmly
seated
in
place.
4.
Repeat
the
procedure
for
the
empty
takeup
reel.
NOTE:
Before
running
tape,
make
sure
that
the
reel
holddown
knob
is
tight
on
both
the
supply
and
takeup
reels.
6.
TAPE
THREADING
Thread
the
tape
exactly
as
shown
below.
