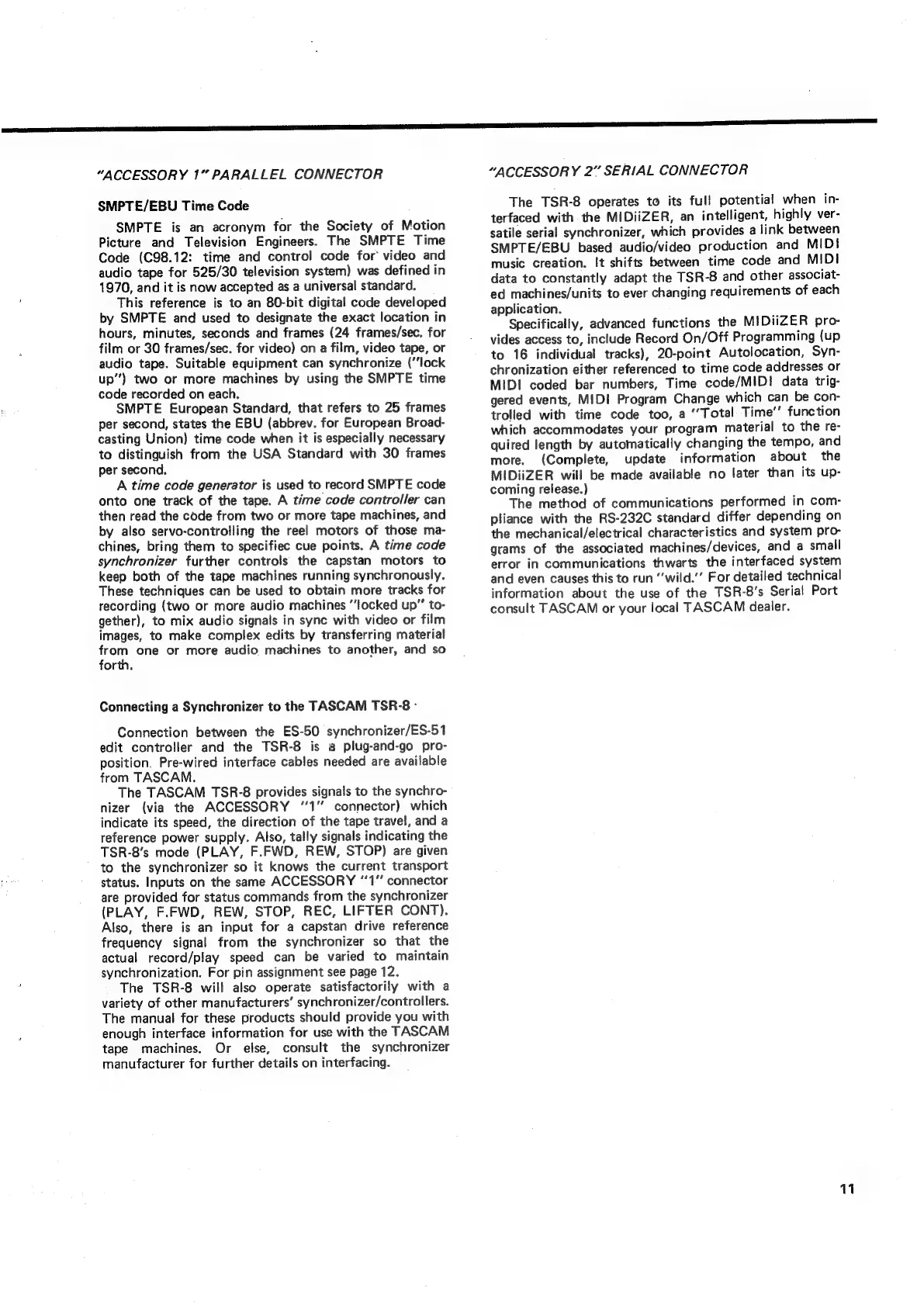

“ACCESSORY
1”
PARALLEL
CONNECTOR
SMPTE/EBU
Time
Code
SMPTE
is
an
acronym
for
the
Society
of
Motion
and
Television
Engineers.
The
SMPTE
Time
Code
(C98.12:
time
and
control
code
for
video
and
audio
tape
for
525/30
television
system)
was
defined
in
1970,
and
it
is
now
accepted
as
a
universal
standard.
This
reference
is
to
an
80-bit
digital
code
developed
by
SMPTE
and
used
to
designate
the
exact
location
in
hours,
minutes,
seconds
and
frames
(24
frames/sec.
for
film
or
30
frames/sec.
for
video)
on
a
film,
video
tape,
or
audio
tape.
Suitable
equipment
can
synchronize
("lock
up”)
two
or
more
machines
by
using
the
SMPTE
time
code
recorded
on
each.
SMPTE.
European
Standard,
that
refers
to
25
frames
per
second,
states
the
EBU
(abbrev.
for
European
Broad-
casting
Union)
time
code
when
it
is
especially
necessary
to
distinguish
from
the
USA
Standard
with
30
frames
per
second.
A
time
code
generator
is
used
to
record
SMPTE
code
onto
one
track
of
the
tape.
A
time
code
controller
can
then
read
the
code
from
two
or
more
tape
machines,
and
by
also
servo-controlling
the
reel
motors
of
those
ma-
chines,
bring
them
to
specifiec
cue
points.
A
time
code
synchronizer
further
controls
the
capstan
motors
to
keep
both
of
the
tape
machines
running
synchronously.
These
techniques
can
be
used
to
obtain
more
tracks
for
recording
(two
or
more
audio
machines
“locked
up”
to-
gether),
to
mix
audio
signals
in
sync
with
video
or
film
images,
to
make
complex
edits
by
transferring
material
from
one
or
more
audio
machines
to
another,
and
so
forth.
Connecting
a
Synchronizer
to
the
TASCAM
TSR°8
-
Connection
between
the
ES-50
synchronizer/ES-51
edit
controller
and
the
TSR-8
is
a
plug-and-go
pro-
position.
Pre-wired
interface
cables
needed
are
available
from
TASCAM.
The
TASCAM
TSR-8
provides
signals
to
the
synchro-
nizer
(via
the
ACCESSORY
“1”
connector)
which
indicate
its
speed,
the
direction
of
the
tape
travel,
and
a
reference
power
supply.
Also,
tally
signals
indicating
the
TSR-8’s
mode
(PLAY,
F.FWD,
REW,
STOP)
are
given
to
the
synchronizer
so
it
knows
the
current
transport
status.
Inputs
on
the
same
ACCESSORY
‘‘1”’
connector
are
provided
for
status
commands
from
the
synchronizer
(PLAY,
F.FWD,
REW,
STOP,
REC,
LIFTER
CONT).
Also,
there
is
an
input
for
a
capstan
drive
reference
frequency
signal
from
the
synchronizer
so
that
the
actual
record/play
speed
can
be
varied
to
maintain
synchronization.
For
pin
assignment
see
page
12.
The
TSR-8
will
also
operate
satisfactorily
with
a
variety
of
other
manufacturers’
synchronizer/controllers.
The
manual
for
these
products
should
provide
you
with
enough
interface
information
for
use
with
the
TASCAM
tape
machines.
Or
else,
consult
the
synchronizer
manufacturer
for
further
details
on
interfacing.
EE
“ACCESSORY
2”
SERIAL
CONNECTOR
The
TSR-8
operates
to
its
full
potential
when
in-
terfaced
with
the
MIDiiZER,
an
intelligent,
highly
ver-
satile
serial
synchronizer,
which
provides
a
link
between
SMPTE/EBU
based
audio/video
production
and
MIDI
music
creation.
It
shifts
between
time
code
and
MIDI
data
to
constantly
adapt
the
TSR-8
and
other
associat-
ed
machines/units
to
ever
changing
requirements
of
each
application.
Specifically,
advanced
functions
the
MIDiiZER
pro-
vides
access
to,
include
Record
On/Off
Programming
(up
to
16
individual
tracks),
20-point
Autolocation,
Syn-
chronization
either
referenced
to
time
code
addresses
or
MID!
coded
bar
numbers,
Time
code/MID!
data
trig-
gered
events,
MIDI
Program
Change
which
can
be
con-
trolled
with
time
code
too,
a
Total
Time’’
function
which
accommodates
your
program
material
to
the
re-
quired
length
by
automatically
changing
the
tempo,
and
more.
(Complete,
update
information
about
the
MIDiiZER
will
be
made
available
no
later
than
its
up-
coming
release.)
The
method
of
communications
performed
in
com-
pliance
with
the
RS-232C
standard
differ
depending
on
the
mechanical/electrical
characteristics
and
system
pro-
grams
of
the
associated
machines/devices,
and
a
small
error
in
communications
thwarts
the
interfaced
system
and
even
causes
this
to
run
“wild.”
For
detailed
technical
information
about
the
use
of
the
TSR-8’s
Seria!
Port
consult
TASCAM
or
your
local
TASCAM
dealer.
11
